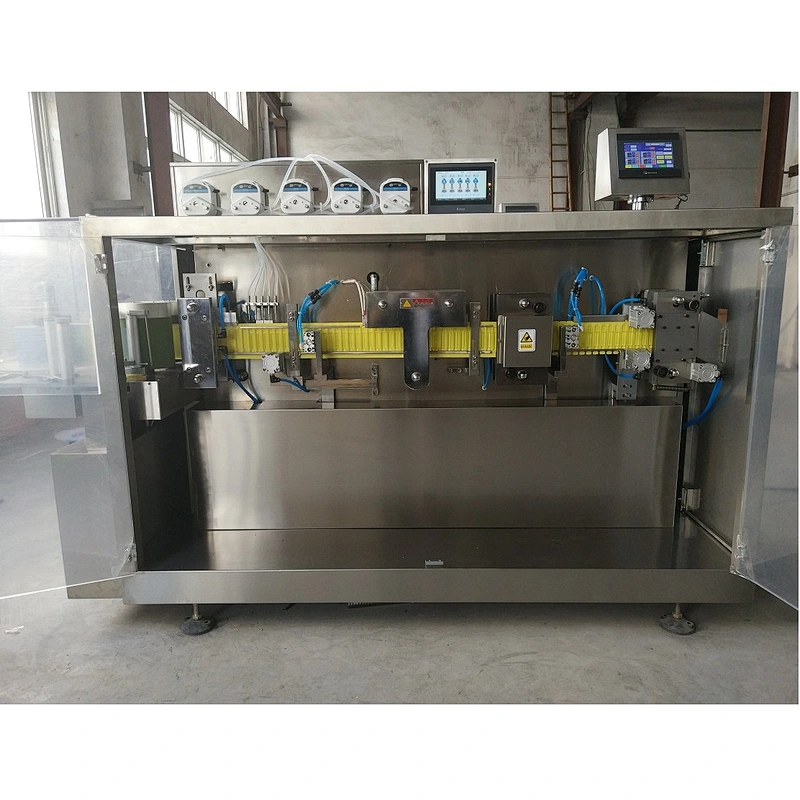

DGS-240P5 Automatic ampoule forming filling sealing machine

Model NO.
DGS-240P5
Minimum order quantity:
1
Quantity:
The plastic ampoule filling and sealing machine is suitable for the unit dose of medicine, drinks, dairy products, health products, food, cosmetics, perfume, agricultural medicine, fruit purees, etc.

Features:
1. The plastic ampoule filling and sealing machine is high speed and high precision high-end motion controller.
2.Stepless frequency control of motor speed control.
3.The plastic ampoule filling and sealing machine adopt servo motor control tensile membrane device.
4.Automatic discharge volume, a roll of film cutting, can be folded in half.
5.There are positive and negative photoelectric pattern of version of the function. Products elegant, meet high standards of packaging requirements.
6.The plastic ampoule filling and sealing machine using electronic peristaltic pump device. And mechanical pump piston pump control. Filling accuracy is correct.
7.Filling does not drip, no bubble, no overflow.
8.At the bottom of the bottle is flat, could stand.
9.The plastic ampoule filling and sealing machine automatic stop when each door opening.



Technical parameters


Model

DGS-118P5

DGS-240P5

Max forming depth

16mm

12mm

Cutting frequency

0-25 times/min

Packing material

PET/PE, PVC/PE

Packing roll

Two rolls

One roll

Filling volume

1-50ml

1-100ml

Filling head

5 heads

Power

7kw

Voltage

220v-380v/50Hz

Weight

900kg

1000Kg

Outer Size L×W×H

2300×850×1500(mm)

3380×950×1800(mm)
