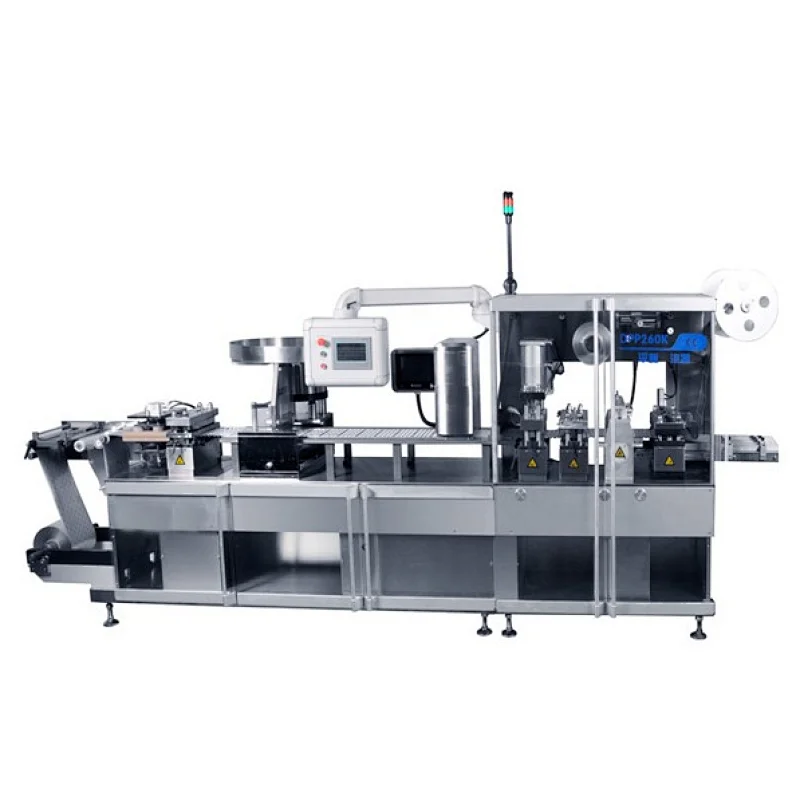

DPP-260 Blister Packing Machine Operator Jobs is our advanced equipment designed under updated improvement. Adopts of the integral technology applying frequency inverter for speed control and mechanism, electricity, light and air to machine. The Blister Packing Machine Operator Jobs design is in strict compliance with GMP standard and takes lead in the blister packer’s filed. Featuring advanced functions, simple operation, high output, and it is ideal packing equipment for large and medium size pharmaceutical enterprises, health food and food stuff plant. The Blister Packing Machine Operator Jobs for alu alu blister and alu pvc blister.
Feature：
1. The Blister Packing Machine Operator Jobs adopts the keyway positioning, adjustable quick-opening clamping handle. When Forming die and heat sealing die installation, replace mould is very simple.
2. After punching medicine blister (finished products) used plunger, auxiliary material, every time to ensure that Blister Packing Machine Operator Jobs cutting medicine edition can smooth discharge, eliminate the operation personnel safety hidden trouble.
3. The total length of Blister Packing Machine Operator Jobs is 4.35m, working platform is extended edition, operation more smoothly.
4. The Blister Packing Machine Operator Jobs using manipulator clamping feeding mechanism: distance of travel from (40-120 - mm) arbitrary adjustable, can be adjustable to 170 mm, is within the scope of the optional design the section size. Servo traction: distance of travel can be adjustable from 20 to 250 - mm), within the scope of the optional design the section size. Good stability, high accuracy, convenient operation, can be directly in touch screen to adjust, convenient and good operation. Space can be accessories operating.
5. The Blister Packing Machine Operator Jobs can option two feeders: filling rate can reach more than 99%, and eliminates filling missing phenomenon. caused by the aliens and the high-speed operation.
6. The Blister Packing Machine Operator Jobs has good mechanical properties, smooth transmission, low precision, low noise, no obvious vibration and abnormal thermal deformation.
7. The Blister Packing Machine Operator Jobs contact parts material meet the GMP requirement, non-contact parts is using 304 stainless steel, hot sealing and punching station adopts the plexiglas to protect, which is easy to observe and safe for operators.
8. The Blister Packing Machine Operator Jobs with the function like electronic counting, batch number, creasing and cutting, punching and automatic shutdown alarm etc function.
9. The Blister Packing Machine Operator Jobs can option two type plexiglas over as budget.Technical parameters
Max. Punch Speed | AL/PL:40-60 times/min(stand type) |
AL/AL:20-40 times/min |
| |
Max. Production Capacity | AL/PL:350 thous. /h |
AL/AL:150 thous. /h |
| |
Adjustable range of stroke | Standard dispose≤120mm(according to the customers′ Requirement) |
| |
Max. Forming Area | 245x112 mm |
| |
Max. Forming Depth | AL/PL:14 mm |
AL/AL:14 mm |
| |
Specification of packaging material | Note：the width of the material 130-260mm | Medicine PVC:260x0.25(0.15-0.5) mm |
Heat-sealing PTP:260x0.02 mm |
| |
Power Connection | There Phases Four Wires:
380V 50Hz (220V 60Hz) |
| |
Total Power | 6.4KW |
| |
Main Motor Power | 2.2 KW |
| |
Forming Upper and Lower Heat power | 1.5 KW(x2) |
| |
Heat-sealing Heat Power | 1.2 KW |
| |
Air Pump(Air Compressor)Volume | ≥0.38 m3/min |
| |
Dimensions of overall machine(L×W×H) | 3940x720x1580mm |
| |
Dimensions of packing case(L×W×H) | 4100x880x1740mm |
| |
Dimensions of separate packing cases(L×W×H) | 2000x880x1740mm and 1550x880x1740 |
| |
Weight | 1800 kg |
