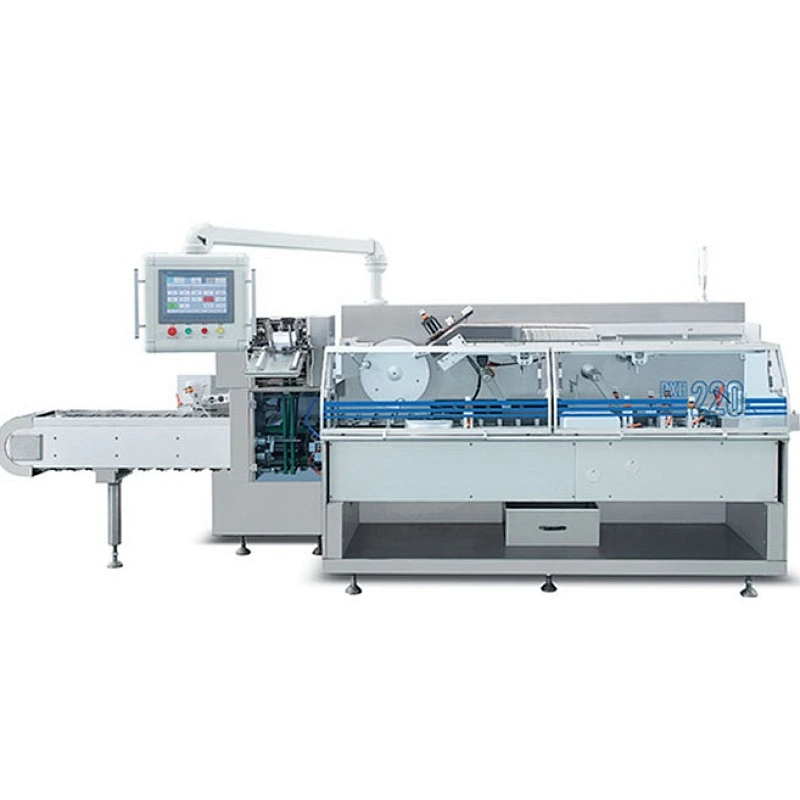

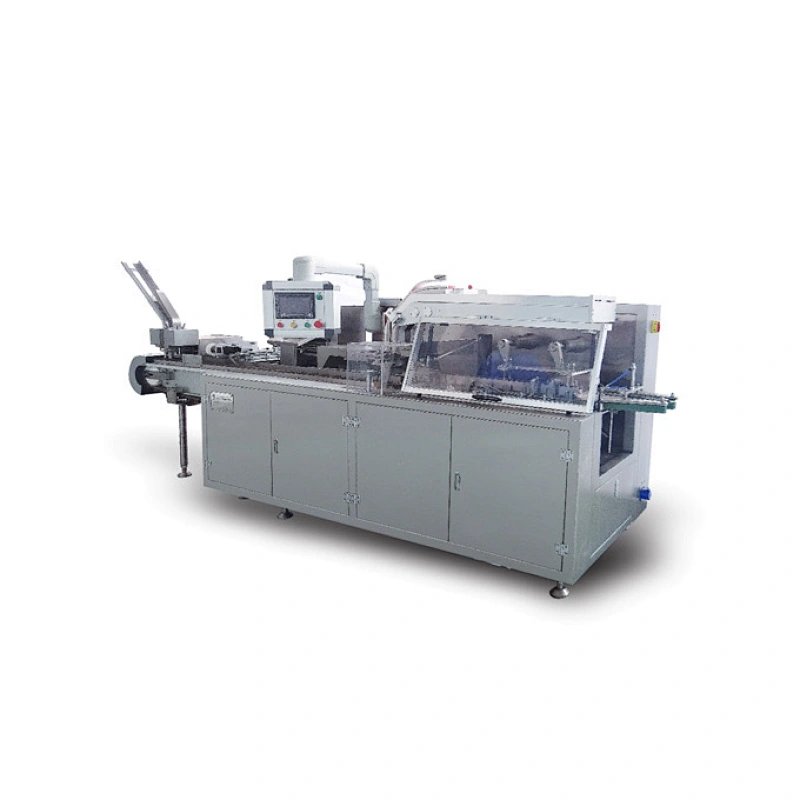

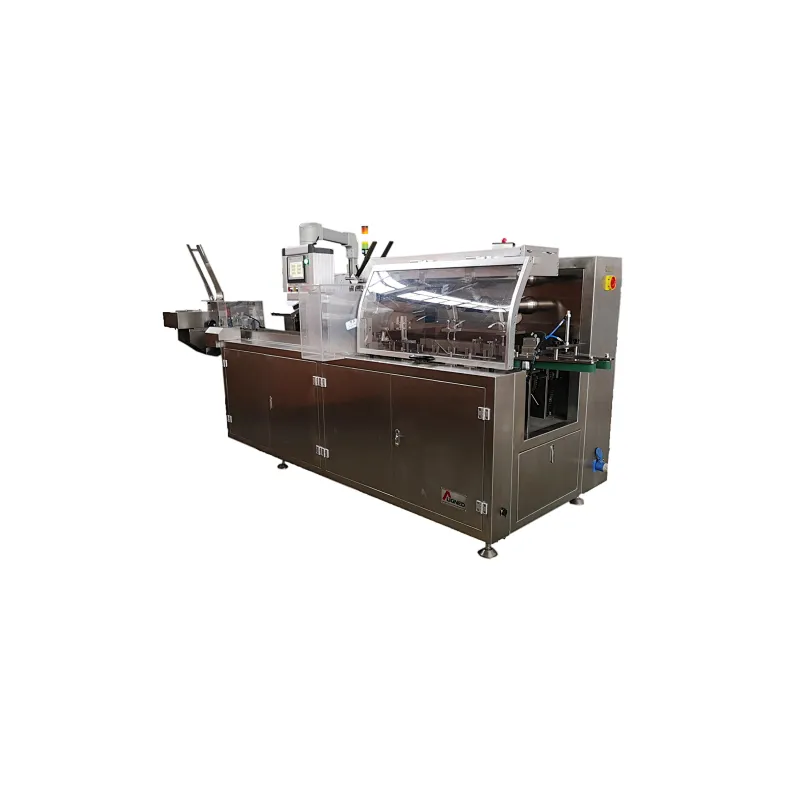

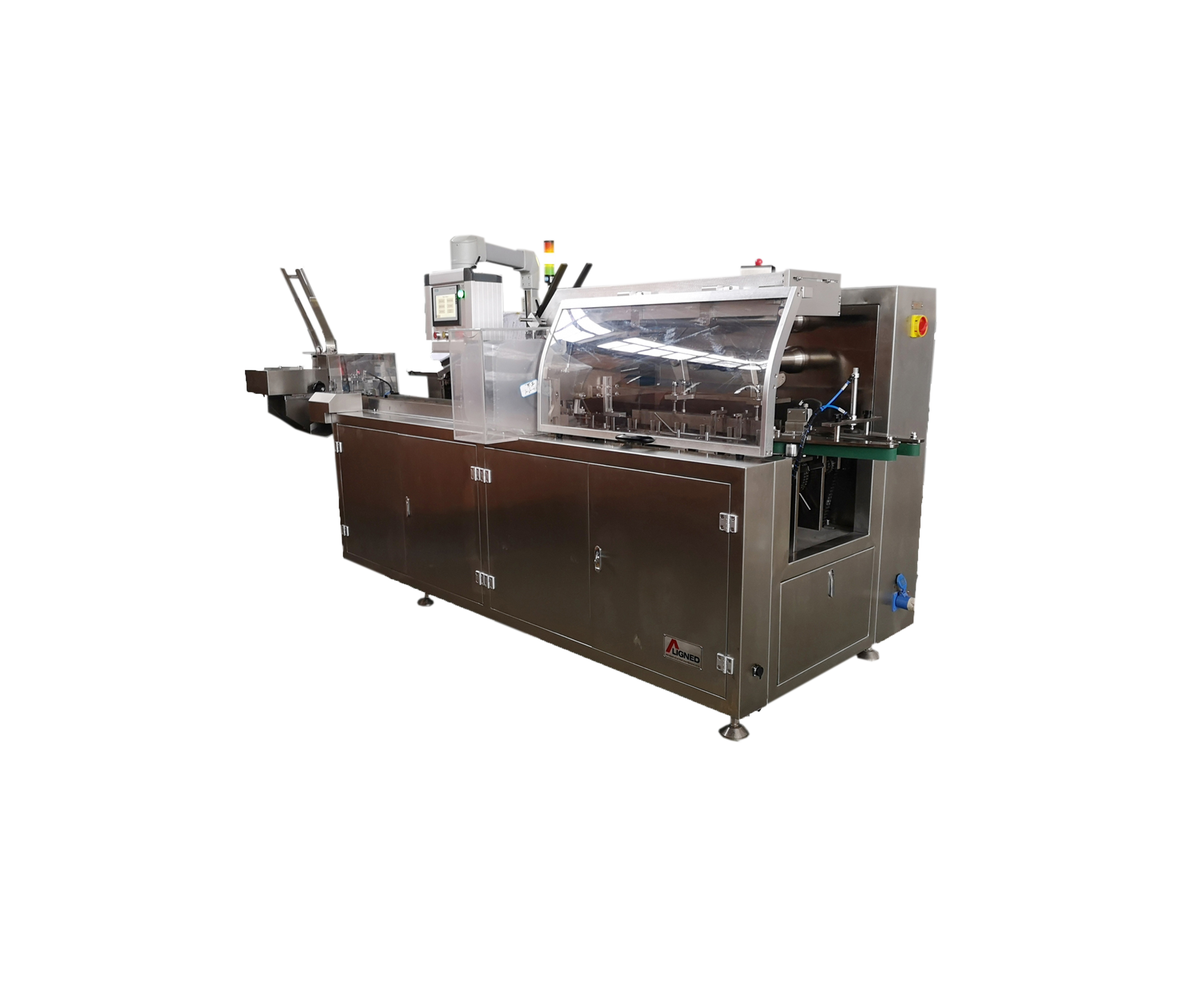

DXH Series Automatic Cartoning Machine

Model NO.
DXH Series
Quantity:

DXH automatic cartoning machine is set light, electricity, gas, machine integration of high-tech products. Applicable to capsules, tablets blister forming, outer packaging is Alu-PVC blister, bottle shaped, ointment, and similar items of automatic cartoning. The working process of the medicine blister or goods transfer (a time one blister and multi blister adjustable); drug leaflet transmitted (1-4 fold automatic fold feeder); automatic cartoning machine distraction and transmission, medicine blister joint folded good specifications and carton boxes; and complete the automatic batch number, at both ends of the paper plug sealing complex packaging process. The automatic cartoning machine is used in all high-quality stainless steel cover panel enclosed by glass doors and windows, in strict accordance with the pharmaceutical industry"GMP"standard for innovative design. The transmission part of the automatic cartoning machine designed overload protection function, and set up the emergency stop device, control system adopts the man-machine interface screen, ensure the safety of the operator.

The automatic cartoning machine can connect with blister machine,liquid filling ling and counting line etc.

Function:
1.The automatic cartoning machine no product does not feeding leaflet, no leaflet do not feeding carton.
2.The automatic cartoning machine no product or product supply is not in place when the machine is idle without pushing products, when product recovery supply machine automatically work, product into the box does not reach the designated position automatic shutdown;
3.The automatic cartoning machine no carton automatic shutdown, continuous without leaflet automatic shutdown;
4. The automatic cartoning machine automatic display box speed and counting.

Technical parameters

Model

DXH-130

DXH-220

Cartoning Speed

40-100 boxes/min

140~180 boxes/min

Box

Quality Requirement

250~350g/㎡ (according to the dimensions to confirm)

250~350g/㎡ (according to the dimensions to confirm)

Dimension Range
(L×W×H)

(70-180)mm×(30-85)mm×(14-50)mm

(70-200)mm×(50-120)mm×(14-70)mm

Leaflet

Quality Requirement

60-70 g/㎡

60-70 g/㎡

Unfolded Leaflet Specification
(L×W)

(80-250)㎜×(90-170)mm

(80-260)*(90-190)mm

Fold Range
(L×W)

1-4 Fold

1-4 Fold

Compressed Air

Working Pressure

≥0.6mpa

≥0.6mpa

Air Consumption

120-160L/min

120-160L/min

Power Supply

380V/220V 50HZ

380V/220V 50HZ

Main Motor Power

0.75kw

0.75kw

Machine Dimension(L×W×H)

3100mm×1100mm×1550mm(around)

4035mm×1460mm×1730mm (around)

Machine Weight

About 1400kg

About 3000kg
