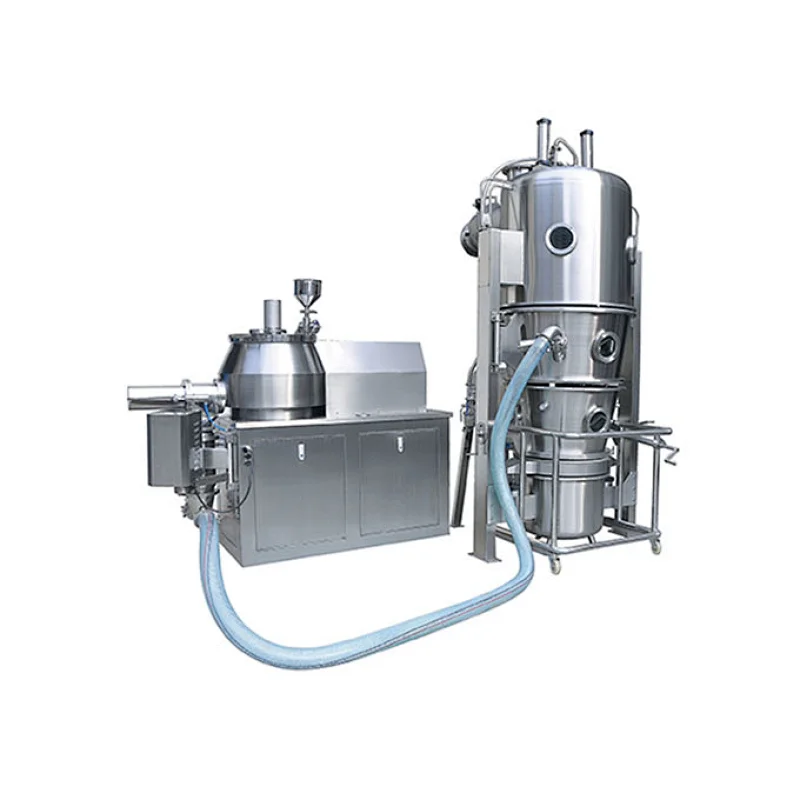

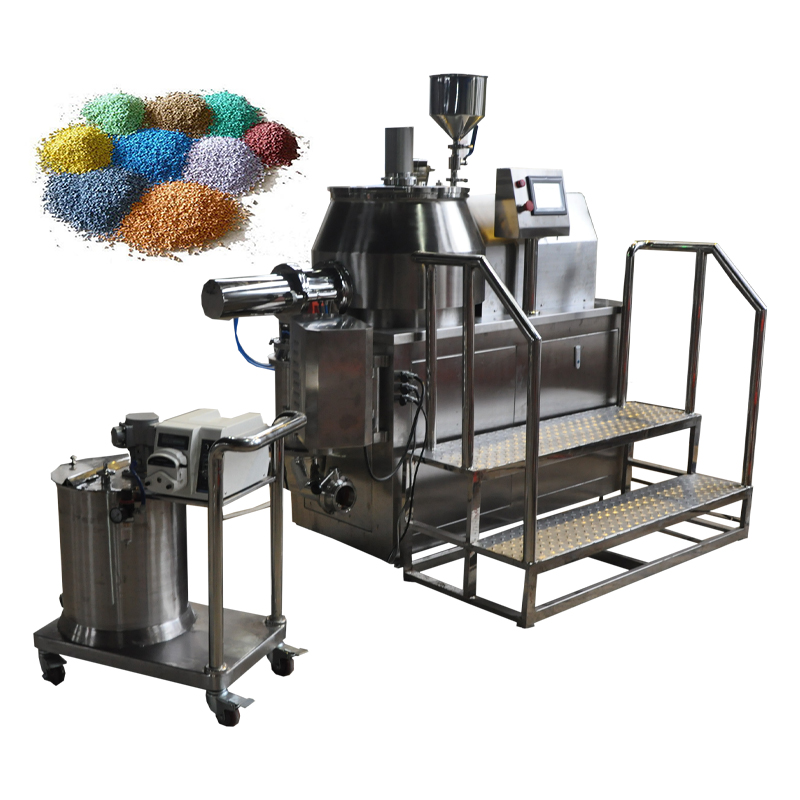

The rapid mixer granulator fully complies with GMP pharmaceutical requirements,featuring low consumption,no pollution,security. The rapid mixer granulator can complete the process of mixing, humidifying, granulating and other at one time,suitable for pharmaceutical,food,chemical and other industries. And it’s 4-5 times higher than the traditional process, which is reflected in about 2 minutes of dry mixing and 1-4 minutes of granulation for each batch. The rapid mixer granulator mainly composed of conical hopper, impeller, chopper, feeding device, liquid feeding device, discharging and control system, and auxiliary systems such as air sealing, water cleaning, and jacket water cooling.In the container, the material and the binder are fully mixed by the impeller to form a moist soft material, and then cut into uniform wet particles by the high-speed chopper blades.
Feature1,Auto startup of safety pin in fixed position while opening the lid of
rapid mixer granulator guarantees reliable operation.
2,Belt drive system of
rapid mixer granulator has advantages of overload protection, simple maintenance, free of oil lubrication and leakage.

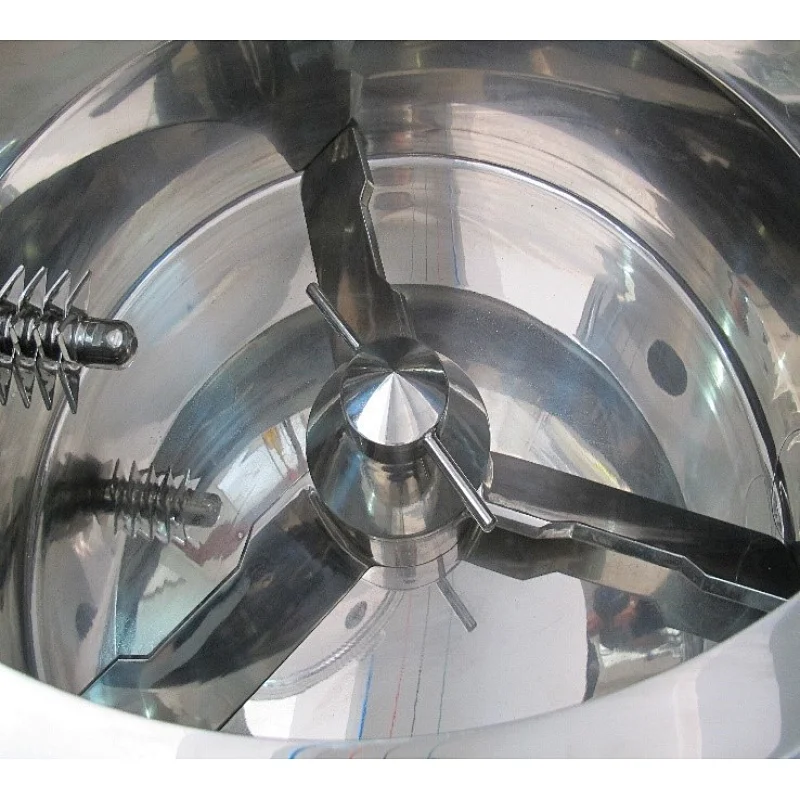

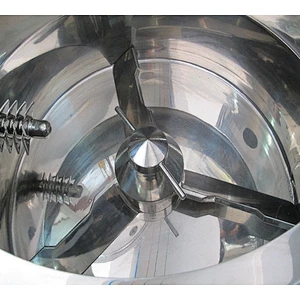

3,Oblique designed liner impeller blade applies for the mixture of processed material which drops down at certain height, free of sticking on lid.
4,Container lid of
rapid mixer granulator is multifunctional design, fitted with observation port, auto/manual dipping port, exhaust port, auto cleaning port, auto spraying port, vacuum loading port.
5,An automatic water circulation system is built under bottom container of
rapid mixer granulator.6,Three cycles of seal rings and air seal used for the bearings of impeller and chopper, no dirty or oil backflows to processed container.
7,Air seal system is common for air and water circulation, both for cleaning bearing gaps and pressure setting.
8, The
rapid mixer granulator stringent mirror polish technology applied to full container.
9.Outlet vent filter 0.22 micron allowing evacuation of compressed air used in air purged impeller and chopper seals.
10.High shear mixer minimizes the exposure of drug dust to workers due to reduced process dust generation
11.Conical sieve mill (Wet Mill) is mounted on discharge port, equipped with milling screen and two rotor arms (square or round) or triangular blades that rotates at a speed up to 3000 RPM (Option)
Technical Parameter
| Model | HLSG-10 | HLSG-30 | HLSG-50 | HLSG-100 | HLSG-200 | HLSG-300 | HLSG-400 | HLSG-600 |
| Hopper capacity | 10L | 30 | 50L | 100L | 200L | 300L | 400L | 600L |
| Working capacity | 2-8L | 6-24 | 10-40 | 20-80 | 40-160 | 60-240 | 100-300L | 150-440L |
Capacity | 1-4 Kg/batch | 3-12 Kg/batch | 8-20Kg/batch | 15-40 Kg/batch | 30-80Kg/batch | 30-120Kg/batch | 50-150Kg/batch | 75-220Kg/batch |
| Operation time | Mixing about 2-8 minutes granulating about 10-20 minutes each batch |
| Finished product granularity | About Φ0.14-Φ1.5mm (12 mesh-100 mesh) |
| Mixing motor | 2.2KW | 3KW | 5.5KW | 7.5KW | 15KW | 18.5KW | 22KW | 30KW |
Mixing blade rotating speed | 50-500 rpm | 25-500 rpm | 30-250 rpm | 20-200 rpm |
| Granulating motor | 0.75KW | 1.1KW | 1.5KW | 3KW | 4KW | 5.5KW | 7.5KW | 11KW |
Granulating blade rotating speed | 50-3000 rpm |
Compressed air | 0.15m³ 0.7mpa | 0.3m³ 0.7mpa | 0.5m³ 0.7mpa |
| Mahcine size | 1280×530×1320 mm | 1500×550×1350 mm | 1750×600×1620 mm | 1760×600×1660 mm | 2180×810×1950mm | 2420×1060×2150mm | 2420×1060×2150mm | 2980×1200×2500mm |
| Weight | 350kg | 450kg | 600kg | 800kg | 1300kg | 1500kg | 1800kg | 2200kg |
