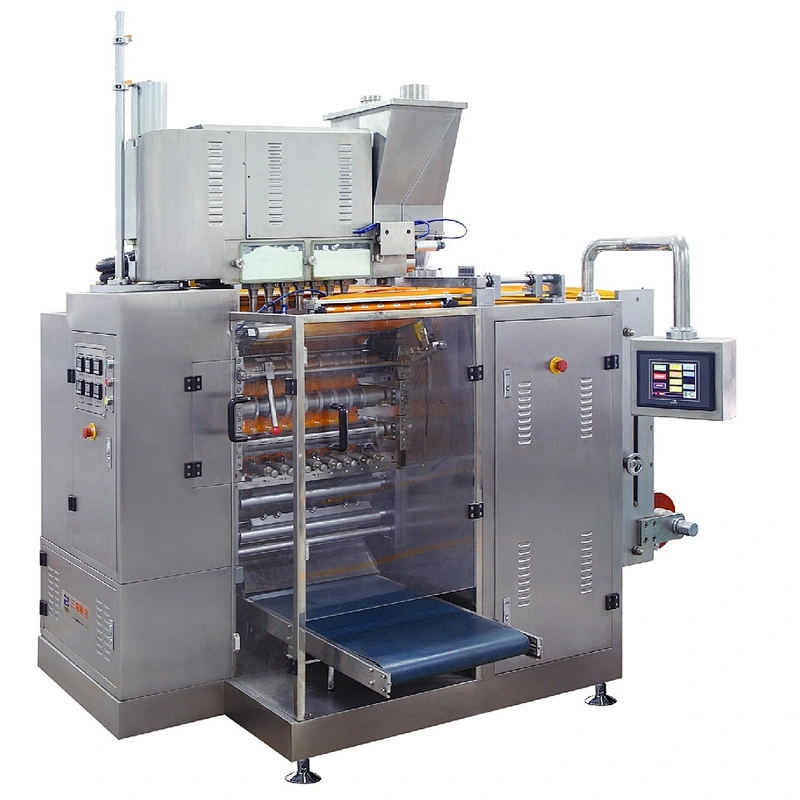

Model DXDM-FF500 Multi-Lanes Powder Packaging Machine
Model DXDM-FF500 Multi-Lanes Powder Packaging Machine
Powder Packaging Machine,powder packing machine,powder sachet packaging machine
Model DXDM-FF500 Multi-Lanes Powder Packaging Machine
Powder Packaging Machine,powder packing machine,powder sachet packaging machine

Model DXDM-FF500 Multi-Lanes Powder Packaging Machine

Model NO.
Model DXDM-FF500
Minimum order quantity:
1
Quantity:
The Multi Lanes Powder Packaging Machine adopts servo motor drive, PLC control, the product function can be made according to the requirements of customers with high speed and stable performance. Applicable to the pharmaceutical, food, daily chemical industry such as no caking powder material and automatic small and medium-sized bag packing with count. Such as flour, coffee powder, starch, milk powder, all kinds of drugs, chemical powder, etc. Due to the Multi Lanes Powder Packaging Machine is a multi-channel economic and efficient, it was selected by most users.

Feature:
1, The Multi Lanes Powder Packaging Machine adopt h
igh precision whole rolling type heat sealing rollers are adopted as sealing mould, four-sides sealing, multi-line sachet form. With high packing speed, smooth bag shape, delicate and beautiful, packaging and high efficiency.
2,
The Multi Lanes Powder Packaging Machine adoptfiveshaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.
3,
The Multi Lanes Powder Packaging Machine adopt can customization lanes according the sachet width.
4, The Multi Lanes Powder Packaging Machine is a
dvanced performance, high power, low noise, compact structure, operate steadily , easy to maintain, and has a long life span.

Technical Parameters:

ModelDXDM-FF500
Pouch length50~120mm
Pouch width60~105mm
Packing materialPowder
Packing speed30~50times/min (as per bag length, material)
Capacity120~160 bags/min
Filling capacity2g
Deviation±6%
Applicable filmPET/AL/PE PET/PE NY/AL/PE  NY/PE
Max film width530mm
Max film diameter350mm
Film core diameter75mm
Power supply380V50Hz
Total power12 kw
G.W.1500kg
Package size1700x1800x1900mm (L×W×H)
