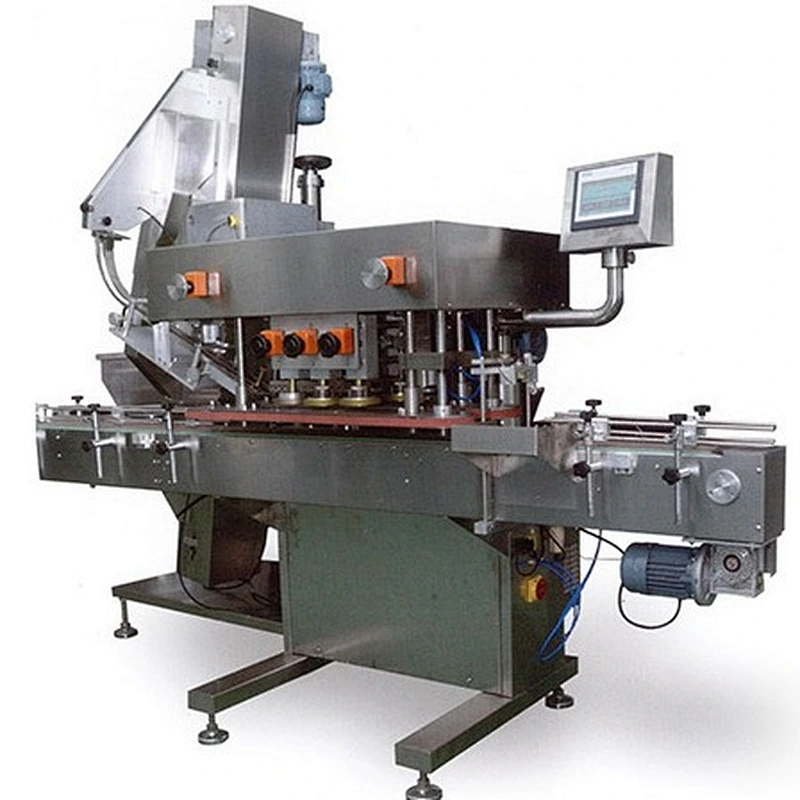

Model SGP-200 Automatic In-Line Capper

Model NO.: SGP-200
Minimum order quantity:: 1

Quantity:

Product Description

The automatic bottle capper machine is suitable for capping various kinds of vessels (round type, flat type, square type) and widely used in such fields as pharmaceutical, foods, chemistry etc.

The automatic bottle capper machineworks reliably and operates easily. When a bottle already filled with materials enters the entry of the automatic bottle capper machine, the cap drops through the cap feeder rail and covers the bottle. Then the bottle covered by the cap enters the bottle clamp system, clamped by two belts and sent forward. Simultaneously three pairs of capping wheels fasten the caps. The bottle of capped detaches from the bottle clamping belt and goes into the next process. The automatic bottle capper machine work for different types of bottles, users may only need to adjust the cap drop lane, bottle clamping belt, the distance between the capping wheels and the height of the working box.
The automatic bottle capper machine can connect with counting line can liquid line.

Technical parameters

Model	SGP-200
Capacity	50-100 bottles/minute depend on your bottle
Cap Diameter	Φ 25-Φ 70mm
Vessel Diameter	Φ 35-Φ 140mm
Vessel Height	3P AC 380V 50-60 Hz
Power Consumption	1.2 KW
Main Machine Dimensions (L × W × H)	1300 × 850 × 1400mm
Main Machine Weight	600Kg
Cap Dropper Dimensions (L × W × H)	1100 × 1200 × 2150 mm
Cap Dropper Weight	190kg
