SZS230 Uphill Deduster
SZS230 Uphill Deduster
SZS230 Uphill Deduster

SZS230 Uphill Deduster

Model NO.
SZS230
Minimum order quantity:
1
Quantity:

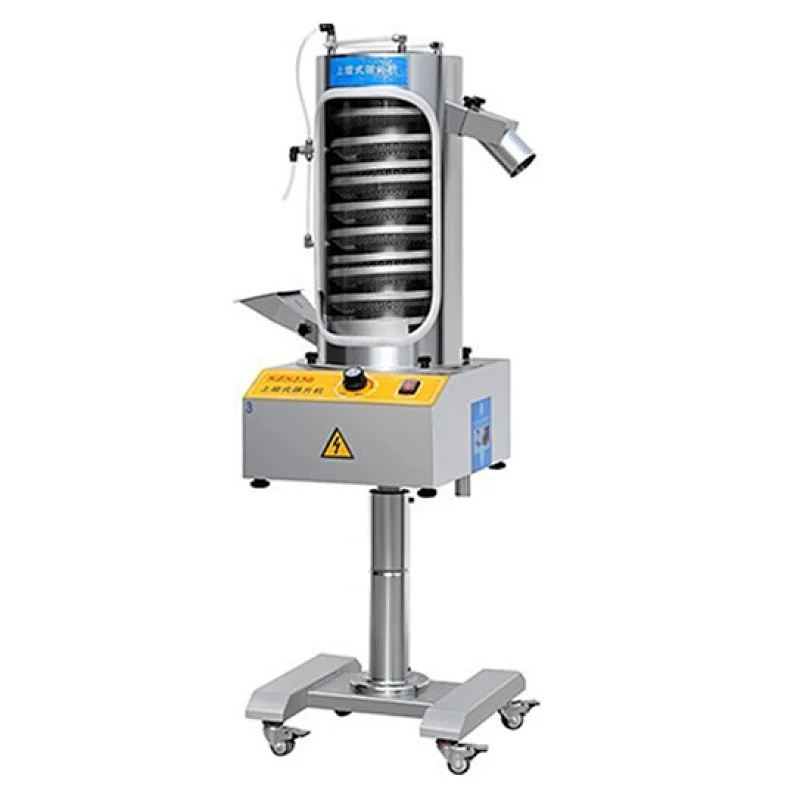

Model SZS230 uphill tablet deduster also employed many new designs, to allow and to ensure a better and safer production, This uphill tablet deduster is able to act as both elevating and dedusting machine, which made it a usual combination with other tablet-compressing machine and metal detection machine, and also made it extremely applicable in the field of pharmacy, chemical engineering, electronics, and food.

Features:

The uphill tablet deduster advantage includes long dedusting path, automatic tablet polish on all sides, and high quality dedusting without damage to the tablet itself. In addition, it can act as a delivering device for any shape of tablet that needs to be dedusted. Best of all, it correspond with the GMP standard. The uphill tablet deduster body, cover adopts modular design, easy to adjust export height, the quick assembling connection structure, make the machine more efficient disassembly, installation, also cleaning without dead angle of entrance and exit. The uphill tablet deduster can do a 360 degree circumference adjustment, convenient production, save space outstanding production efficiency, can satisfy Dia. 3-35mm shape tablets in the large scale production, the new driving device design.



Technical parameters


Model

SZS230

Max output capacity(t/h)

800000 (Ф6mm Tablet)

Dedust route (m)

6

Max lift height(mm)

1220

Max tablet Dia(mm)

Ф25

Power supply

1P 220/110V 50-60Hz

Outer dimension(mm)

550×550×(H:1350-1500)

Weight(kg)

70

Compressed air

0.1m3/min 0.05Mpa

Vacuum

2.7m3/min -001Mpa
