Tablet Bottling Machine
Tablet Bottling Machine

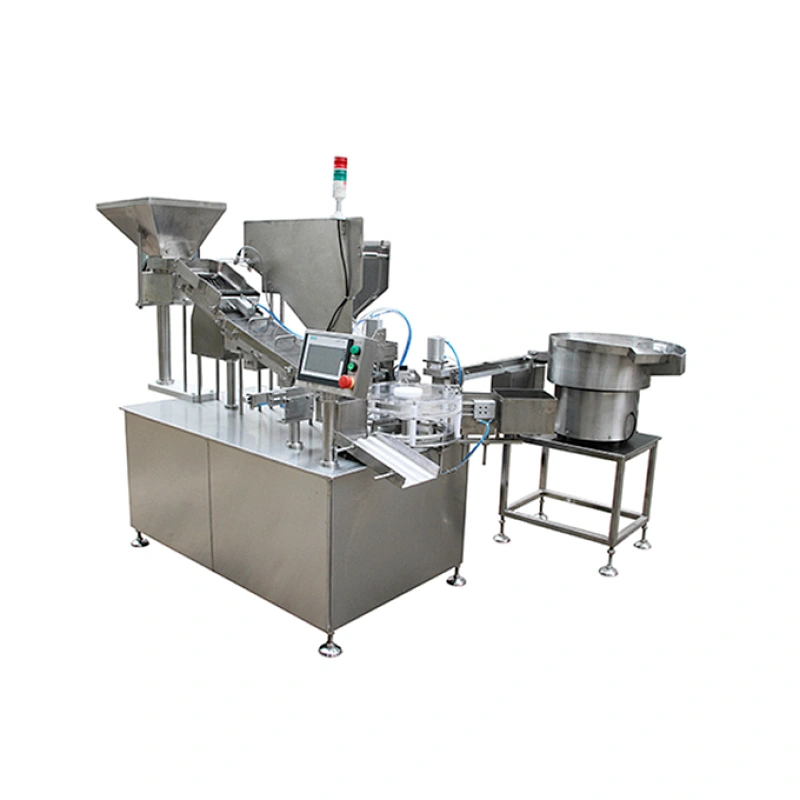

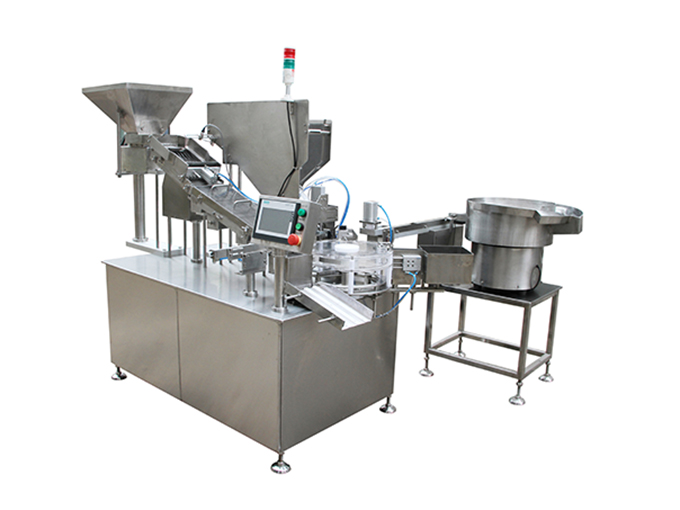

Straight-Bottle Tablet Filling Machine

Model NO.
Straight-Bottle Tablet Filling Machine
Quantity:
The Fully automatic Straight-bottle Tablet Bottling Machine realizes electromechanical integration. Automatic bottle unscramble, push tablet, cap unscramble and cap pressing. The Tablet Bottling Machine adopts touch screen control, is simple to operate and easy to maintain.
The Tablet Bottling Machine for bobbin bottles is applicable to the packing of bigger and thinner tablets which are orderly fed into bobbin bottles/tube in a single row in an overlapping way. The device utterly adopts a PLC for centralized control. The Tablet Bottling Machine is verified in fiber and photoelectric detection and other kinds of detection to have steady performance and reliably automatic operation. The Tablet Bottling Machine can automatically give alarms and shut down in case of no tablets, bottles or covers. The Tablet Bottling Machine contact part with tablets is made of superior 316 stainless steel.which can fully requirement of GMP.

Main Features:
1,Cap Vibrating System: Loading cap to hopper by manual, automatically arranging cap to rack for plugging by vibrating system.
2,Tablet feeding system: Put Tablet into hopper by manual, vibrating and sending tablet to channels automatically for packing preparation.
3,Tube feeding unit: put tube into hopper by manual, shaking system will send tube to rack automatically. Tube direction should be checked by manual before put into hopper
4,Cap Pushing unit: When tube get tablet, cap pushing system will push cap and close tube automatically, no tablet no capping, no tube no capping.
5,Electronic Control Section: This Tablet Bottling Machine is controlled by PLC,cylinder and stepper motor. with automatic multi-function alarm system




Technical parameters


Capacity

60-80bpm

Counting Accuracy

≥99%

Applied Bottle

Tube Bottle

Press Cover Rate

≥99%

Counting Type

Continuous

Main Motor Power

1.5KW

Overall Size(L×W×H)

2900*1100*1600mm

Weight

500Kg
