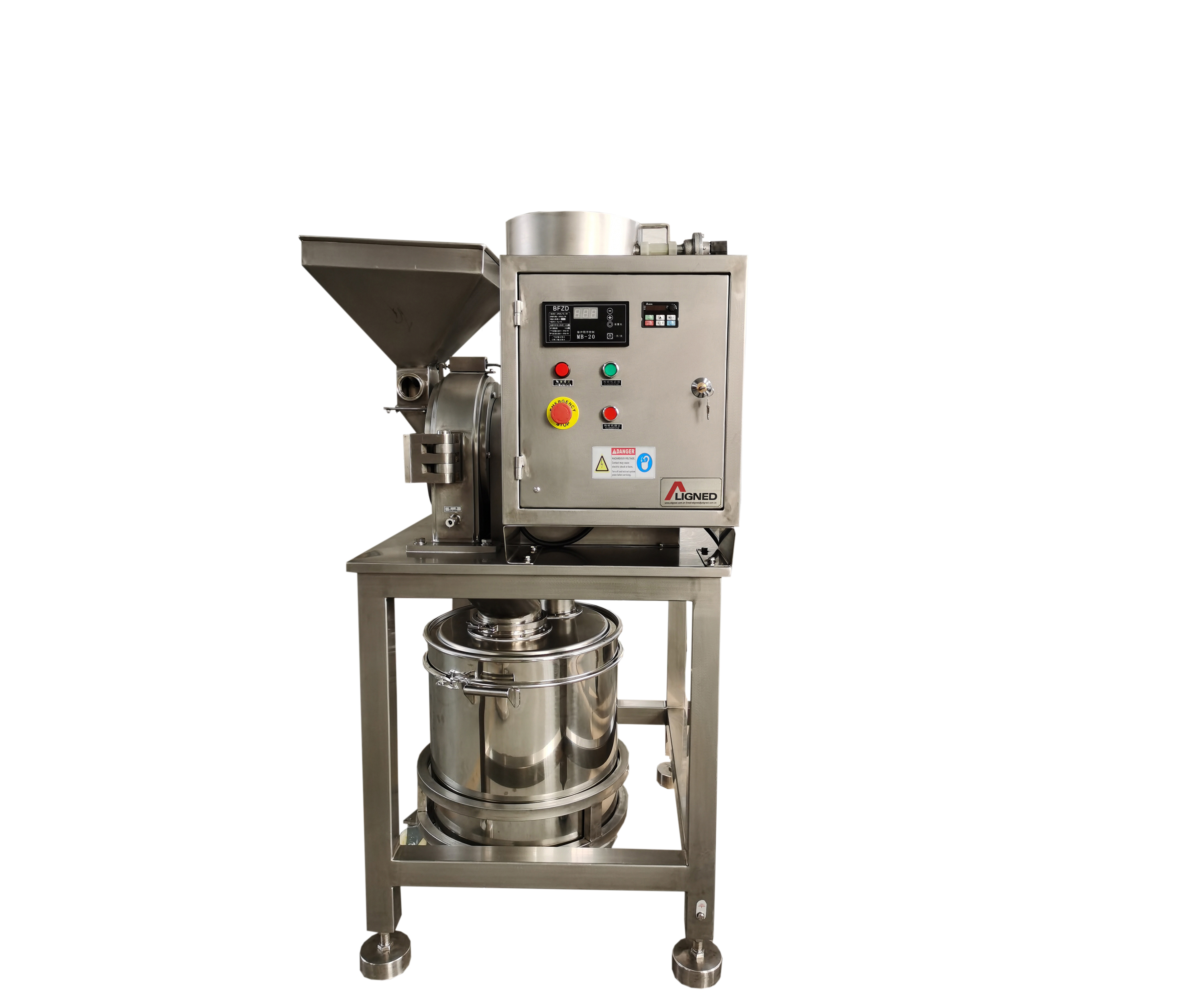

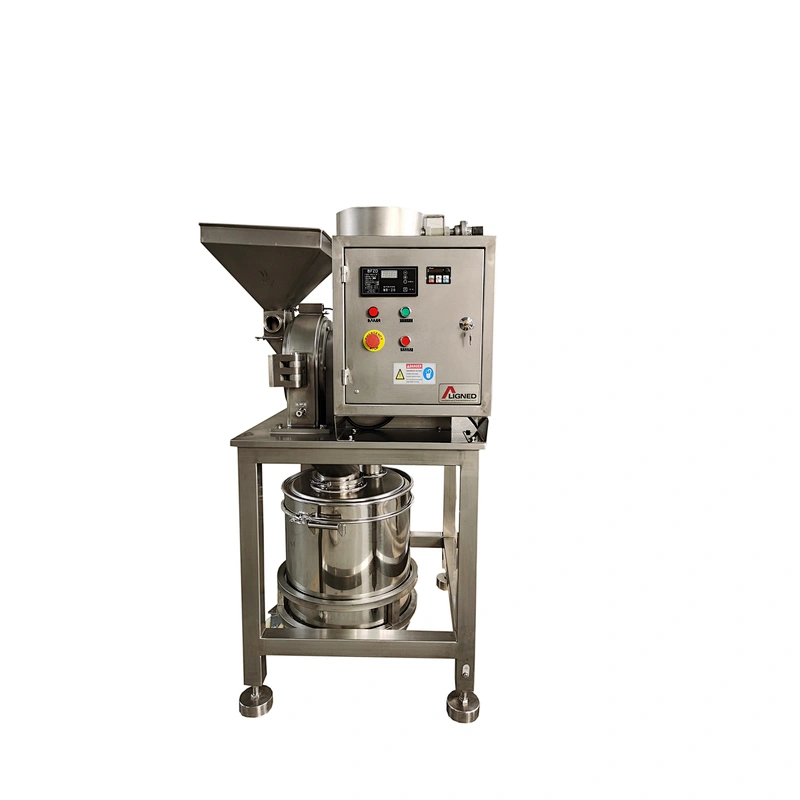

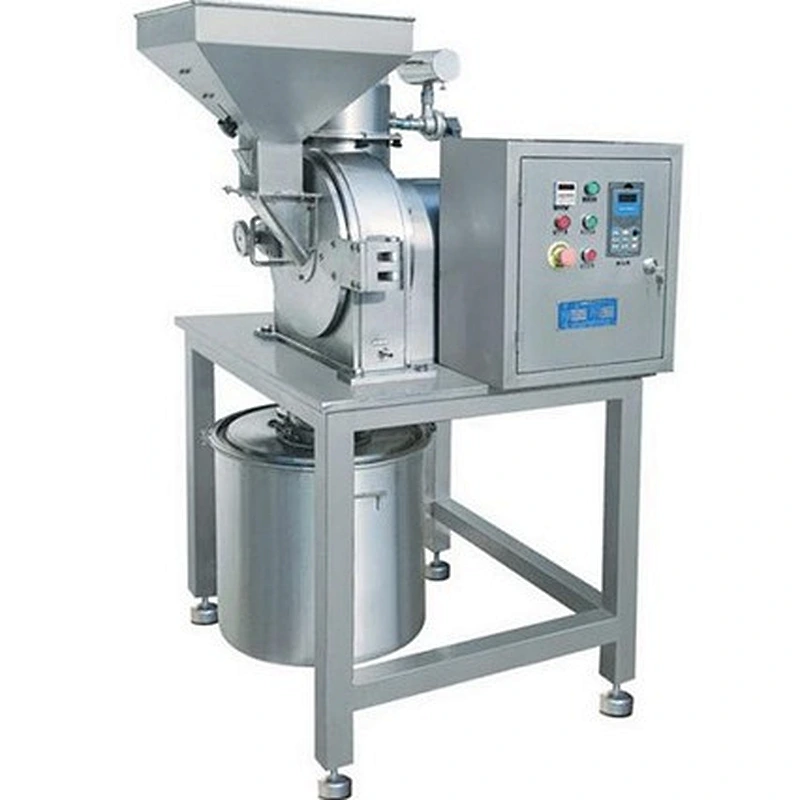

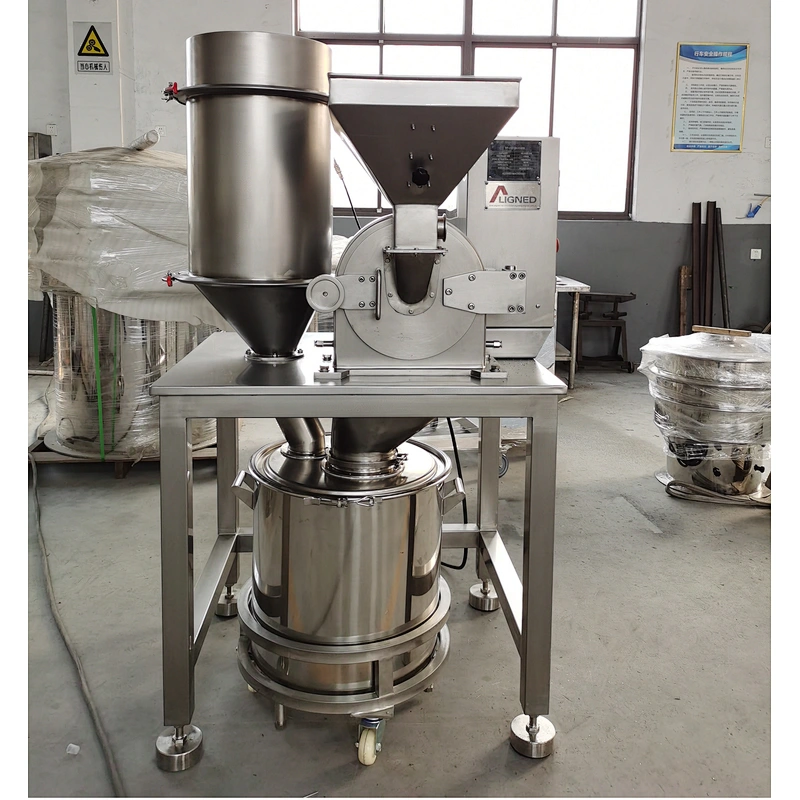

WF-C Series Crushing Set
WF-C Series Crushing Set
WF-C Series Crushing Set
Crusher machine,crushing machine,pulverizer machine
WF-C Series Crushing Set
WF-C Series Crushing Set
Crusher machine,crushing machine,pulverizer machine

WF-C Series Crushing Set

Model NO.
WF-C Series
Minimum order quantity:
1
Quantity:
The material enters the crusher cavity from the feeding hopper, and is thrown from the center to the crusher cavity wall by the centrifugal force generated by the high-speed rotation of the movable toothed plate. Finally, the fine particles are discharged from the bottom through the sieve plate, and the coarse powder is repeatedly pulverized in the machine.The crushing machine is suitable for pharmaceutical, chemical, food and other industries to crush dry brittle materials. The crushing machine is a crushing equipment that integrates crushing and vacuuming.

Feature
1.Diversified crushing mechanisms: toothed disc type, turbine type, air-cooled type, blade type and hammer type, suitable for various materials.
2.Assembled with a cartridge type dust collector, the structure is compact, the floor space is reduced, and the heat dissipation is higher.
3.Equipped with airtight material receiving barrel, which avoids the dust generated when receiving material, and is easy to transfer to the next process.
4.The screen mesh that is easy to disassemble can achieve different degrees of crushing thickness.
5.The shell of the pulveriser can be equipped with jacket cooling water, which is suitable for high heat-sensitive materials.




Technical parameters


ModelWF-15CWF-30CWF-60CWF-80C
Capacity(kg/h)10-20030-80050-1200100-1500
Material sie (mm)<10<15<15<15
Product size(mesh)80-32080-32080-30080-300
Total power(kw)14.338.8569.687.6
Main revolution(r/min)0-60000-38000-28000-2500
Overall dimension (L * W * H)(mm)4200*1200*27006640*1300*39607500*2300*45309000*2300*4530
weight(kg)850150032003700
