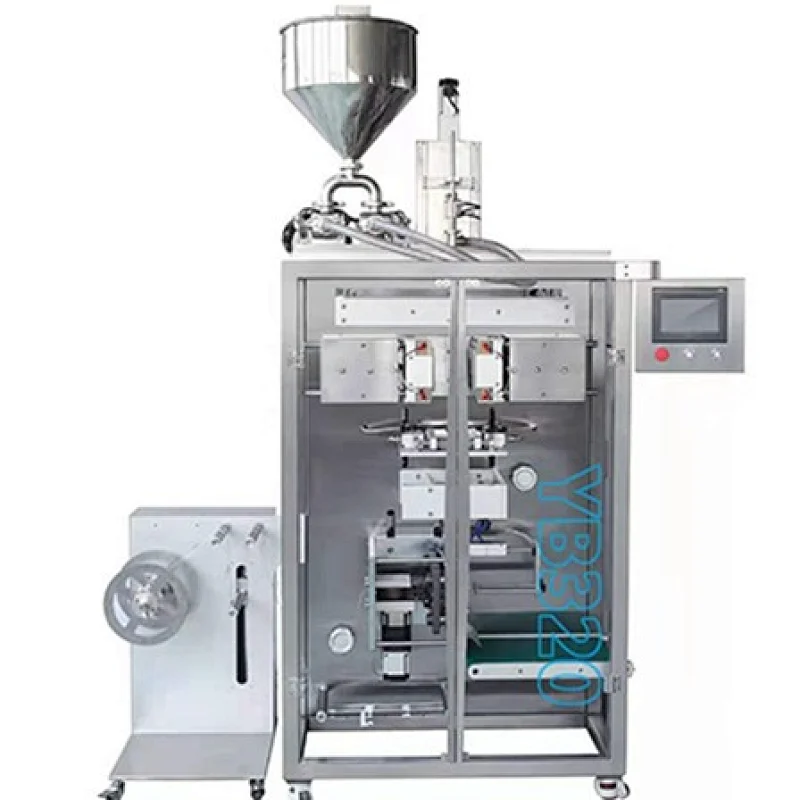

YB-320 Shaped Bag Packing Machine

Model NO.
YB-320
Quantity:

The Shaped Bag pouch packing machine suitable for packing powder, liquid, cream and granule like sugar, coffee, juice with equipping different dosing unit.

Main features:
1. The Shaped Bag pouch packing machine is automatic forming, filling, sealing and shape bag funtion
2. Sachet shape can be made according to customer design by changing punch mold.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. The Shaped Bag pouch packing machine adopt PID temperature controller monitors heat sealing temperature width in±1℃ .

Technical parameters



Model

YB-320

Capacity

30-120(bag/min)

Filling volume

1-50ml/(1-30ml)*2/(1-15ml)*3/(1-8ml)*4

Feeding type

Piston pump/measuring cup/screw

Bag size

(L)40-180mm, (W)40-190mm

Total power

3000W

Supply voltage

220V/50-60Hz;380V/50HZ

Packing material

Paper/PE, PE/ALU/PE

Weight

600kg

Dimension

1450x1625x2211mm(LxWxH)
