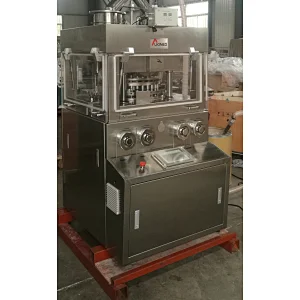

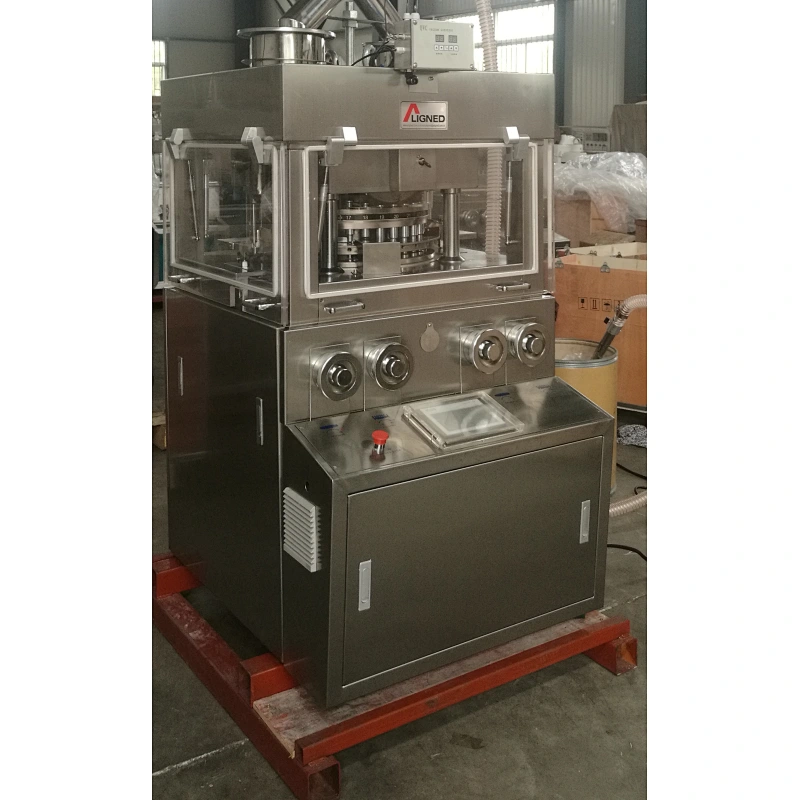

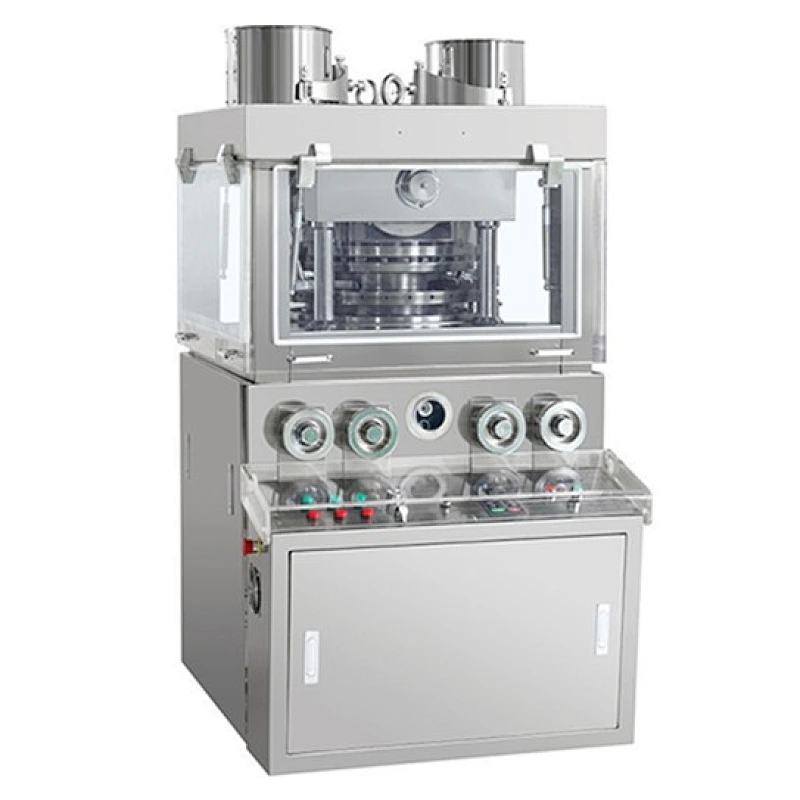

ZP Series Rotary Tablet Press

Model NO.
ZP Series
Minimum order quantity:
1
Quantity:
The rotary tablet press machine is a double-pressing automatically rotary tablet press which can make grain be pressed to be round piece,carved characters,special shapes and double color piece prescription. The rotary tablet press machine mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.

Function
1.The cover of rotary tablet press machine is made of stainless steel with close type. The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. The rotary tablet press machine equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side window can be fully opened, easy to clean and maintain.
3. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
4. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
5. Combining machine with electricity, equipped with touching key and screen.
6. The rotary tablet press machine adopt semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
7. Transmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
8. The rotary tablet press machine adopt mechanical construction



Technical parameters


Model

ZP35D

ZP37D

ZP41D

Mold number

35

37

41

Maximum pressure

80

80

80

Maximum diameter diameter

13

12

1

Maximum filling depth

15

15

15

Maximum tablet thickness

6

6

6

Plug speed

14-37

14-37

14-37

Capacity

150000

160000

170000

Electric motor

4

4

4

Dimensions

950*1230*1670

950*1230*1670

950*1230*1670

weight

1700

1700

1700
