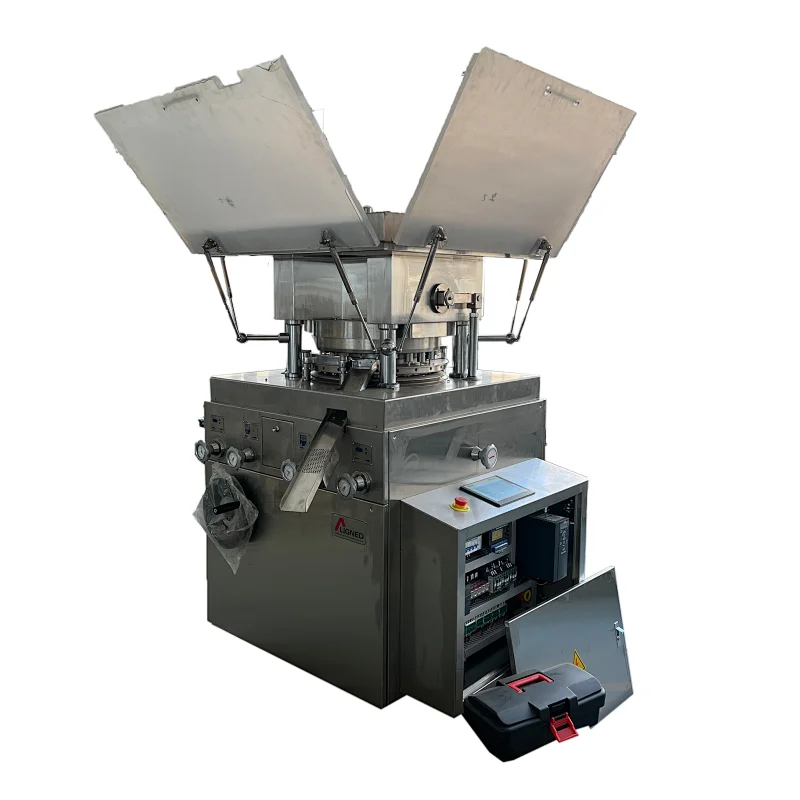

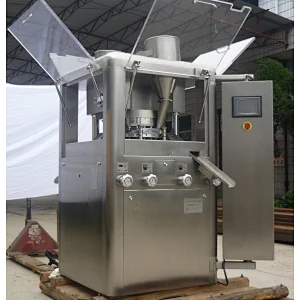

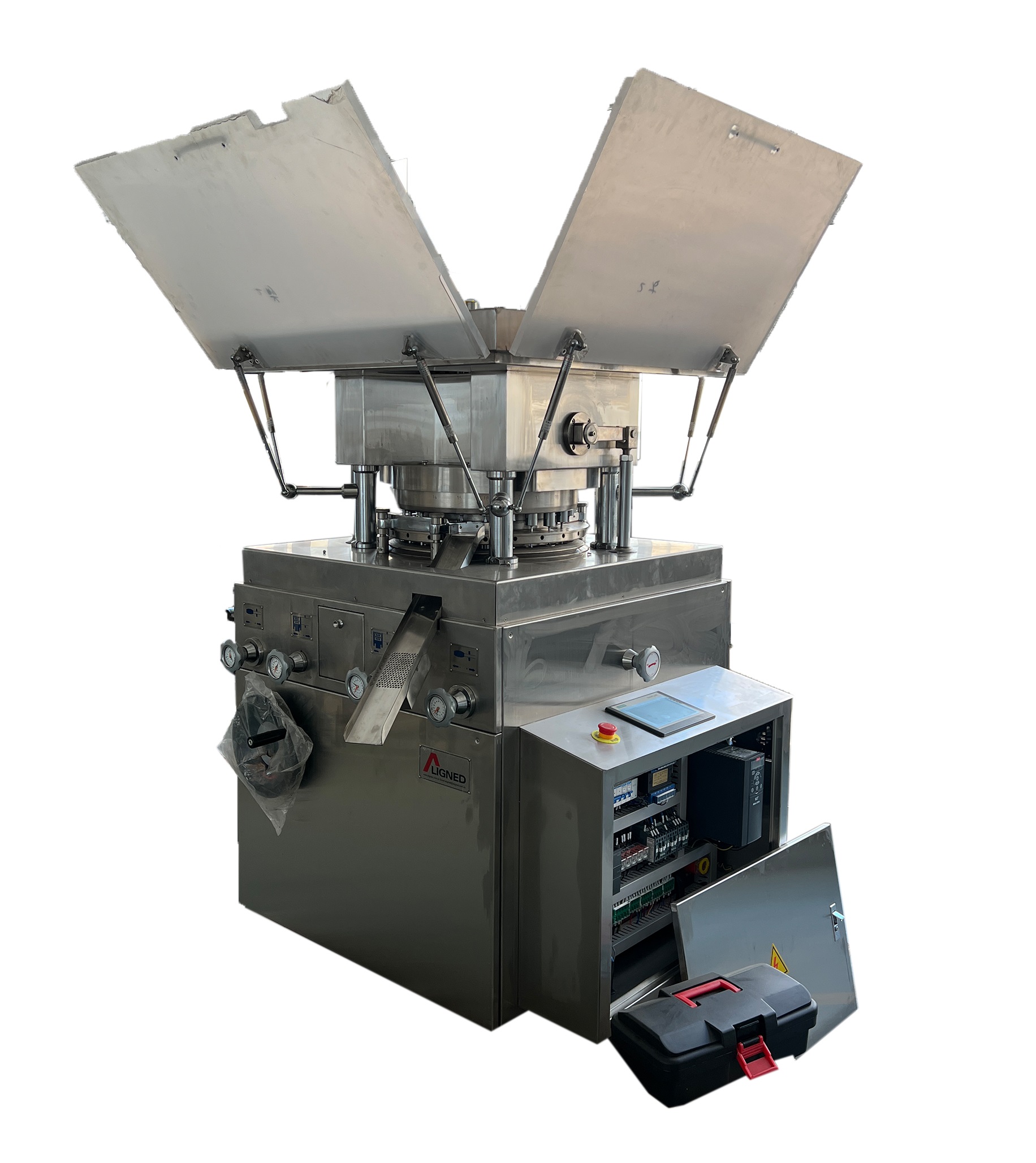

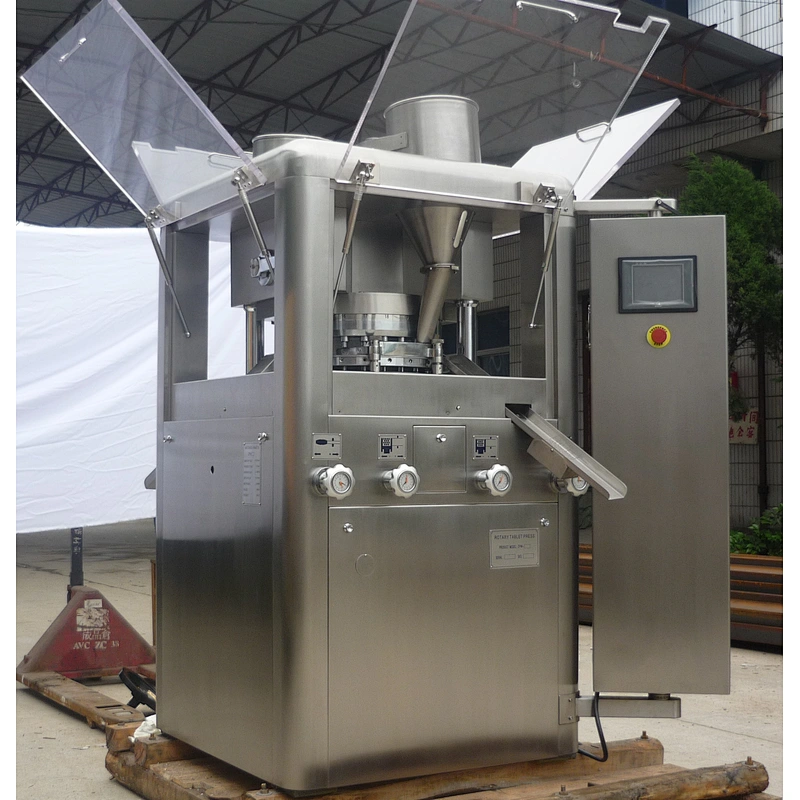

ZPW Series Rotary Tablet Press
ZPW Series Rotary Tablet Press
tablet making machine, tablet press machine,tablet machine
ZPW Series Rotary Tablet Press
tablet making machine, tablet press machine,tablet machine

ZPW Series Rotary Tablet Press

Model NO.
ZPW Series
Minimum order quantity:
1
Quantity:

The tablet making machine is double side rotary press machine in current industry,which development and innovation basis on board and at home technical by our factory,with in high speed and widely used to various normal or abnormity tablet pressing;The tablet making machine popular in Pharmaceutical, Chemical, Foodstuff, Plastic Electronic industries.

Features:
1 The tablet making machine designed for fully enclosed structure;it has the advantage of good appearance in design,high efficiency lower energy consumption and etc.
2 The material contact parts is made of stainless steel,the surface turntable deal with polished to prevent cross pollution which meet the GMP requirements.
3 The tablet making machine is equipped with Plexi-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
4 Driving system is equipped with oil box and running under oil,easy for heat dissipation and durable non-pollution.
5 The tablet making machine adopts import frequency timing ,with hydraulic system.
6 The tablet making machine with the Over-loading protection.
7 The tablet making machine has two type appearance for choose.



Technical parameters


Die Amount

45 stations

41stations

35stations

31tations

27 stations

23 stations

Max.Pressure

100KN

100KN

100KN

100KN

100KN

100KN

Max.Filling Depth

17 mm

17 mm

17 mm

17 mm

23 mm

23 mm

Max.Pressure Diameter

11 mm

12 mm

13 mm

20 mm

25 mm

27 mm

Max. Thickness

7 mm

7 mm

7 mm

7 mm

7 mm

7 mm

RPM

16-36(r/min)

16-36(r/min)16-36(r/min)16-36(r/min)16-36(r/min)16-36(r/min)

Working Capacity

100000-180000 (P/h)

100000-174000(P/h)

60000-150000(P/h)

50000-133000(P/h)

45000-95000 (P/h)

40000-83000 (P/h)

Power supply

4KW 380V 50HZ(220V 60HZ)

Overall Dimension

1300*1200*1750 (mm)

Weight

2000 (kg)
