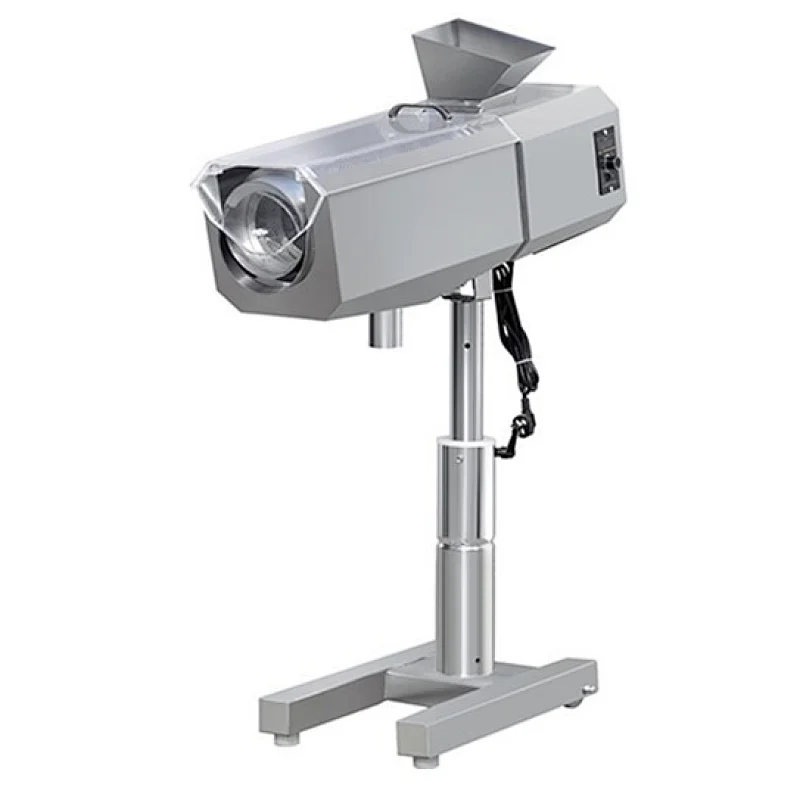

Application： ZWS137 High Speed Tablet Deduster applies the principles of compressed air cleaning, centrifugal powder removal and roller edge grinding to remove the powder and edge burrs attached to the wafers surface, so as to make the wafers surface clean and the edges neat.The screen box is completely isolated from the power box, with fast unloading structure, convenient for assembly, disassembly and cleaning;The High Speed Tablet Deduster contact with drugs parts are made of stainless steel, the High Speed Tablet Deduster meet the requirements of GMP for pharmaceutical equipment.
Characteristics： The High Speed Tablet Deduster adopts ac brushless motor to realize stepless speed regulation. The High Speed Tablet Deduster can meet the requirements of different output and different drugs.The height and angle of the inlet and outlet can be adjusted arbitrarily within a certain range to adapt to different work requirements;Casters are installed at the bottom of the stand to conveniently move the High Speed Tablet Deduster to the working place. The High Speed Tablet Deduster consists of feed hopper, power box, sieve box, sieve drum, purging device, discharging mouth, rack, speed regulating device, drive gear and other parts, the film from the hopper to join drum sieve, sieve drum consist of ac speed regulating motor and retarding mechanism of power box drive to spin, spiral plate within the film along the sieve drum under the circumferential direction of discharging mouth, the mesh on the sieve drum to moderate edge grinding of film, compressed air purging device of the film surface close for purging, dust in the jet stream, under the action of centrifugal force and gravity by sieve drum"piece"and"powder"separation, and dust with vacuum air suction dust collecting device.
