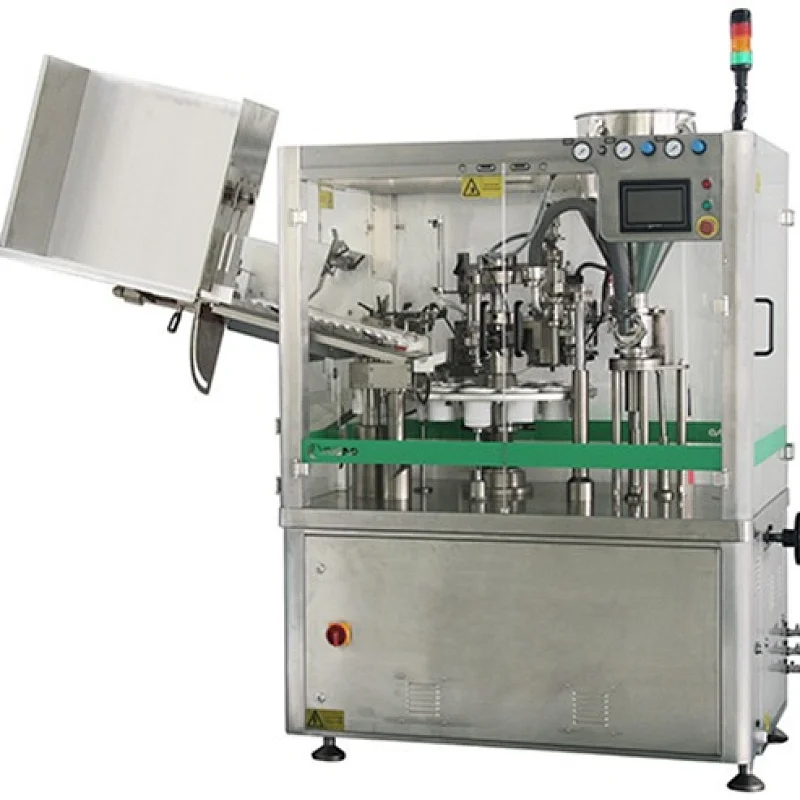

RGF Tube Filling And Sealing Machine

Model NO.
RGF
Quantity:

The automatic tube filling sealing machine can be used in the industries of pharmaceutics, foodstuffs, cosmetics , daily chemicals for smoothly and accurately filling all kinds of pasty and viscous fluid and the materials alike, into soft metal tubes and then carrying out tube end folding, sealing and lot number embossing.


Feature

1.Theautomatic tube filling sealing machine is equipped with a safety protection system to ensure the safety of the operator.
2.Theautomatic tube filling sealing machine can apply to alu and plastic both type tube in one machine
3.Auto picketage affected by photoelectric inductance, ensuring the tube design at the correct position.
4.Customisable with all kinds of tail sealing type options.
5.Customisable insulated stirring hopper system for cold condensation-prone materials.
6.Optional air and vacuum cleaning function for empty tube.
7.Optional customised automatic loading system with connection to raw material tanks.
8.Optional servo-controlled filling system for automatic adjustment filling volume by touch screen.
9.Optional auto stops working when counting the number or fixing the quantity



Technical parameters

Filling volume

5-250ml(tube)

Filling accuracy

≤±1%

Capacity

1800-4800(tubes/h Adjustable)

Tube diameter

ф10- 50mm

Tube length

210mm (Max. Length)

Total power

Three-phase five lines 380V 50/60HZ, 5.8KW

Hopper volume

40 L

Power

380/220V(Optional)

Compressed Air

6MPa, 1.1m³/min

Equipped motor

1.1 Kw

Convulsions

0.37Kw

Hot air

3.0Kw

Total power

4.47Kw

Dimension

2390×1140×2180mm LxWxH

Weight

(Approx) 1000kgs

Send Message

* clear input
* clear input
* clear input
*
*

Related Products

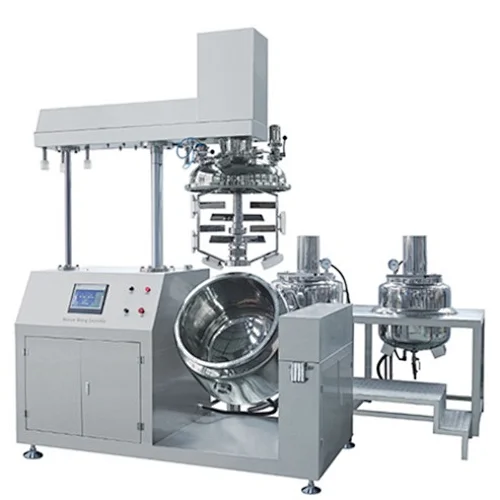

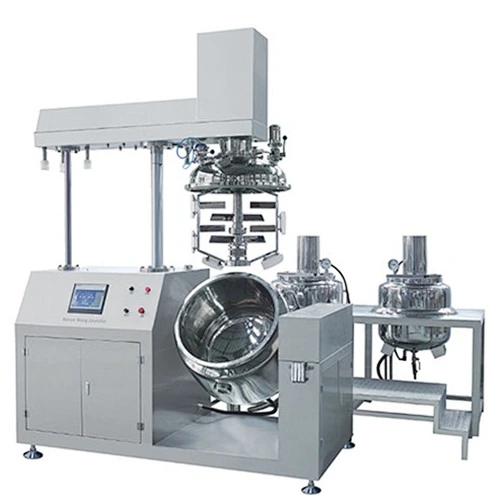

Model NO. ALRJ Series Vacuum Mixing Emulsifier
