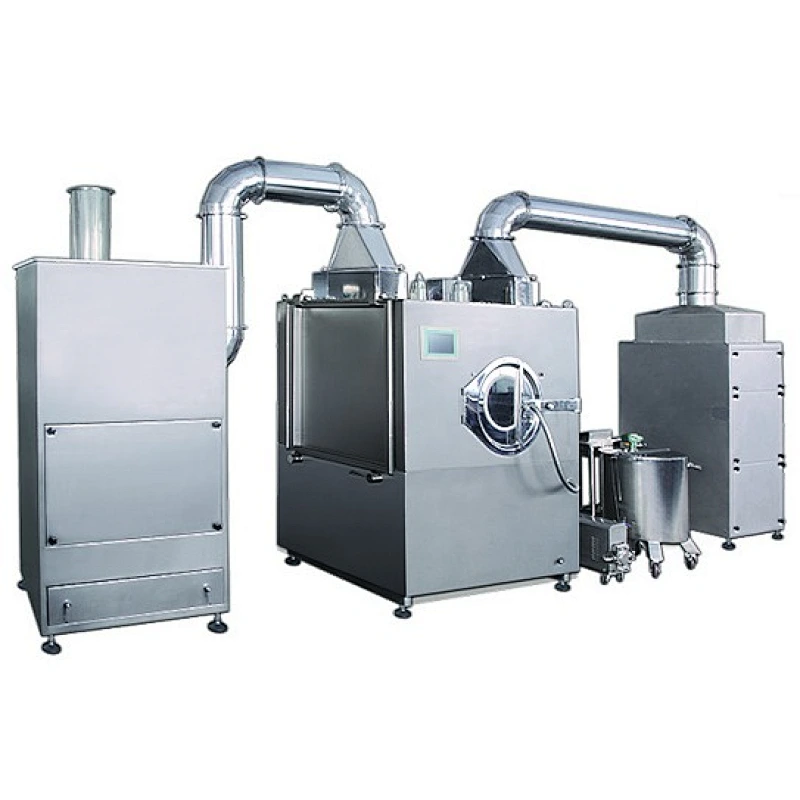

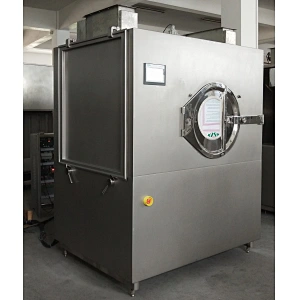

The Automatic Tablet Coating Machine is a piece of equipment designed for the pharmaceutical manufacturing industry that provides efficient and precise solutions for tablet coating. The machine is capable of coating different types of tablets, including film coating, sugar coating, and enteric coating, among others. With advanced technology and automated controls, this device delivers stable and reliable tablet coating effects while significantly improving production efficiency.
Made of stainless steel material, the Automatic Tablet Coating Machine has advantages such as corrosion resistance, ease of cleaning, and ease of maintenance. The device features automated spraying, drying, and polishing, making the tablet coating process more efficient and convenient. Additionally, the machine comes with a temperature and humidity control system to ensure stable environmental conditions for the drugs during the coating process.
Furthermore, the equipment is equipped with a PLC control system and a touch screen interface, making operation more convenient and intuitive. The Automatic Tablet Coating Machine has safety features such as an emergency stop button, safety interlocks, and more to ensure the safety of the operators. The machine is also CE certified and compliant with cGMP standards, ensuring product quality and safety.
In summary, the Automatic Tablet Coating Machine is an efficient, precise, easy-to-operate, and safe piece of equipment that meets the various coating needs of pharmaceutical manufacturers.
Function1.The distance between the spray gun and the coating pan and the spray angle can be adjusted, and the air pressure and flow can be adjusted to fully meet the requirements of different situations.
2.The adjustment lever of the spray gun is marked with a scale to record the adjustment position during production.
3.The coating pan adopts a 2.5mm mesh plate, which effectively allows the hot air to pass through the mesh holes, improves the drying efficiency, and at the same time can discharge the powder generated by the collision of the tablets.
4.Negative pressure can be formed inside the device to prevent the operator from blowing out the powder and being inhaled when the operator opens the door.
5.The doors on both sides of the host adopt an openable structure, which can be opened and closed freely, and the cleaning is convenient and quick. 6.Optional one-way and three-way cleaning systems.
6. Optional one-way and three-way cleaning systems.
7. The pan can option fully perforated or nonperforated on central section.
8. It’s can set the spray rate and spray pattern
Technical parameters

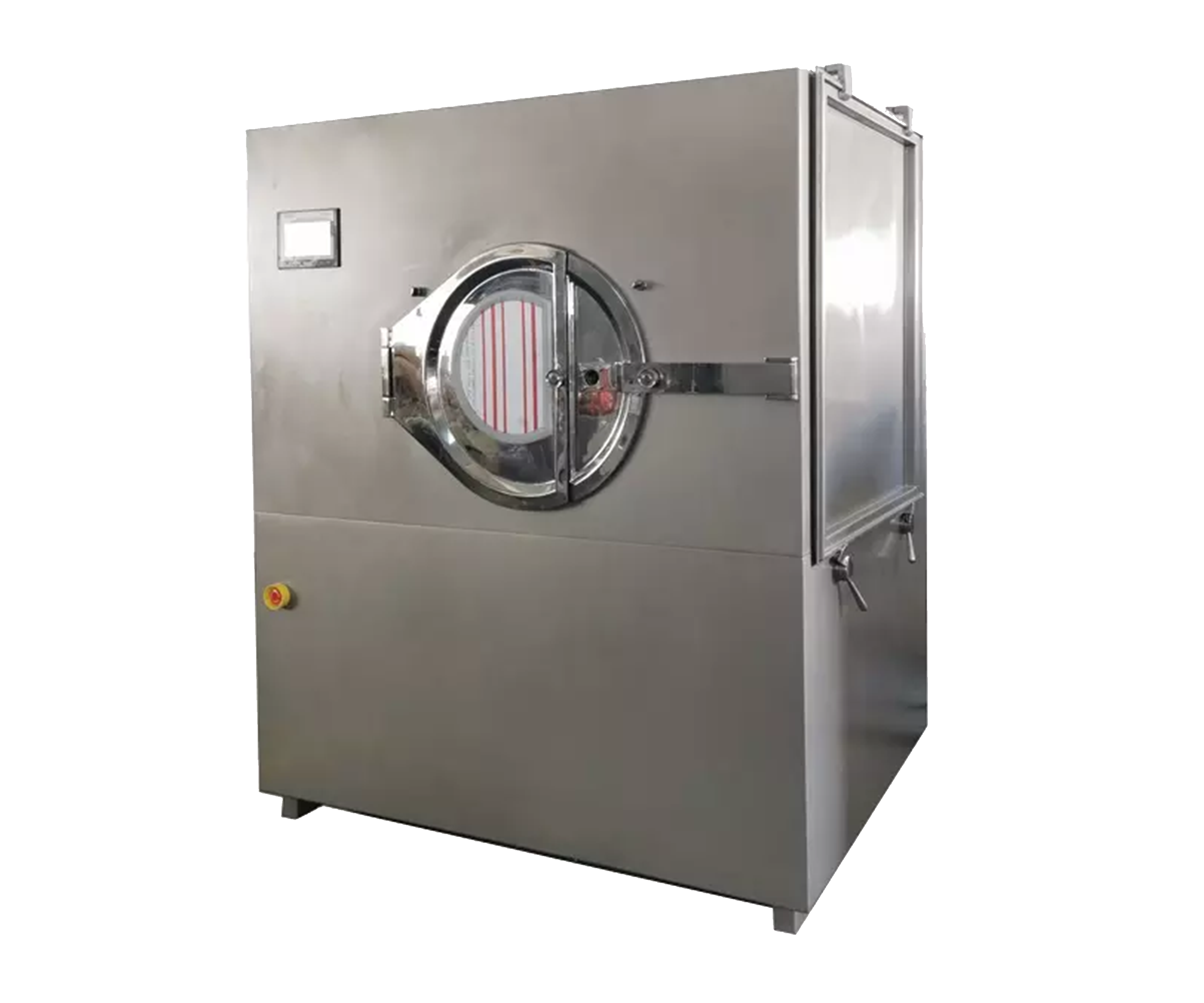

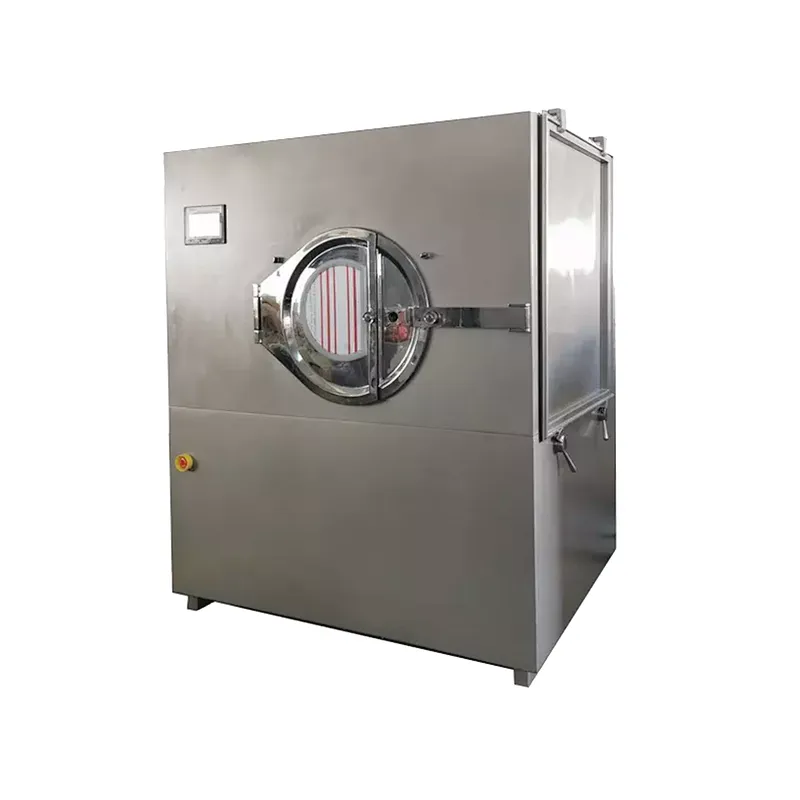

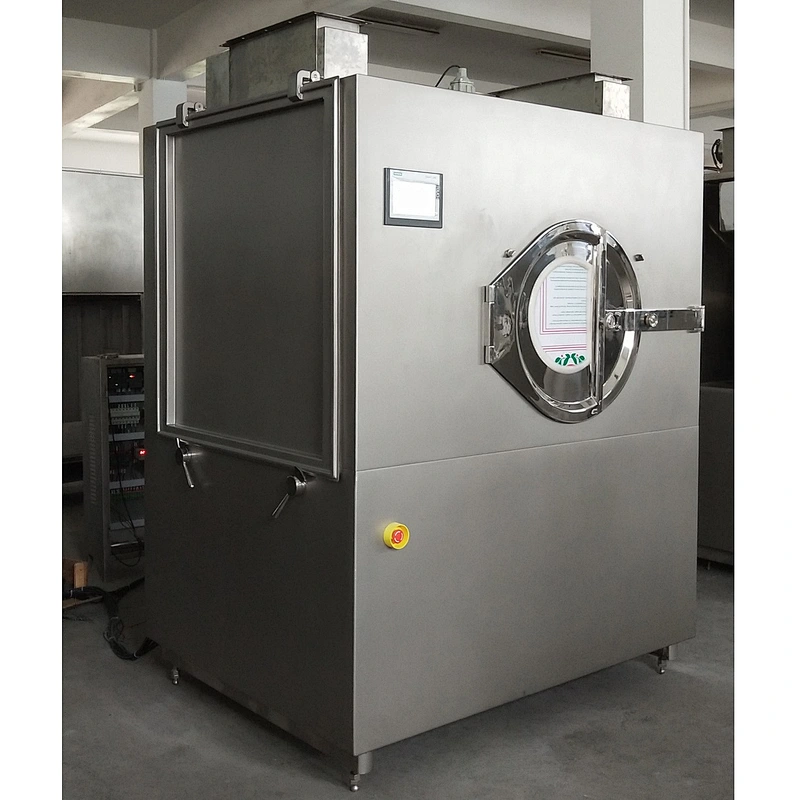

| Model | BG-10E | BG-40E | BG-80E | BG-150E | BG-260E | BG-400E | BG-600E |
| Load capacity L | 10 | 40 | 80 | 150 | 260 | 400 | 600 |
| Rotation speed of coating pan（RPM） | 1-25 | 1-21 | 1-19 | 1-16 | 1-16 | 1-13 | 1-12 |
| Power of main machine(KW) | 0.55 | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 5.5 |
| Diameter of coating pan(mm) | 500 | 750 | 930 | 1200 | 1360 | 1580 | 1580 |
| Motor of air exhaust cabinet(Kw) | 0.75 | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 11 |
| Air exhaust flow(m³/h) | 1285 | 3517 | 5268 | 7419 | 7419 | 10000 | 15450 |
| Motor power of hot air cabinet(Kw) | 0.37 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 5.5 |
| Hot air flow(m³/h) | 816 | 1285 | 1685 | 2356 | 3517 | 5200 | 7419 |
| | | | | | | |
| Weight of main machine(kg) | 200 | 500 | 684 | 1020 | 1300 | 1562 | 2800 |
| Clean air | Pressure(mpa) | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa |
| | | | | | | |
| Air consumption (m³/min) | 0.3 | 0.4 | 0.4 | 1 | 1.2 | 1.5 | 2 |
Machine dimension (L×W×H) | Main machine(mm) | 900*620*1800 | 1000*800*1900 | 1210*1000*1900 | 1570*1260*2250 | 1730*1440*2470 | 2000*1670*2660 | 2000*2277*2660 |
| | | | | | | |
| Hot air cabinet(mm) | 800*650*1600 | 900*800*2050 | 900*800*2050 | 1000*900*2300 | 1000*900*2300 | 100*900*2300 | 1600*1100*2350 |
| | | | | | | |
| Air exhaust cabinet(mm) | 800*650*1600 | 820*720*1750 | 900*820*2130 | 950*950*2245 | 1050*1050*2330 | 1050*1050**2330 | 1050*1000*2470 |
| Steam heating power (KW) | | 9 | 10 | 14 | 14 | 18 | 29 |
| Electric heating power (KW) | 12 | 24 | 30 | 42 | 48 | 61 | 79 |
