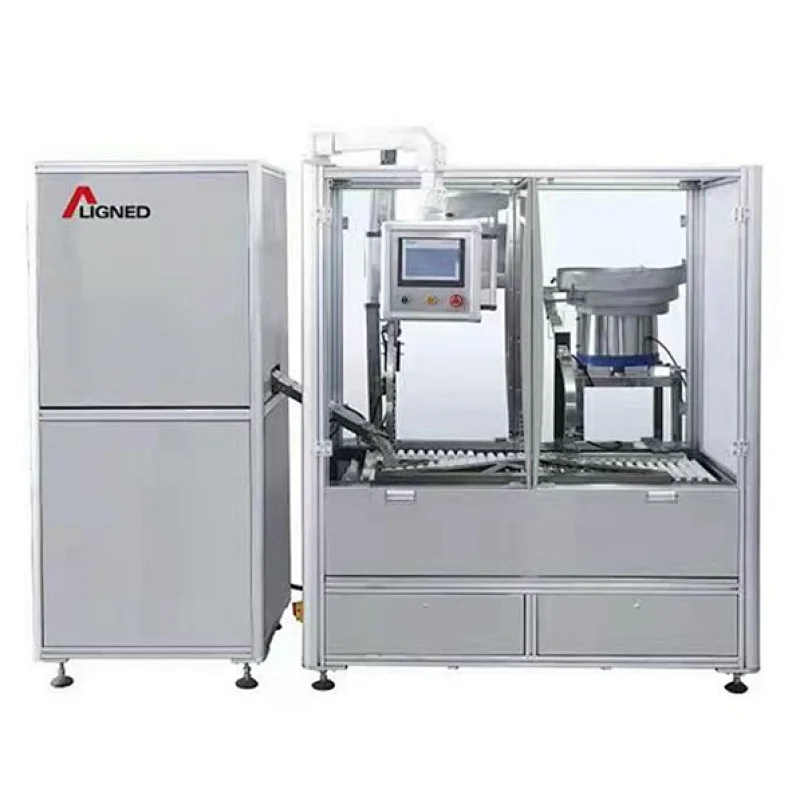

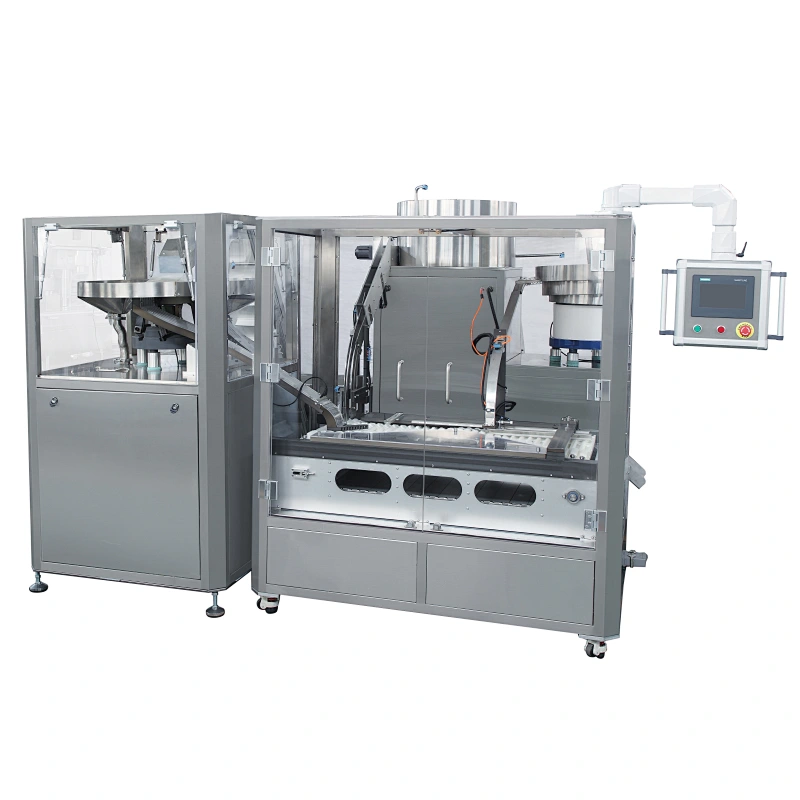

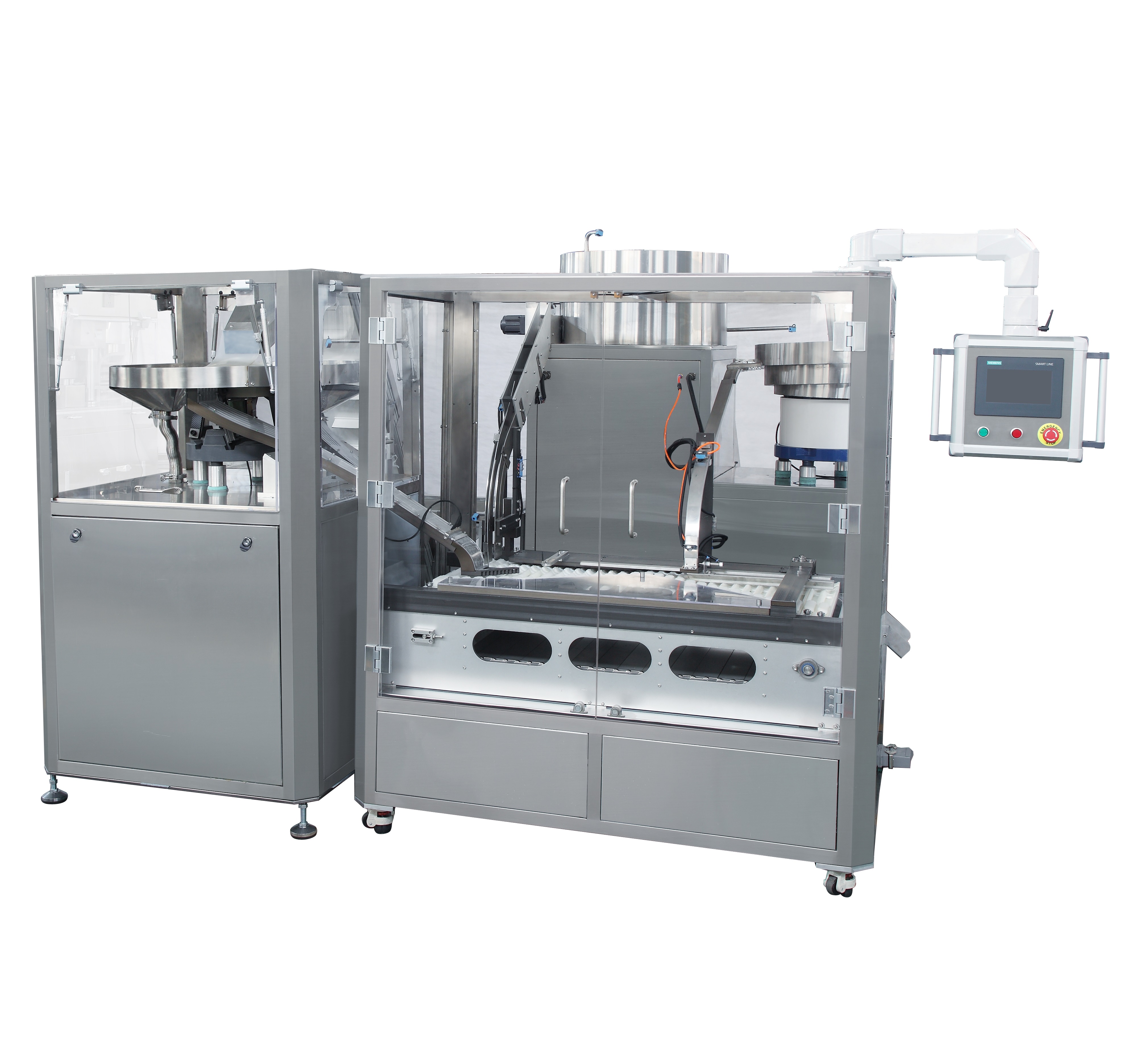

TF-120 Automatic Straight Tube Tablet Bottling Machine

Model NO.
TF-120
Quantity:
The effervescent tablet tube filling machine is mainly used for automatic bottle unscrambler, filling, capping and other functions of tubes and bottles. The effervescent tablet tube filling machine can greatly improve the production efficiency and achieve pollution-free production results, which fully meet the requirements of GMP. The main structure of the effervescent tablet tube filling machine includes automatic sheet sorting, automatic cap feeding, automatic counting, automatic capping and automatic bottle output, etc., and adopts intelligent control of counting and filling system, and the pass rate can reach 100%. Widely used in food and pharmaceutical industries. The effervescent tablet tube filling machine is a high-speed tube filling machine newly developed by our company, and the stable speed can reach 120 bottles per minute.

Function:
1. Double detection photoelectricity is adopted to ensure that the tube is not missing pieces.
2. The new design structure greatly reduces the equipment space.
3. The vibrating turntable feeding method is adopted to avoid material blockage and reduce tablet wear.
4. According to different pipe sizes, it is very convenient to replace the mold by pulling out.
5. Double key start system: one key to start the material in place, one key to start automatic operation.
6. It can be equipped with humidity detection and alarm device.
7. One set of system control can be connected with the labeling machine.




Technical parameters


Max. output

120tube/min

Max. tablet feeding speed

98000pc/h

Tablet diameter

16-33mm

Tablet diameter (minimum-maximum), in millimeters

16-33

Tablet thickness

3-12mm

Tablet hardness

≥40N

Bottling quantity

5-20pc

Tube length

60-200mm

Tube diameter

18-35mm

Power supply

380V 50HZ 3P

Power

4.5KW

Overall size

2500mm*1600mm*1700mm

Weight

About 480KG
