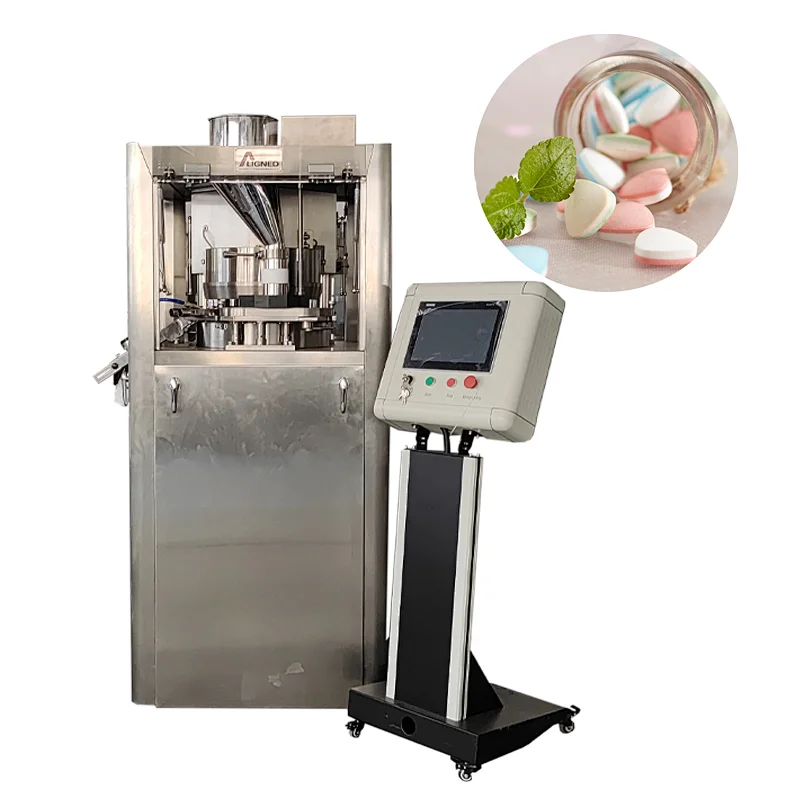

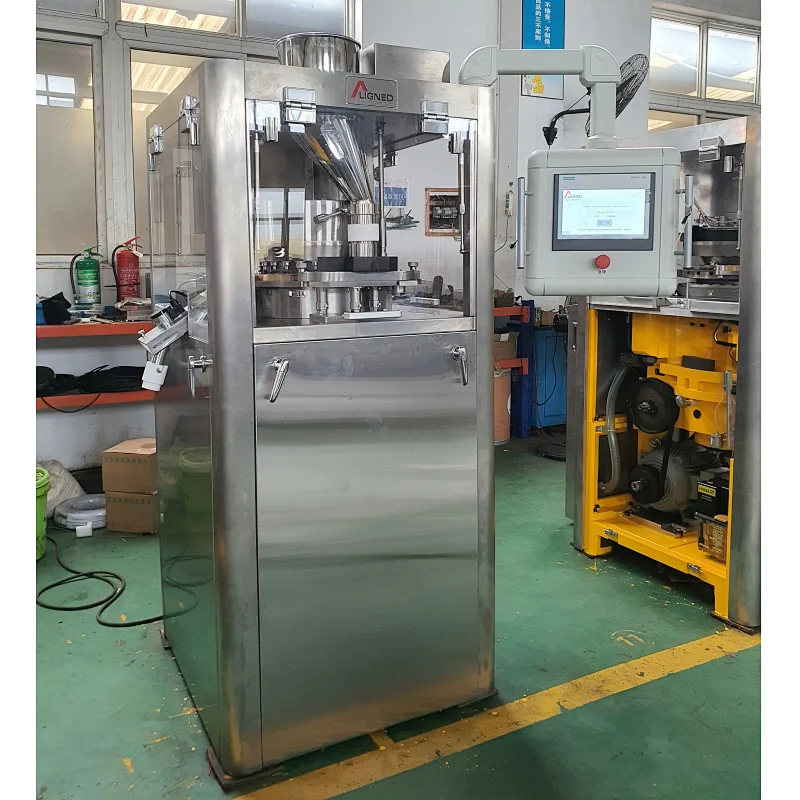

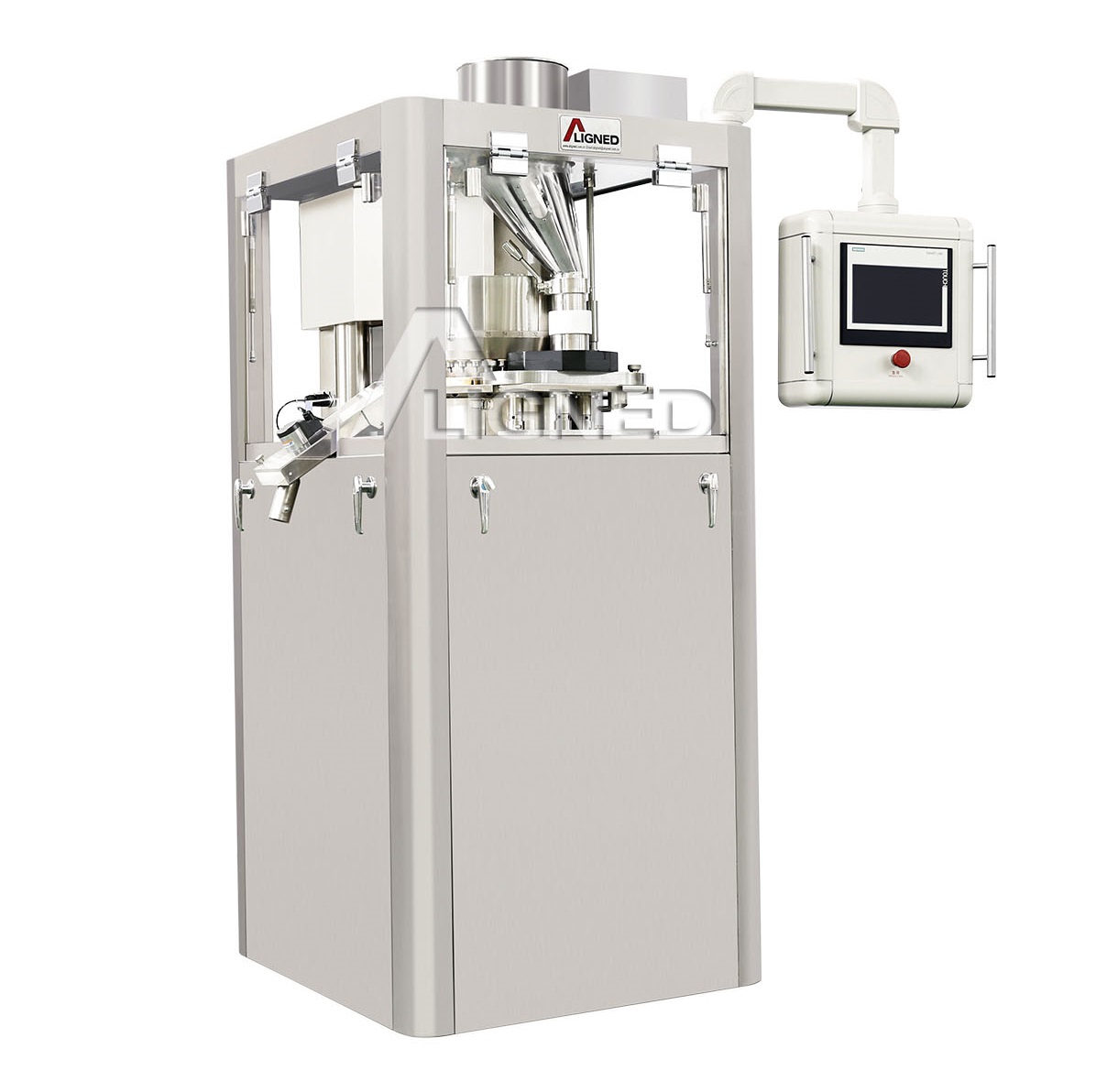

GZPK Series Automatic High-Speed Rotary Tablet Press

Model NO.
GZPK
Quantity:

The tablet compression machine fully complies with GMP pharmaceutical requirements. The tablet compression machine is a continuous automatic rotary tablet press that compresses powder and granular raw materials into tablets in pharmaceutical, chemical, electronic, food, laboratory and other industries. The main working process is divided into: filling; tableting;outputting. The Filling and tableting with adjustment control mechanism.

Features:

1.The tablet compression machine adopts a high-precision turntable, which can easily disassemble the upper, middle and lower molds by hand. The upper and lower molds are equipped with sealing rings to prevent oil leakage, and special tools are equipped to replace the sealing rings, which reduces the replacement time.
2.The forced feeder is designed with a three-layer impeller, which drives the three-layer impeller from bottom to top, avoiding material blockage.
3.The powder scraping device has built-in multiple springs, which can scrape powder more thoroughly.
4.Automatic control of slice weight via touchscreen.
5.Pressure sensors detect each die pressure. 6.Optional single or batch reject tablets.



Technical parameters

Model

GZPK-26GZPK-32GZPK-40

No. of station

263240

Capacity(tablets/h)

Max.

160000210000260000
Min.300003000030000

Rotation speed (rpm)

Max.

102105105

Min.

11rps/min

11rps/min

11rps/min

Max.tablet diameter

Ф25

Ф25

Ф25

Main pressure

80KN

80KN

100KN

Pre-pressure

20KN

20KN

20KN

Max. filling depth

20mm

16mm

16mm

Main motor power

11KW

7.5KW

7.5KW

Dimension

930(+438)*850(+438)* 1945
