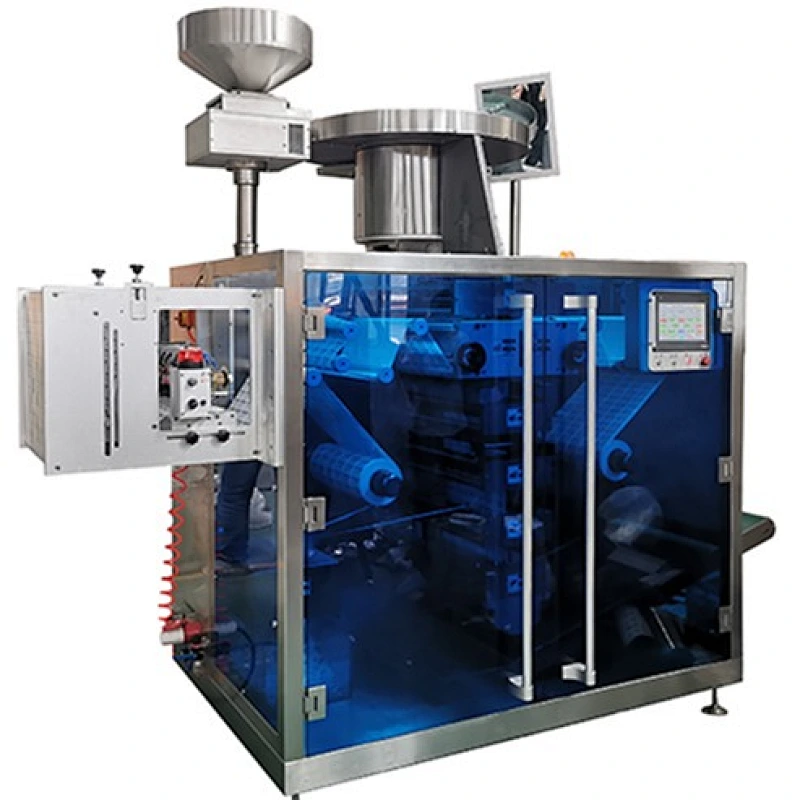

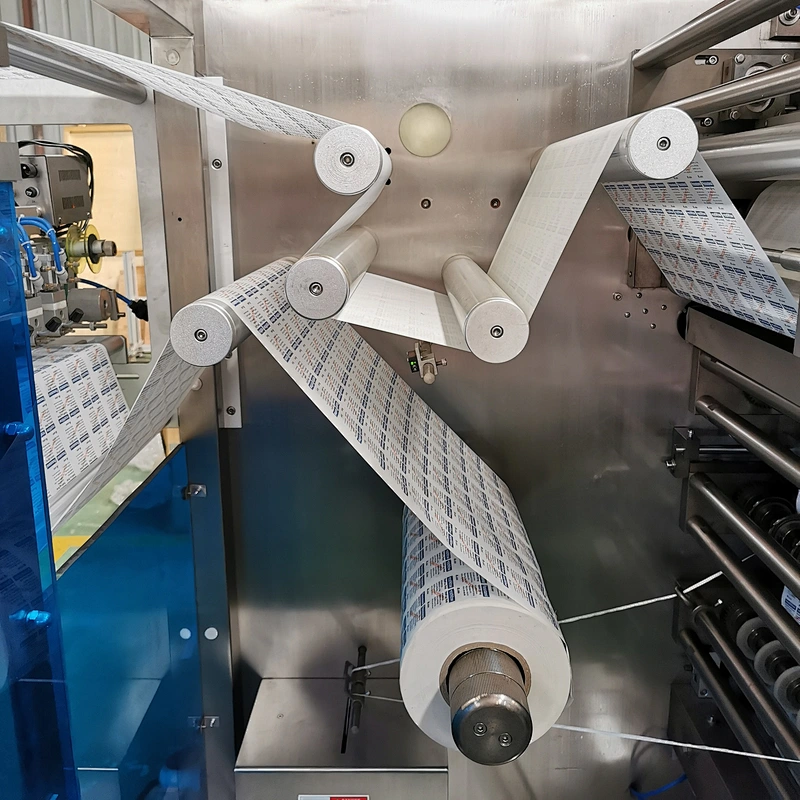

ALS Series High Speed Strip Packing Machine

Model NO.
ALS Series
Quantity:

The tablet strip packing machine is suitable for medicine, chemical, food requirement, The tablet strip packing machine can meet to higher capacity production requirement for tablet and capsule strip packing .
The tablet strip packing machine main function: Automatic feeding, sieving, automatic filling material, high speed heat-sealing, vertical and horizontal perforation, batch number printing, product cutting, defective sorting, finished product counting, waste material dispose, product output.


Features:
1.The tablet strip packing machine each mechanism adopt independent power unit, servo drive, PLC control, to ensure synchronism and steady at high speed running
2. Material controlling adopt ratchet mechanism, servo drive, PLC control, can effective higher feeding speed to meet machine high speed running
3. The diameter of heat pressing cam can be changed between 90-130mm, easy to change different specification.
4. Heating thermometric parts adopt infrared checking, PLC control, can effective avoid bad sealing, virtual stick etc phenomenon which caused by temperature error at high speed running.
5. Product feeding adopt roll cutting feeding, servo drive, PLC control, can effective raise machine speed and ensure synchronism and steady.
6. Defective sorting, product transporting adopt manipulator control, convenient for follow-up connect line.
7. Waste material mechanism adopt roll cutting type, convenient for waste material recycle.
8.The tablet strip packing machine without pneumatic component, no need compressed air.
9.The tablet strip packing machine suitable for AL/PL laminated foil packaging, also suitable for Paper/Foil or thin film/thin plastic film package.
10.The tablet strip packing machine design novel, beautiful, the cover consist of armoured glass and aluminum alloy frame to higher product level.

Technical parameters

Model

ALS-420

Cutting speed

20-80cut/min

Max Packing Width

420

Strip length

Can adjustment

AL/PL Laminated Foil

0.08*420mm

Power

5.2kw

Overall Dimension

1800*1100*2100(L*W*H)

Weight

1300kg
