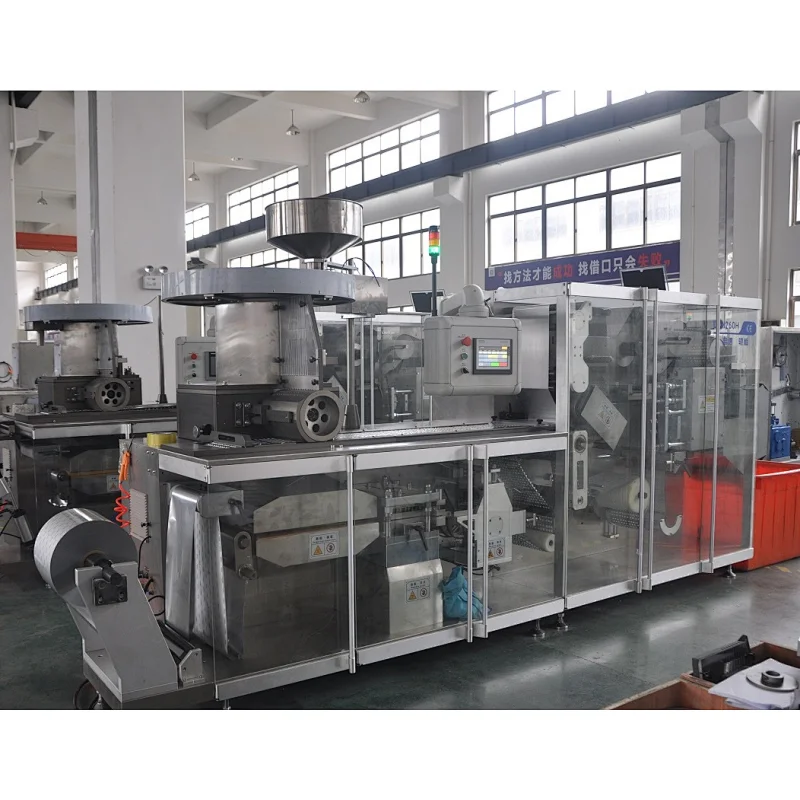

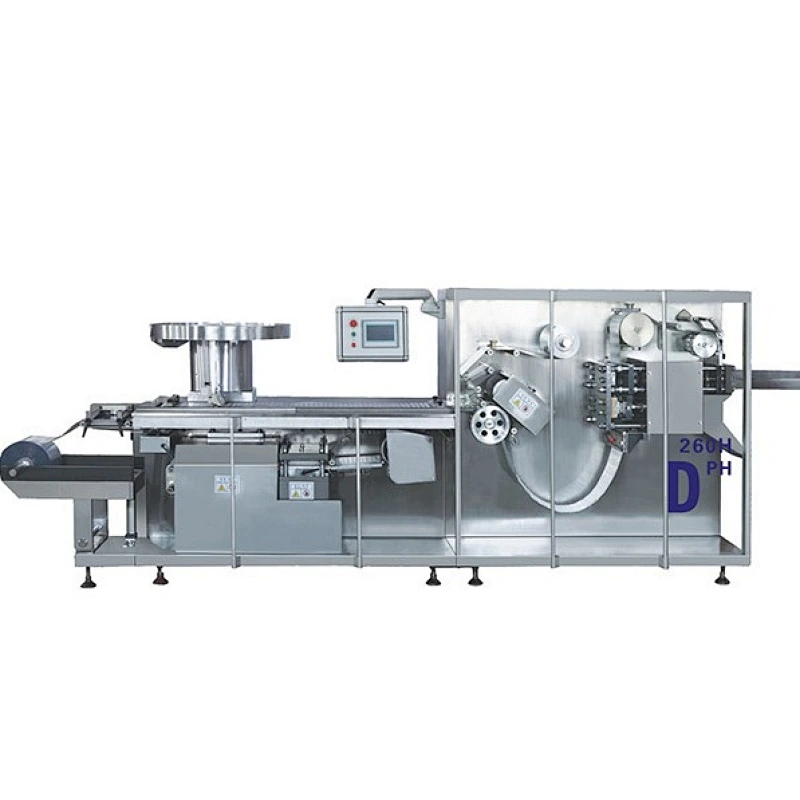

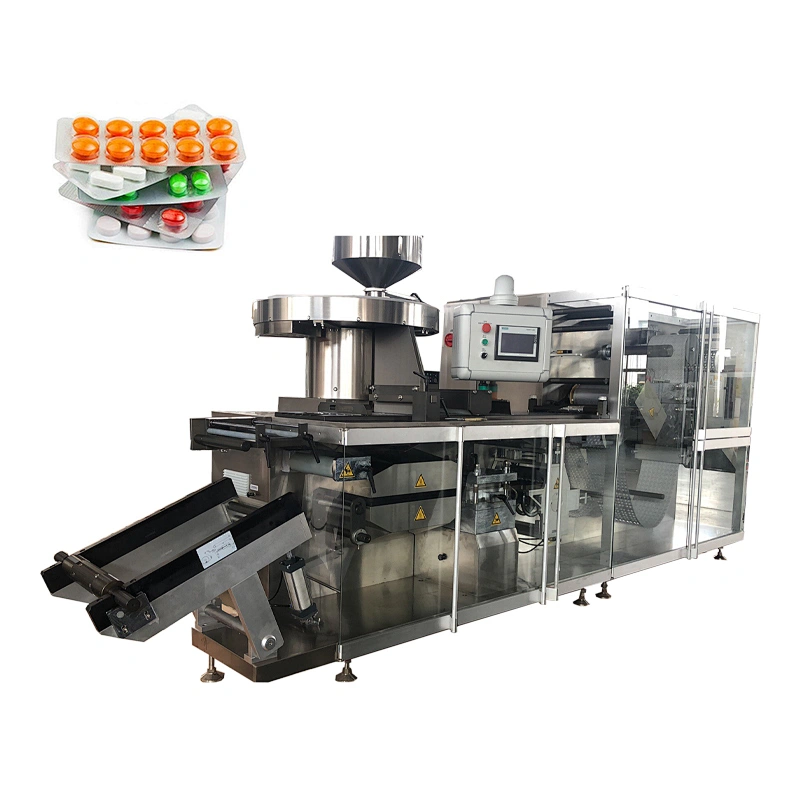

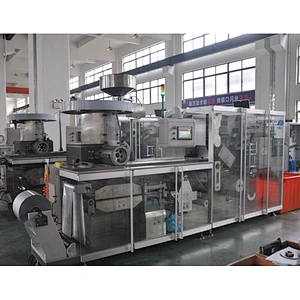

DPH Series Roller Type High Speed Blister Packing Machine

Model NO.
DPH Series
Quantity:

DPH blister packaging machine with advanced performance, simple operation, high output is the latest improved equipment in our company. The blister packaging machine is the best ideal packing equipment for large and medium-sized pharmaceutical plant, health care factory and food industry. The blister packaging machine is much faster and more productive than flat type blister packing machine. This blister packaging machine adopts no waste side punching, can save more than $50,000/year materials.

Features:

1.This blister packaging machine adopted double heater and heat plate for form, and roller type sealing, Thus increasing the speed of the machine

2.This blister packaging machine adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, which can ensure the length of blister traction adjustable within the range.

3.With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test ,failure automatic debug and alarm, automatic protection and stop running.

3.This blister packaging machine adopts auto photoelectric register device for patterns and words of Al foil driven by step motor, ensuring accurate registration and perfect performance.

4.Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.

5.Auto close and opening of forming plate helps delay the running time after dropping down the heat plate and also makes packing material efficiently used.

6.High Feeding efficiency, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)

7.Auto alarm and stop of blister packaging machine when PVC finds in lack or ruptured, provides much convenience to operator for timely PVC replacement or joint PVC.

8.All parts contact with material including hopper adopt high level stainless steel, which meets “GMP” requirements.


Technical parameters



Terms

DPH-320H

DPH-260H

Punch Frequency

ALU/PVC 60-200Times/Min

ALU/ALU 80Times/Min

Range Of Working Travel

100-280mm

Max. Formed. Area

320×280mm

260*280

Max. Formed. Depth

ALU/ALU 9mm

ALU/PVC 12mm

Main motor power

3KW

2.2KW

Supply power

3P 5Line 380V 50HZ 18.9KW

3P 5Line 380V 50HZ 15.5KW

Air pressure

0.1-0.15MPa

Air consumption

≥0.5 m3/min

Water consumption

1.5P with 60L/h

Size

4860X1480X1750mm

4860X1400X1750mm

Weight

4500Kg

4000
