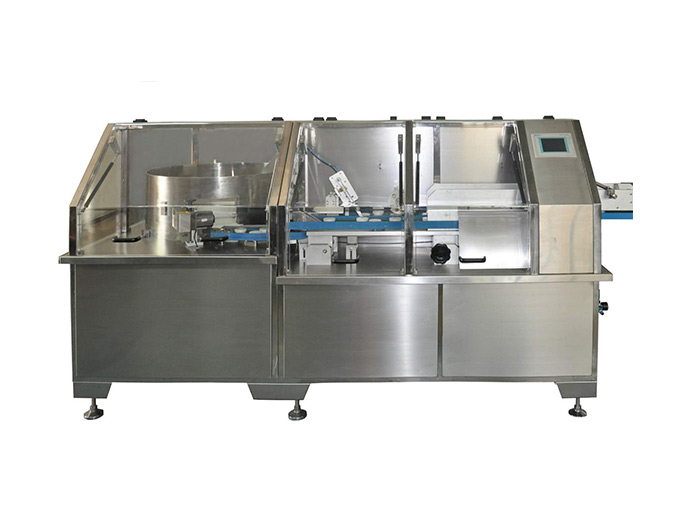

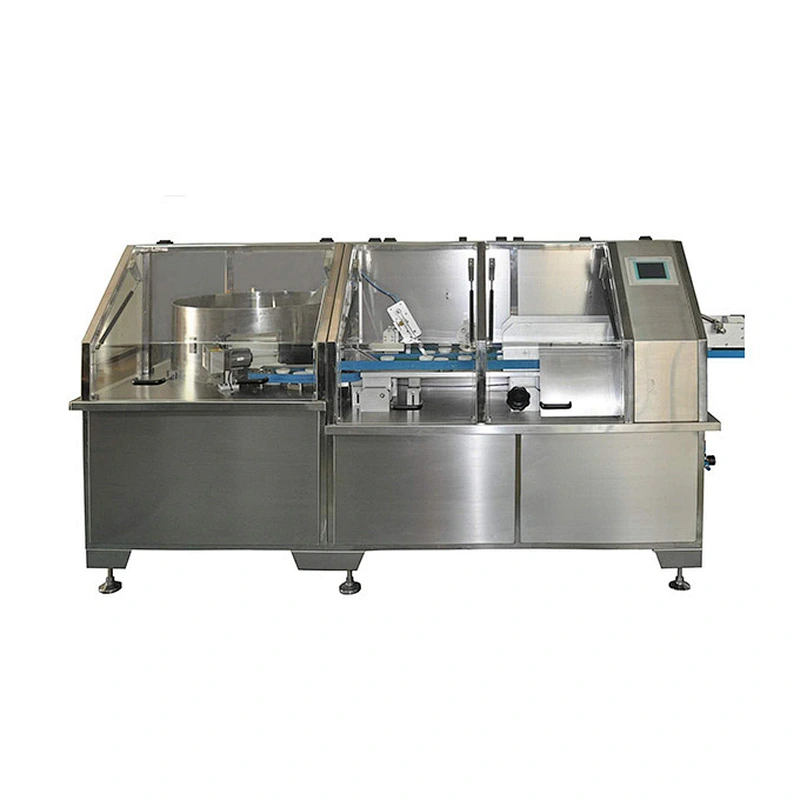

GLP-800 High Speed Bottle Unscrambler

Model NO.
GLP-800 High Speed Bottle Unscrambler
Quantity:

The automatic bottle unscrambler is one member of our plastic bottle packing line. automatic bottle unscrambler can high speed supply to bottle to next machine, such counting machine and filling machine etc, suitability to other machine and is able to supply bottle to two producing lines simultaneously through two separate conveyors

•The automatic bottle unscrambler is one member of our plastic bottle packing line. It has high speed, suitability to other machines and is able to supply bottles to two producing lines simultaneously through two separate conveyors.
•The automatic bottle unscrambler is based upon the most advanced technology and techniques, supplying bottles fast and stably. For various sizes of bottles users may only need to change the bottle unscrambling plate (if the bottle sizes are not of much difference, no need to change) and adjust the bottle supplying lane.
•The automatic bottle unscrambler has a container that can store 4000pcs plastic bottles inside. Users may also supply the container with bottles using an escalating system according to the number of bottles inside the container. A photoelectric sensor detects the bottle storage and feeds the bottle automatically into the container as settings made by the user.
•The automatic bottle unscrambler is easy to operate and it has PLC controlling system for the whole

Technical parameters

Model

GLP-800

Capacity

80-200bottle/min

Turn table diameter

Φ600-Φ800mm

Bottle diameter

Φ25-Φ75mm

Bottle height

30-120mm

Power supply

3P 380V 50HZ

Power

2KW

Dimension (L*W*H)mm

3000×1300×1350
