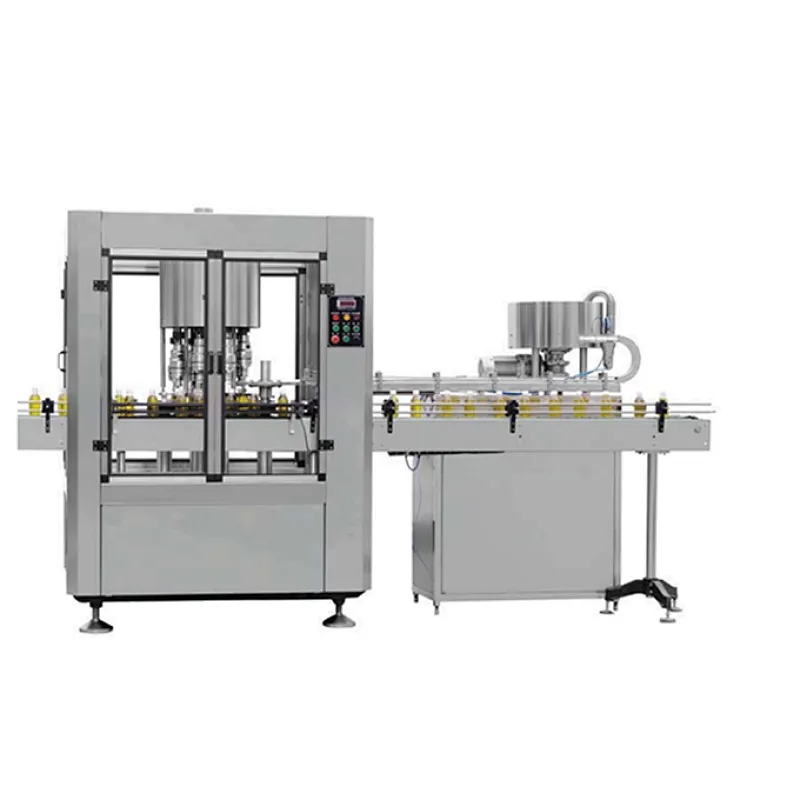

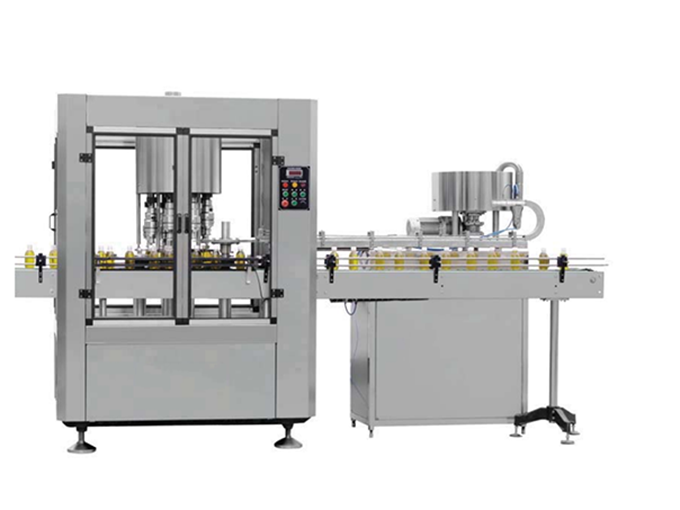

ALC Series Automatic Capping Machine

Model NO.
ALC Series
Quantity:
The bottle cap sealing machine for the application of plastic/glass bottles capping. The bottle cap sealing machine is composed by a conveyor, bottle index wheel, cap unscrambler, cap chute &placer, screwing capper. The bottle loading/unloading through conveyor manually, or automatic directly from an production line. The bottle cap sealing machine is designed and made accordance to GMP regulation.


Technical parameters


Die Amount

ALC/4

ALC/6

ALC/8

ALC/12

ALC/18

Applicable Bottle Size

Φ20-φ150mm

Cap Size Range

Φ12-φ70mm

Production Capacityr

60-80Bmp

80-100Bmp

100-130Bmp

130-160Bmp

160-210Bmp

Yield of Capping

≥99%

Power Supply

220/380V 50Hz

Power Consumption

≤2KW

Air Pressure Range

0.4-0.6Mpa

Speed Control

Frequency Conversion Adjustable Speed

Single Machine Noise

≤70DB

Net Weight

≈2000KG

Overall Dimensions

2000×1100×1600
