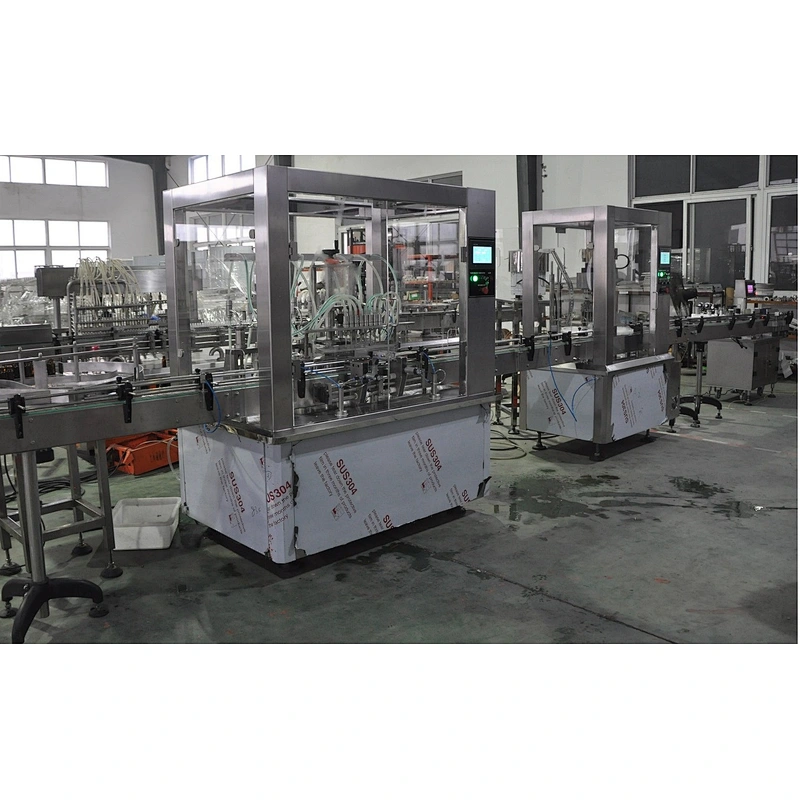

ALF Series Automatic Filling Machine

Model NO.: ALF Series
Minimum order quantity:: 1

Quantity:

Product Description

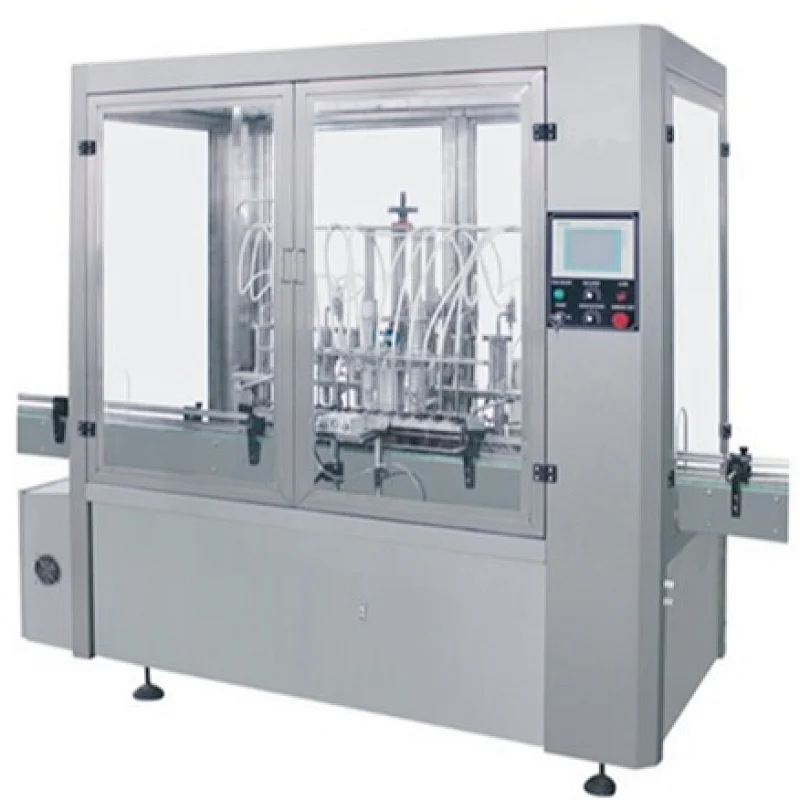

Fully automatic filling machine for the application of light liquid filling into plastic or glass bottles. The automatic filling machine is composed by a conveyor, SS316L volumetric piston pump, top-bottom filling nozzles, liquid buffer tank and bottle indexing system. The bottle loading/unloading through loading/unloading turntable or directly from an production line.

Feature:

1.The automatic filling machine is bottom-up fill control, prevent the occurrence of foaming.

2.Different bottle index device e.g. worm conveyor, pneumatic finger, index wheel to fit to different kinds of bottles.

3.The automatic filling machine adopt SS316 piston pump drive by servo motor system, stable and precision.

4.The automatic filling machine set the filling volume in HMI, easy changeover size.

5.The automatic filling machin no fill when bottles backup downstream and less bottles load upstream.

6.The automatic filling machin no fill while nozzles misaligning inside of bottle

7.The automatic filling machin no fill with lower level of less product in buffer tank, which mounted level sensor.

Technical parameters

Model	ALF-4	ALF-8	ALF-12	ALF-16	ALF-20	ALF-24
Filing Nozzles	4	8	12	16	20	24
Filing Range	20-500ml
Idea Filing Range		5-20ml	20-60ml	60-150ml	150-250ml	250-500ml
Filing Speed	40-60	60-80	70-100	90-120	120-160	160-180
Filing Precision	≤±1%
Air Pressure Range	0.4-0.6Mpa
Power Supply	220V380V 50/60Hz
Power Consumption	0.75KW	0.75KW	1.2KW	2.2KW	2.2KW	2.2KW
Single Machine Noise	≤50db
Net Weight	500KG	800KG	1000KG	1300KG	1500KG	1700KG
Overall Dimensions	1300×1000×1800	1600×1000×1800	1900×1000×1800	2300×1000×1800	2300×1000×1800	2600×1000×1800
