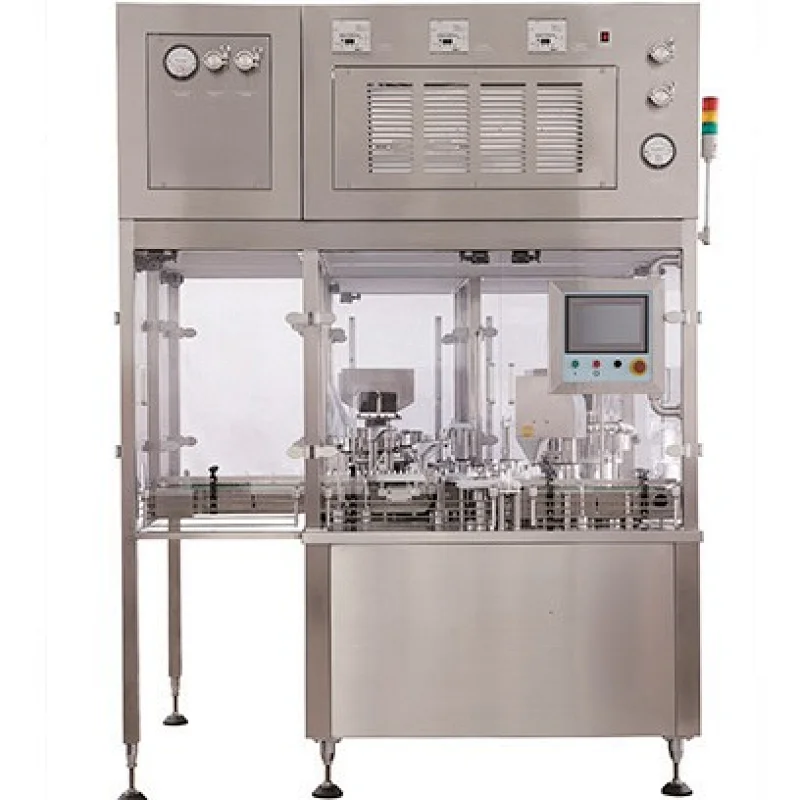

ALY Series Auto Eyedrop Filling Monobloc

Model NO.
ALY Series
Quantity:

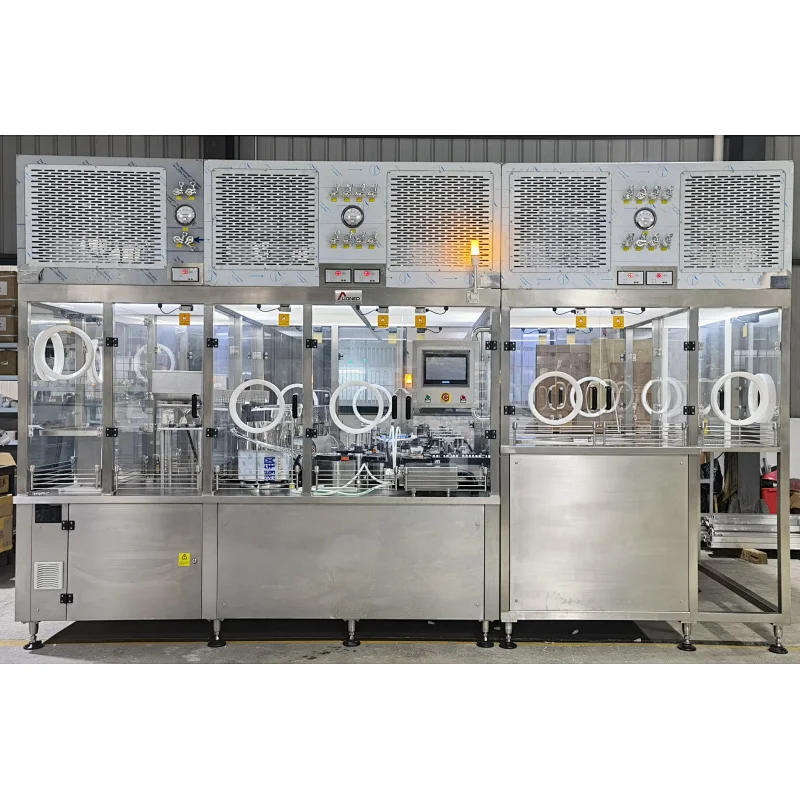

The eyedrop filling machine is specially used to production eye drops, the eyedrop filling machine is combined with filling, plug inserting and cap screwing in one unit, and also meet to clean A class.


Feature

1.This eyedrop filling machine with novel design philosophy, its manufacture, safety performance are carried out according to European standards and conform to GMP requirement as well.

2.The eyedrop filling machine is furnished with highly efficient filters of international famous brands to effectively ensure sterility and cleanness of class-A area. Air blower, filter and other equipment adopt sinking-type design structure to realize easy, reliable overhaul and replacement.

3.Materials adding is completely isolated from operating area. Those areas requiring artificial interference are furnished with glove boxes to prevent class-A area from being destroyed.

4.The eyedrop filling machine through machine-gas -electricity combination, full-automatic operation can be realized including bottles entering, filling, adding of inner corks and outer caps, caps tightening and sorting of defective.

5.Filling adopts high-precision ceramic plunger pumps or peristaltic pump structure. High-precision filling volume, non-leakage and high efficiency are ensured through servo drive quantification.

6.Bottle mouths are added with inner corks, outer caps adopt structure of mechanical hands to ensure accurate positioning fast and efficient adding of caps.

7.The inside of caps tightening device adopts German torsion clutch or servo power twister to effectively ensure bottle caps are undamaged under the premise that they are tightened.

8.Filling is not conducted when bottles are not in place. Adding of outer caps is not conducted when bottles are not in place. Adding of outer caps is not conducted when inner corks are not in place. Defective products are automatically sorted out via sensor testing and conveyed into defective area for inspection, thus isolating defective products.

9.Main actuating mechanisms of this eyedrop filling machine all adopt servo motors in effective combination with different forms of cylinders and unique mechanical structure. It is a new generation of special filling equipment initially developed in China, with high degree of automation, high finished product ratio, wide adaptability, good stability and high output etc.

Technical parameters

Model

ALY-100

ALY-200

Filling volume

1-10ml

Capacity

Max. 100bottle/min

Max. 200bottle/min

Filling accuracy

±0. 1%

Air pressure

0.4-0.6

Air consumption

0.1-0.5

Power

5KW

7KW
