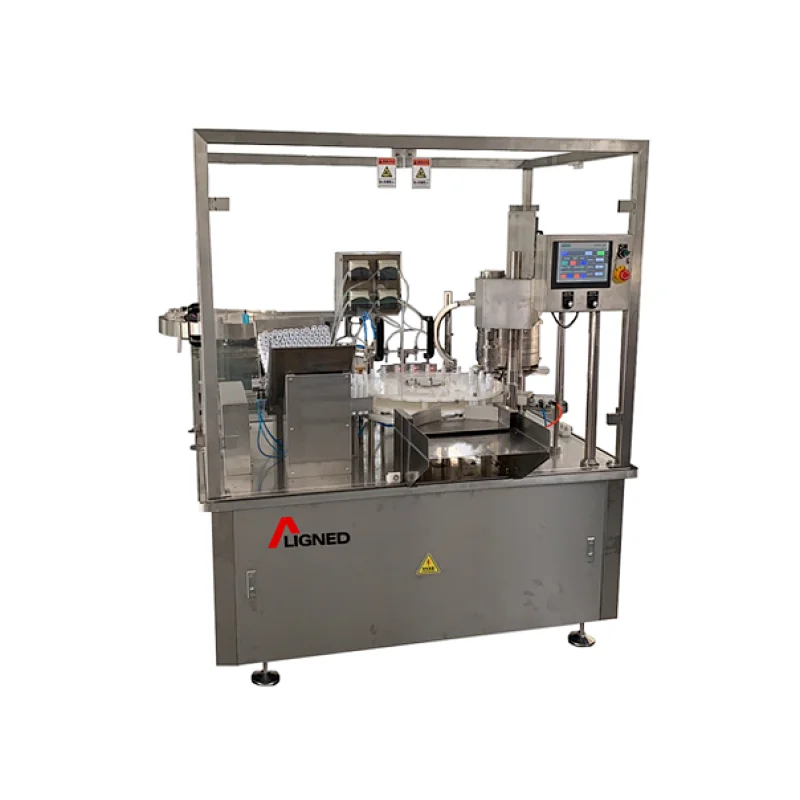

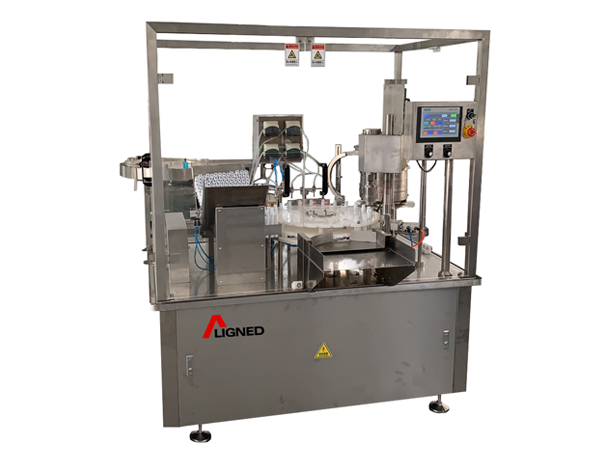

Automatic Bottle Filling Capping Machine
Automatic Bottle Filling Capping Machine

Automatic Bottle Filling & Capping Machine

Model NO.
Automatic Bottle Filling & Capping Machine
Quantity:
Automatic Bottle Filling Capping Machine is mainly used for round bottle or special-shaped bottle filling and capping. The Automatic Bottle Filling Capping Machine integrates the functions of unpacking empty bottles, air washing bottles, liquid filling, capping and can automatically complete the procedures of unpacking bottles, washing bottles, filling, capping and labeling etc.


Technical parameters


 Applicable Liquid No particles/ no gas / low viscosity/ non-corrosive liquid
 Dimension 1410*1170*1800mm
 Filling Accuracy ±1-2%
 Filling Mode  4 heads peistaltic pump
 Filling Volme 10ml-20ml
 Production Capacity 60-80bpm (according to material)
 Voltage 380V / 50Hz
 Power Consumption5.0KW
 Air Source 0.3~0.5Mpa
 Air Consumption 2-4m³/H
 Total Weight  Around 600kg
