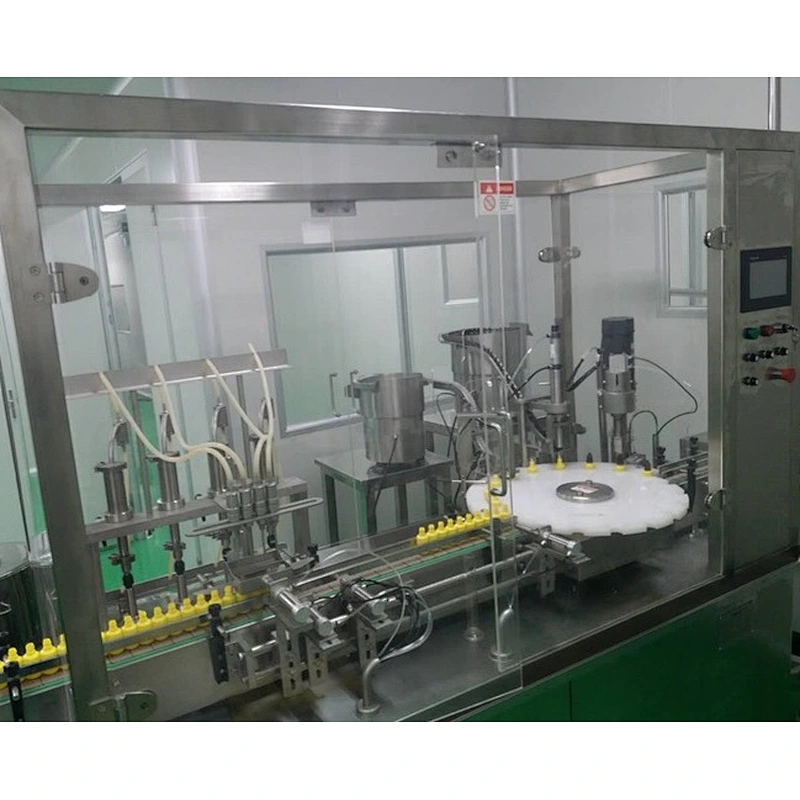

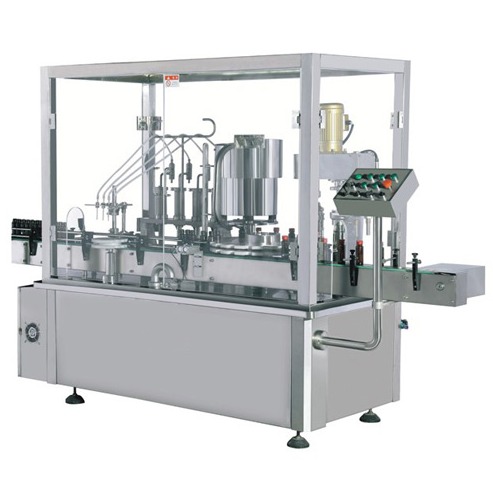

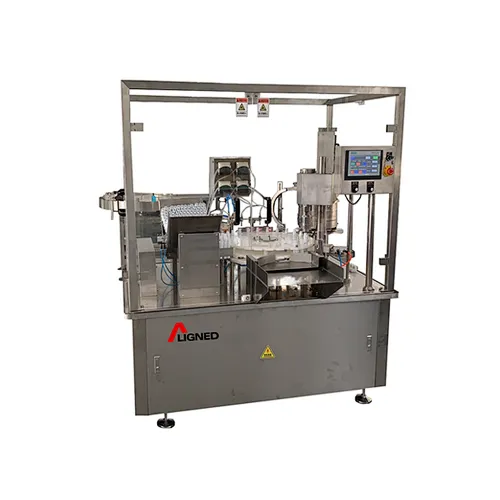

ALFC Series Auto Liquid Filling And Capping Monobloc

Model NO.
ALFC Series
Quantity:

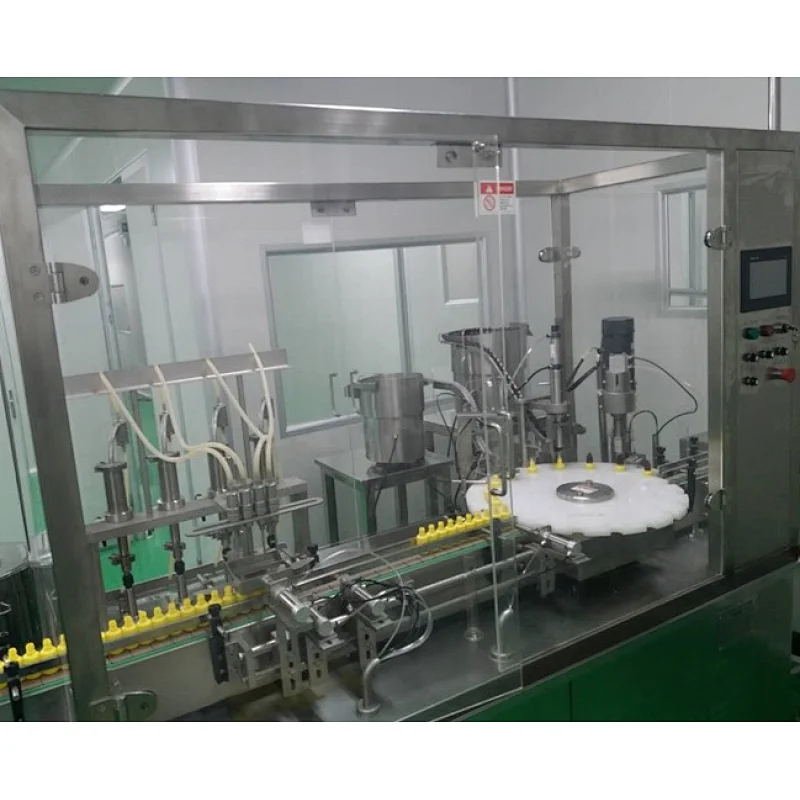

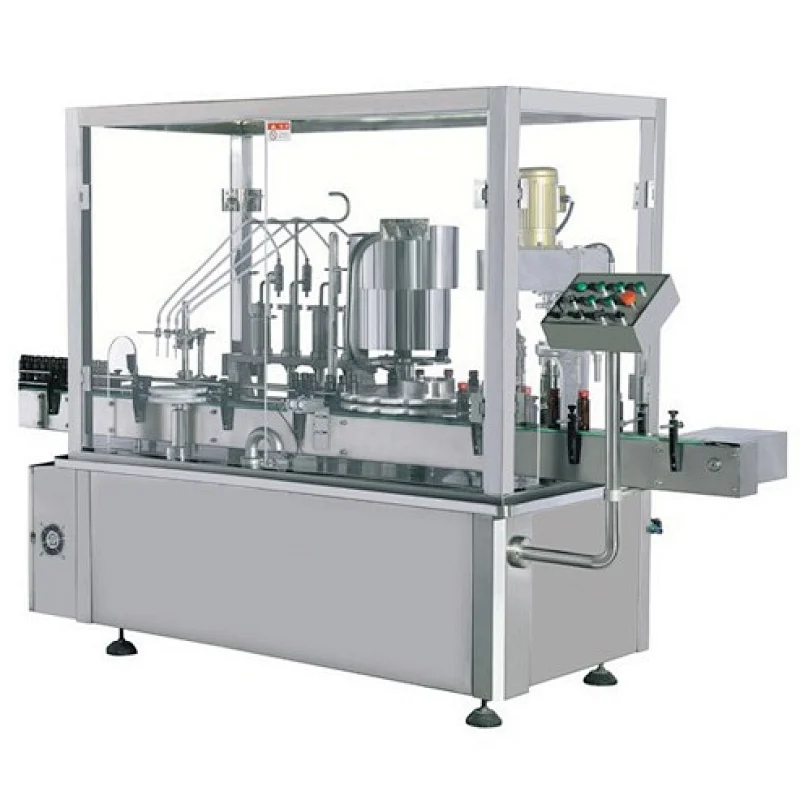

The filler capper machine is customized for bottle liquid filling and plastic screw cap capping (alternative alum. seaming). The filler capper machine is composed by a wide in-feed conveyor, SS316L volumetric piston pump with servo system, track top-bottom filling nozzles, liquid buffer tank, bottle index wheel sets, rotary turret, capping assembly etc.

Features

1.The filler capper machine adopt SS316L Piston Pump, high filling accuracy
2.Index wheel overload protection installed
3.Safety protection cover, stop filler capper machine when you open door
4.Automatic reject cap remains on capper head
5.Monobloc design for save space and labor costs
6. Liquid buffer tank for store liquid



Technical parameters

Model

ALFC8/2

ALFC4/1

Filling volume

20~1000ml

Filling pump range

20-100ml 50-250ml100-500ml200ml-1000ml

Cap type

Alternative Screw on cap, alum. ROPP cap

Capacity

3600~5000bph

2400~3000bph

Filling accuracy

≤±1%

Capping accuracy

≥99%

Power supply

220V 50/60Hz

Power

≤2.2kw

≤1.2kw

Air pressure

0.4~0.6MPa

Weight

1000kg

800kg

Dimension

2200×1200×1600

2000×1200×1600
