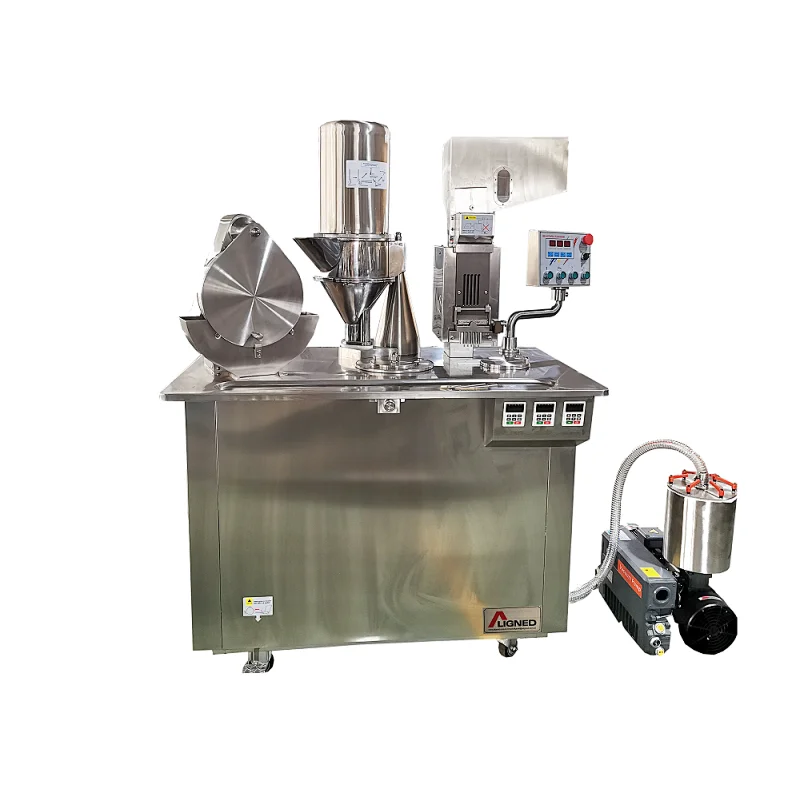

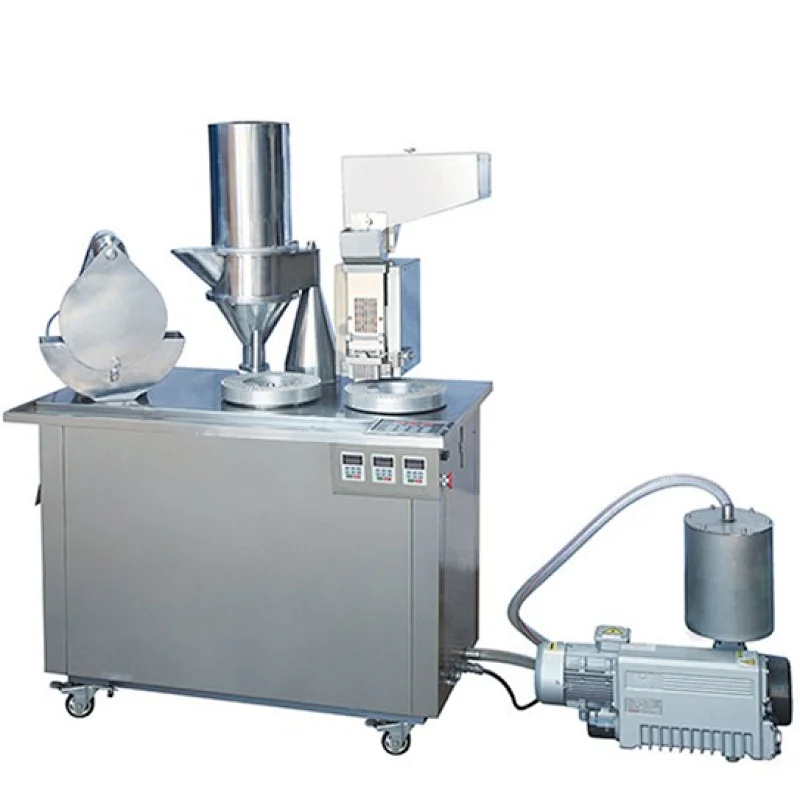

CGN-208D Semi-Automatic Capsule Filling Machine

Model NO.
CGN-208D
Quantity:
The semi automatic capsule filling machine suitable for filling powder and pellet material in pharmacy and health food industry. The semi automatic capsule filling machine can meet laboratory require and low budget require.

This semi automatic capsule filling machine has independent empty capsule feeding station, powder feeding station and capsule closing station. The medium process needs to be processed by hand. The semi automatic capsule filling machine adopts variable speed control, the operation is very easy and simple, and the powder material feed correctly. The semi automatic capsule filling machine body and working table adopt SS material; meet the sanitary requirement of pharmacy.

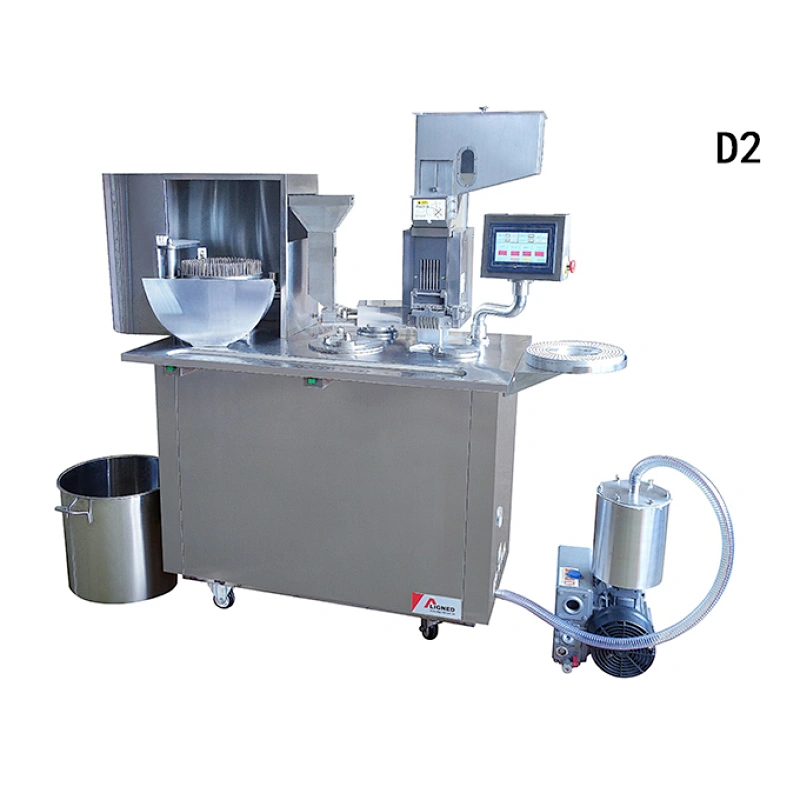

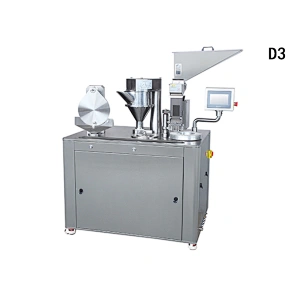

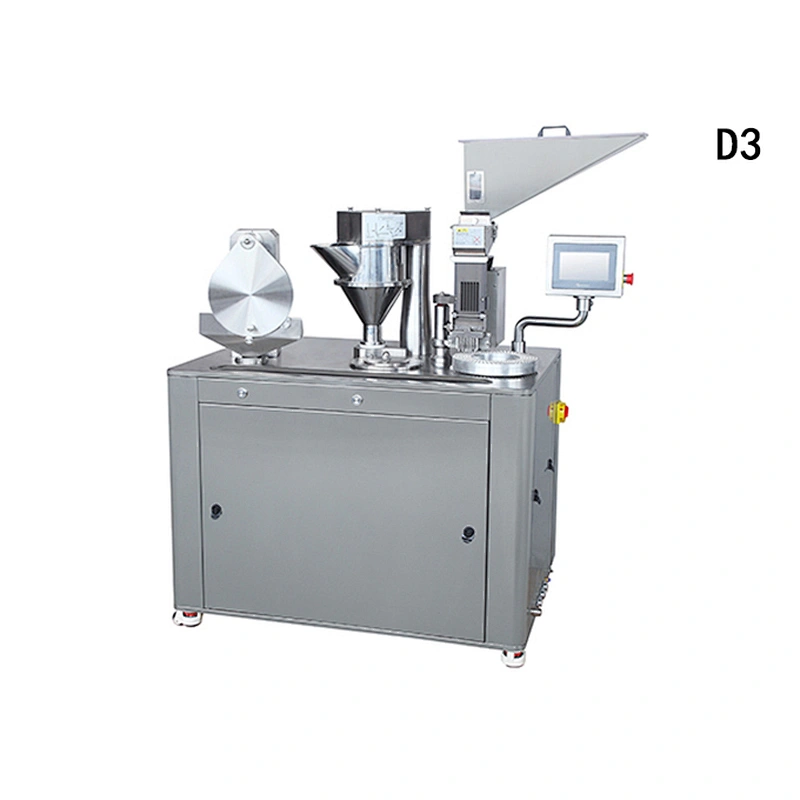

So far we have developed three generations of equipment, from button control to touch screen control, vertical to horizontal closed capsule, the internal structure is more concise


Technical parameters

The time of replacing debugging mold

5-8mins(for beginners)

Production rate

1-2.5 ten thousand/hour(depending on capsules No.)

Applicable capsules

000#,00L#,00#,0#,1#,2#,3#,4#,Mechanism standard capsules

Filling material

Without a sticky and wet powder,small granules

Total power

4.0kw

Air pressure

0.03m^3/min 0.6Mpa

Vacuum pump

Pump capacity is 40m^3/h

Machine dimension

1140*700*1630mm

Packing dimension

1650*800*1750mm

Net weight

350kg

Gross weight

380kg
