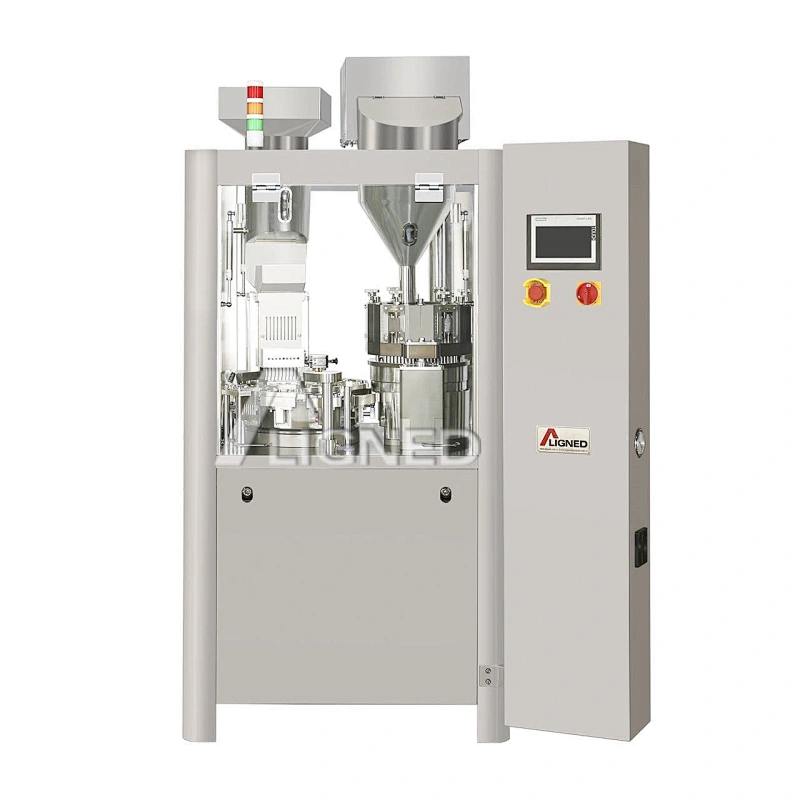

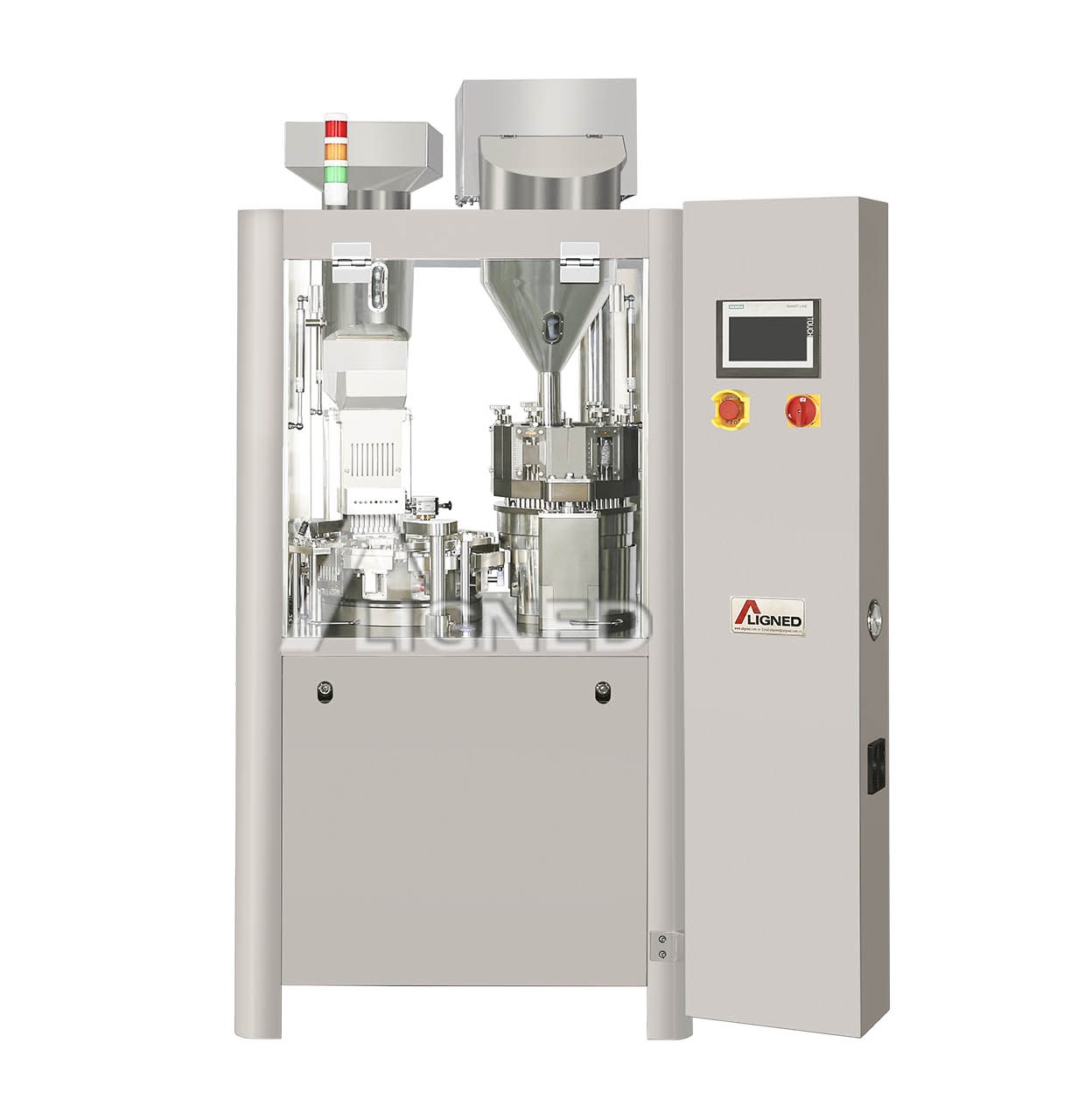

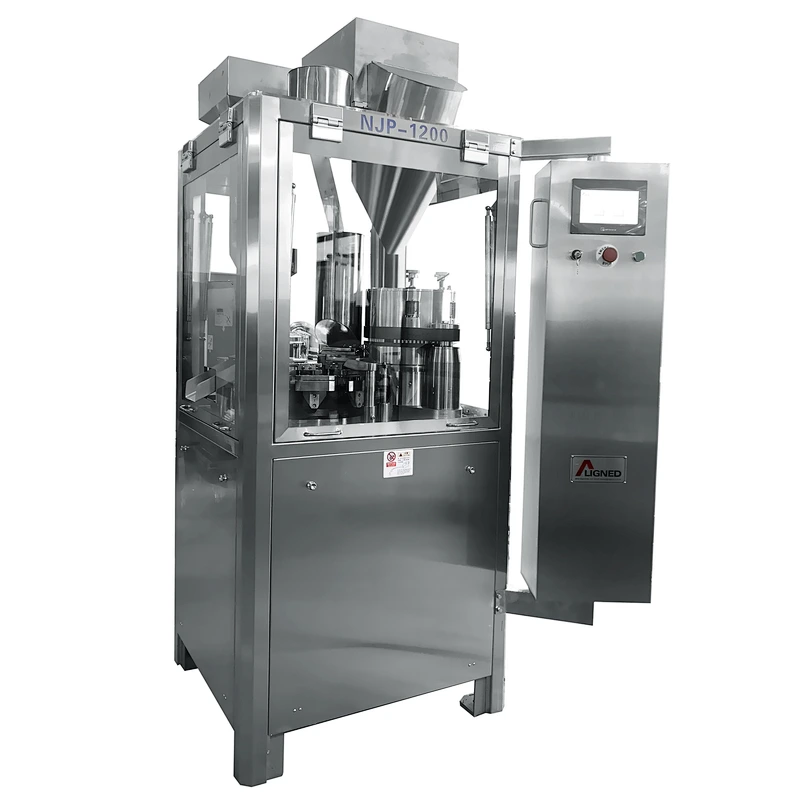

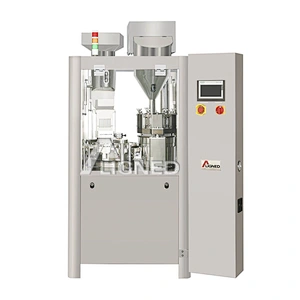

NJP Series Automatic Capsule Filling Machine

Model NO.
NJP Series
Quantity:
New generation capsule filling machine is a kind of automatic hard capsule filling equipment with intermittent operation and orifice filling. The capsule filling machine is optimized according to the characteristics of traditional Chinese medicine and the requirements of GMP, featuring compact structure, low noise, accurate filling dose, complete functions, and stable operation. It can simultaneously complete the actions of sow capsule, open capsule, filling, rejection, locking, finished product discharge and module cleaning. It is a hard capsule filling equipment for manufacturers of medicines and health products.

Function
1.Automatically change the direction of the capsule structure.
2.Capsule separation adopts the method of vacuum suction capsule body, and the buffer structure is designed to reduce the loss and noise.
3.Plug-type metering and filling device for powder, slider-type metering and filling device for pellets.
4.The filling rod station adopts a modular design, which is easy to disassemble and replace, and is marked with a scale to adjust the filling volume.
5.No material remains in the feeder cavity, reducing material waste.
6.When the viscosity of the material is high, the material on the punch rod can be scraped off by adjusting the cam to reduce sticking and punching.
7.Customized high-quality sealing rings greatly reduce the mechanical movement gap of powder entering, and all sealing rings can be easily disassembled and replaced independently.



Technical parameters


Model

NJP-200

NJP-400

NJP-800

NJP-1200

NJP-2300

NJP-3500

Capacity(Pcs/h)

12000

24000

48000

72000

138000

210000

Machine weight(kg)

700

800

900

1100

1500

2200

Overall dimension(mm)

610*680*1800

760*780*1800

840*820*1900

860*940*1900

1010*1080*2000

1170*1560*2000

Power supply

380/220V 50Hz

380/220V 50Hz

380/220V 50Hz

380/220V 50Hz

380/220V 50Hz

380/220V 50Hz

Total power(KW)

3345810.5

No.of segment bores

23691825

Vacuum

20m3/h-0.04-0.08Mpa

40m3/h-0.04-0.08Mpa

63m3/h-0.04-0.08Mpa

120m3/h-0.04-0.08Mpa

Making rate

Empty capsule 100%Full,capsule over 99%

Suitable for capsule

00,0,1,2,3,4,5#

Filling error

±2.5%-±3.5%
