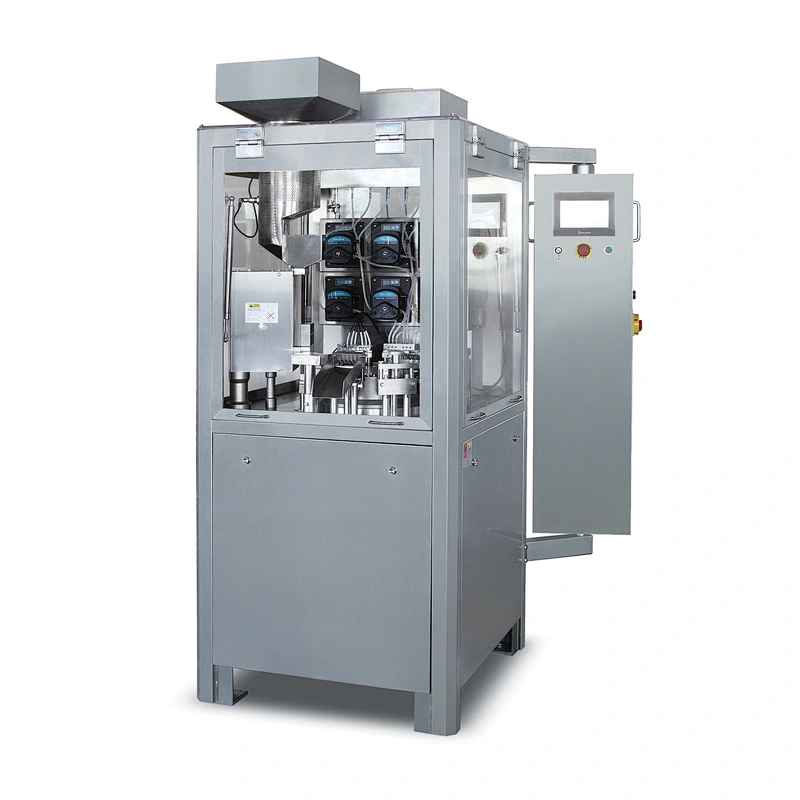

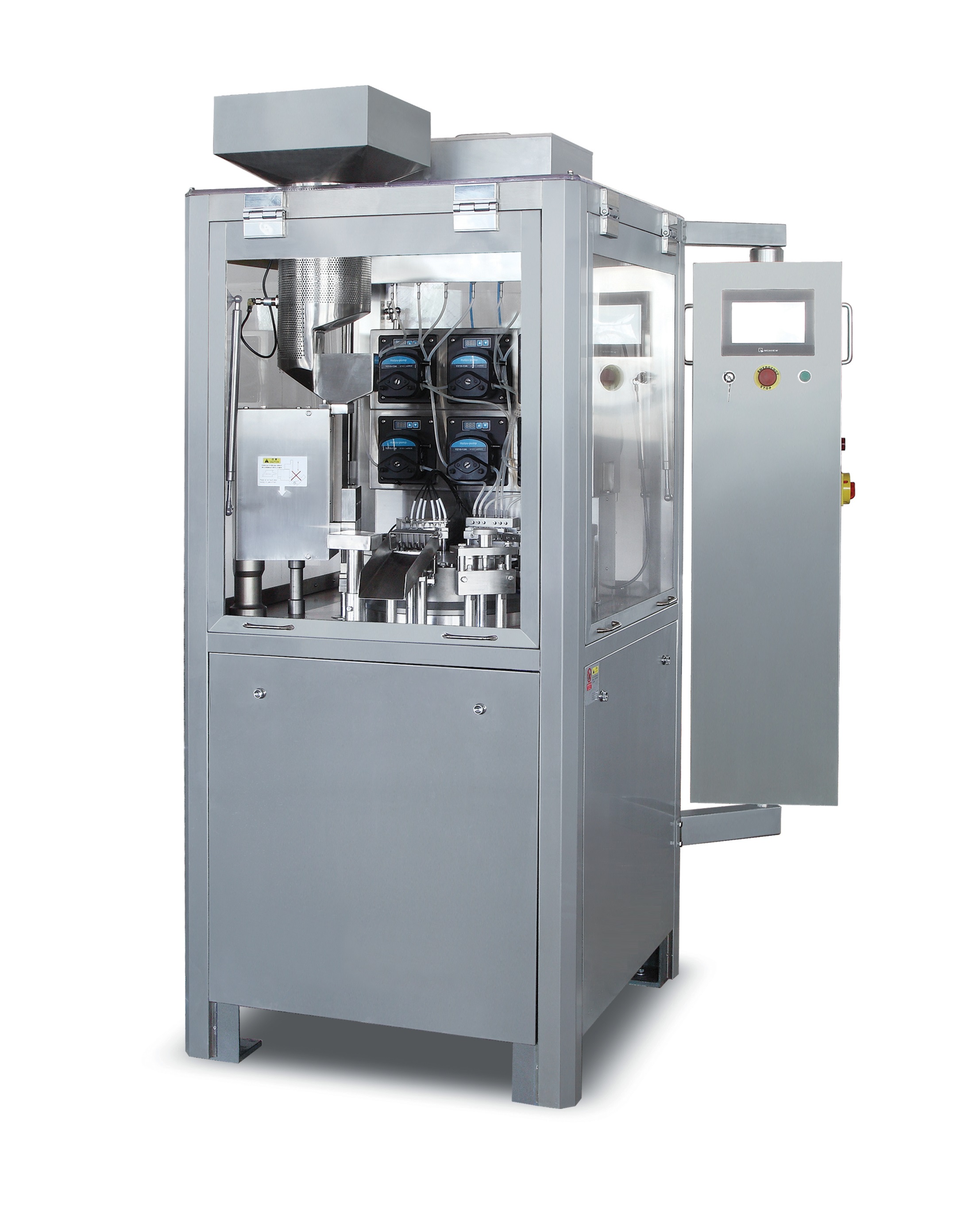

NJP-350 Automatic Liquid Capsule Filling Machine

Model NO.
NJP-350
Quantity:
The liquid capsule filling machine special design can filling oil and small tablet into the capsule for pharmaceutical and foodstuff etc.

Features
1. Touch-Screen, PLC program control panel with LCD.
2. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
3. Easy speed selection and closed capsule length adjustment.
4. Electrical Appliance control system approved to CE, and international standard.
5. Quick and accurate change part set-up easy to remove rotary table and ring carrier assembly.
6. Fully enclosed rotary table and dosage station for integration of the whole capsule filling plants.
7. Large cam mechanism keeps the rotating table of mould together with the whole equipment running in balance, and completely guarantees the machine operating with highest precision and accuracy.



Technical parameters

Model

NJP-350

Weight

900kg

Dimension

1020×860×1970mm

Motor Power

5.75kw

Voltage

Three-phase four wire AC 380V;50Hz

Max Capacity

350pcs/min

Method of heat & dry

Heating by external stainless-steel heater, hot air circulation in centrifugal fan

Capsule Size

00#~5#,Safety type capsule A~E

Rate

≥99.5%

Noise

≤75dBA

Accuracy

Above 300m ≤±3%(After granulation, the pellets within 40~80 mesh)

Compressed Air

0.06m3/min 0.3Mpa

Water Requirement

Water ring vacuum pump with the use of water tanks, but also external water sources

Vacuum Degree

-0.02~-0.06 MPa

Water Flow

250L/h

Inlet Diameter

20mm

Inside Diameter Of Drain Pipe

27mm

Working Environment Temperature

21℃±3℃

Plant Height Requirements

Manual feeding≥2.6m,Vacuum feeding≥2.8m

Relative Humidity of Working Environment

40~55%

Air Exhaust Volume

300m3/h

Control System

frequency stepless speed regulation,PLC control
