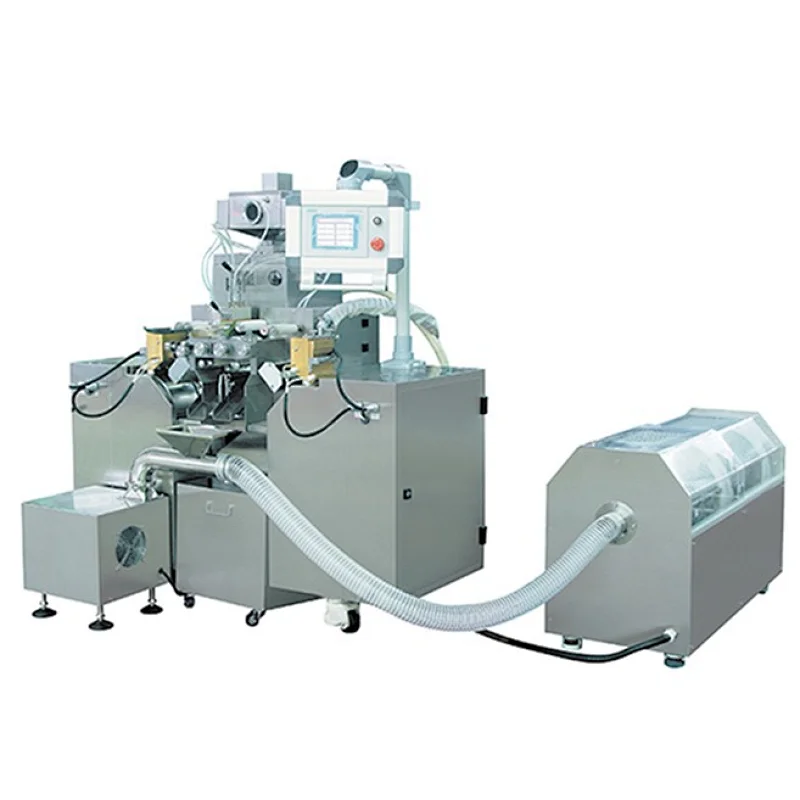

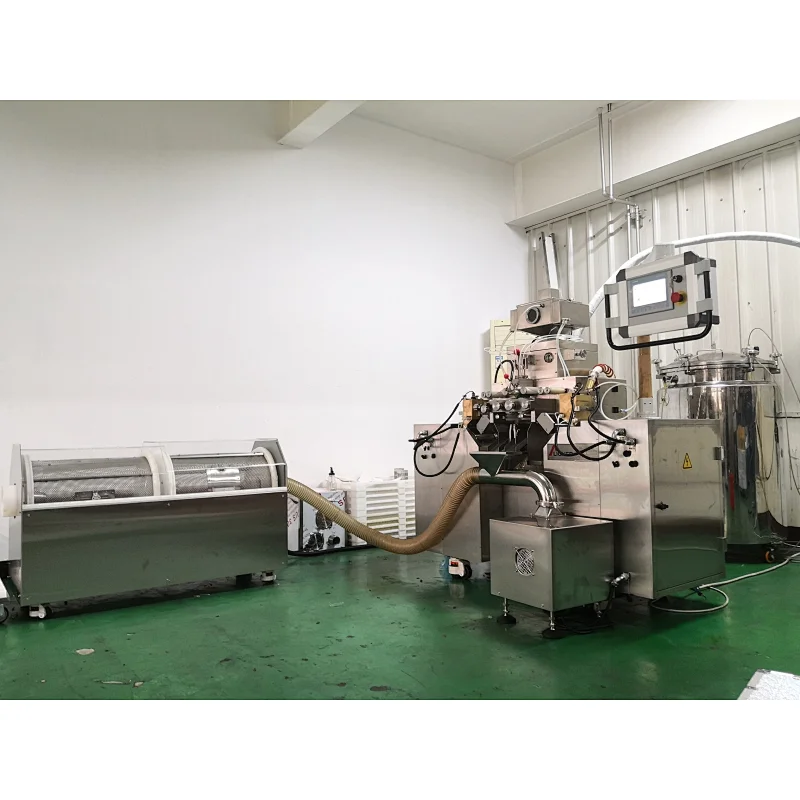

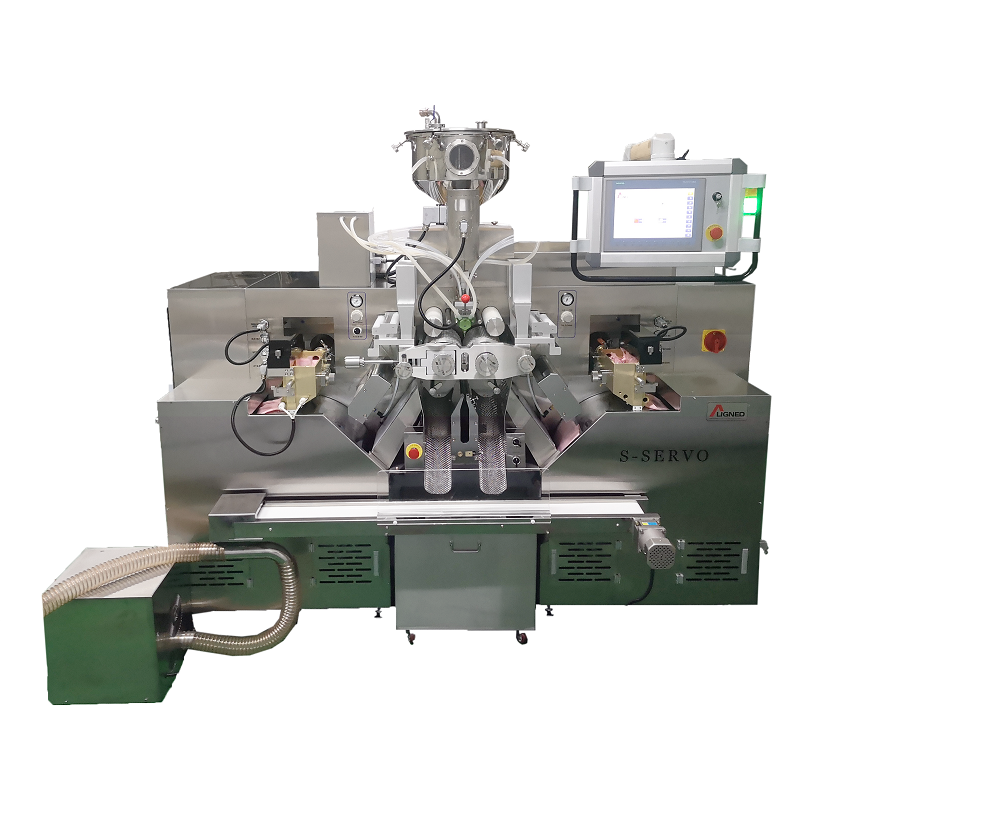

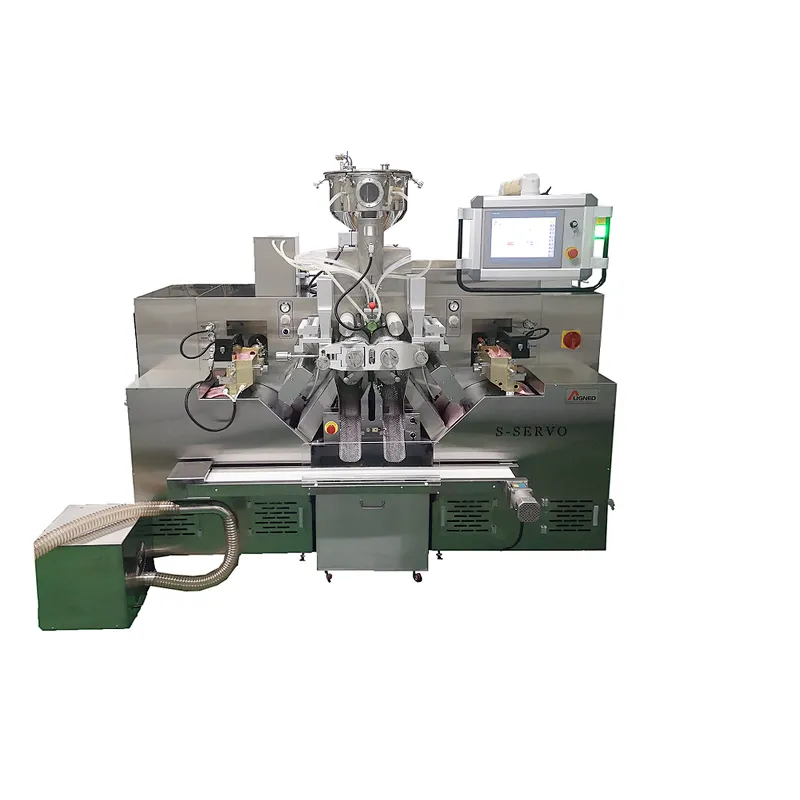

YWJ Series Soft Gelatin Encapsulation Machine

Model NO.
YWJ Series
Quantity:
Integrated the latest global encapsulation technology with our gelatin encapsulation experience, YWJ fully automatic soft gel encapsulation machine is a new generation of soft gelatin encapsulation machine that has extremely large productivity (the largest in the world).The new soft gel encapsulation machine manufacturing facility features leading technology, simple but beautiful appearance, the soft gelatin machine is another excellent product by our company for soft gelatin capsule clients around the globe.

Function
1. Water-bath Injector, the temperature fluctuated in +/-0.1℃, save 14% gelatin; improve 1.5% rate of finished products; and save the maintained cost and time.
2. Computer control the plunger pump, improve the precision of medicine injection volume, and save more medicine and material cost.
3. The holes of the left and right main axis are processed with extreme accuracy on the boring machine imported from Switzerland. Though the mould roll has been extended in length, can be keep high coaxial degree that guarantees the smooth seam and finished product rate of the softgel capsule.
4. Bigger cam drive plunger pump, can provide stronger to plunger pump. That make soft gel encapsulation machine can inject widely high viscosity of raw material, such as Suspension, Propolis (Bee glue), Soft phospholipids, Liquid calcium and Herbal suspension.
5. Professional PID temperature control technology is adopted on the soft gel encapsulation machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of soft gelatin capsule.
6. The soft gel encapsulation machine adopt micro-lubrication device, can be adjust lubrication volume in fine volume, save cost.
7.The soft gel encapsulation machine adopt pneumatic clamping system makes capsule filling process more simple and reliable.
8.Motor hoisting injector can be fine located position as requirement, and reduce the workload of operator.
9.Speed of each gelatin film drum and main axis can be adjusted respectively by respectively invertor; that is controlled by operator according to actually requirement.

Technical parameters

Model

YWJ100

YWJ200

YWJ250-lll

YWJ315

Dimensions of rolling mound

Φ80x100mm

Φ113x200mm

Φ150x250mm

Φ157x100mm

Mould cavity(8#OV)

90pill

260pill

504pill

629pill

Rotating speed of rolling mould

0-5rpm

0-5rpm

0-8rpm

0-5rpm

Single plunger feeding volume

0-1.5ml

0-2ml

0-2ml

0-2ml

Plunger number

6

142024

Loading accuracy

± 1.5%

± 1.5%

± 1.5%

± 1.5%

Capacity

21800

62400

205800

150960

Whole machine powder

5kw

12kw

12kw

12kw

Weight

400kg

1300kg

1500kg

1500kg

Overall dimension

1400x620x1350mm

200x910x1900mm

2200x1000x1900mm

2100x1130x1900mm
