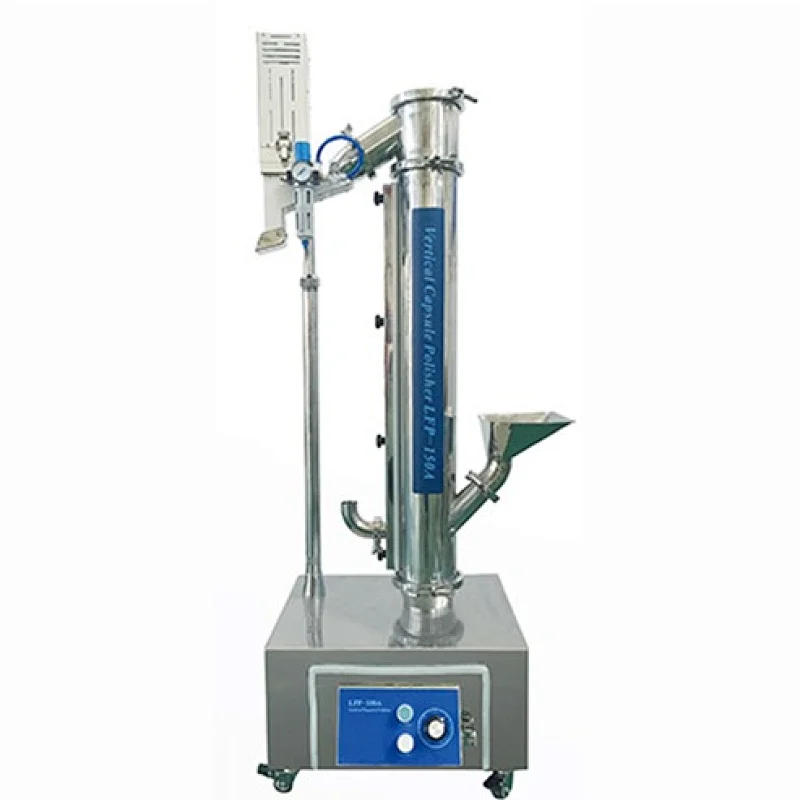

LFP-150A Series Capsule Polishing Machine
LFP-150A Series Capsule Polishing Machine

LFP-150A Series Capsule Polishing Machine

Model NO.
LFP-150A Series
Quantity:
The capsule polisher machine has the dual functions of capsule polishing and lifting. The entrance of the capsule polisher machine can be connected to any type of capsule filling machine. The outlet can be connected with the capsule sorting device and the metal inspection machine. Realize the continuous production mode of polishing, lifting, sorting and testing. The capsule polisher machine adopts a number of new technologies and human design concepts,

Function
The capsule polisher machine has the dual functions of polishing and lifting the capsule, leaving a high space for connecting subsequent equipment,
The entrance and exit of the machine can be adjusted in a 360 degree circle, which is convenient for production and saves space.
The capsule sorting device can automatically sort out the capsules with slight filling, empty shell, fragments and body cap separation
The capsule polisher machine adopts quick-installation connection structure, which makes the disassembly and installation of the machine more convenient and faster.
The capsule polisher machine contact with drugs are made of 316L material or materials that meet the requirements of modern drug production,
The brush on the main shaft is detachable for thorough cleaning, and the whole machine is cleaned without dead ends, which meets GMP requirements.



Technical parameters


Model

LFP-150B

LFP-150A

Applicable capsule model

00#, 0#, 1#, 2#, 3#, 4#

Maximum production efficiency

300000

600000

Entrance height730mm

Exit height

1050mm

1100mm

Power indicator

1PH 220V/110V 50Hz/60Hz 0.02KW

Compressed air

0.3m^3/min 0.3Mpa

Vacuuming

3.0m^3/min -0.014Mpa

Dimensions

740*510*1500mm

Product weight

75kg

80kg
