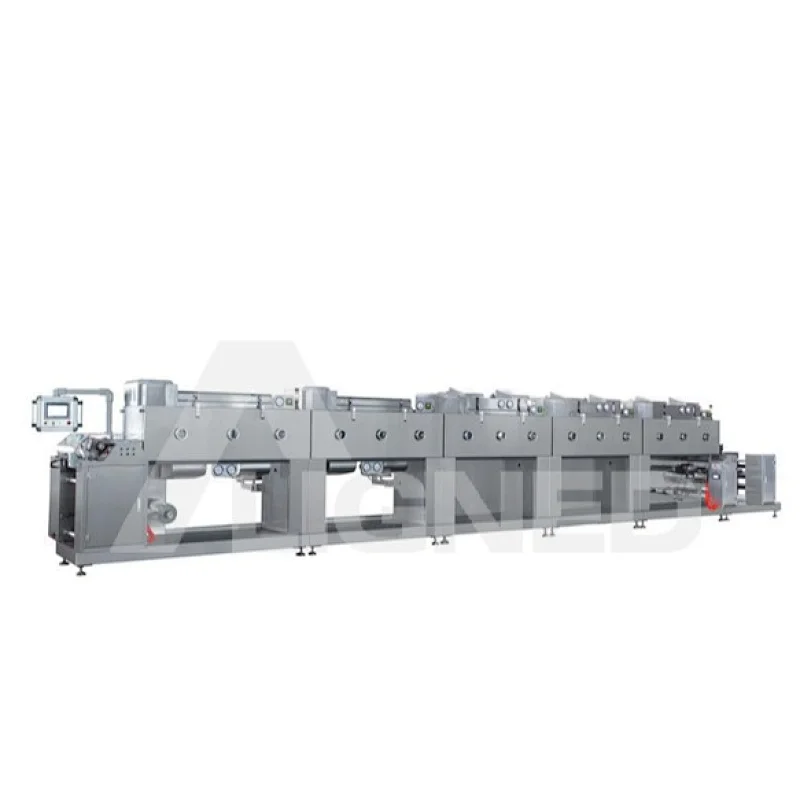

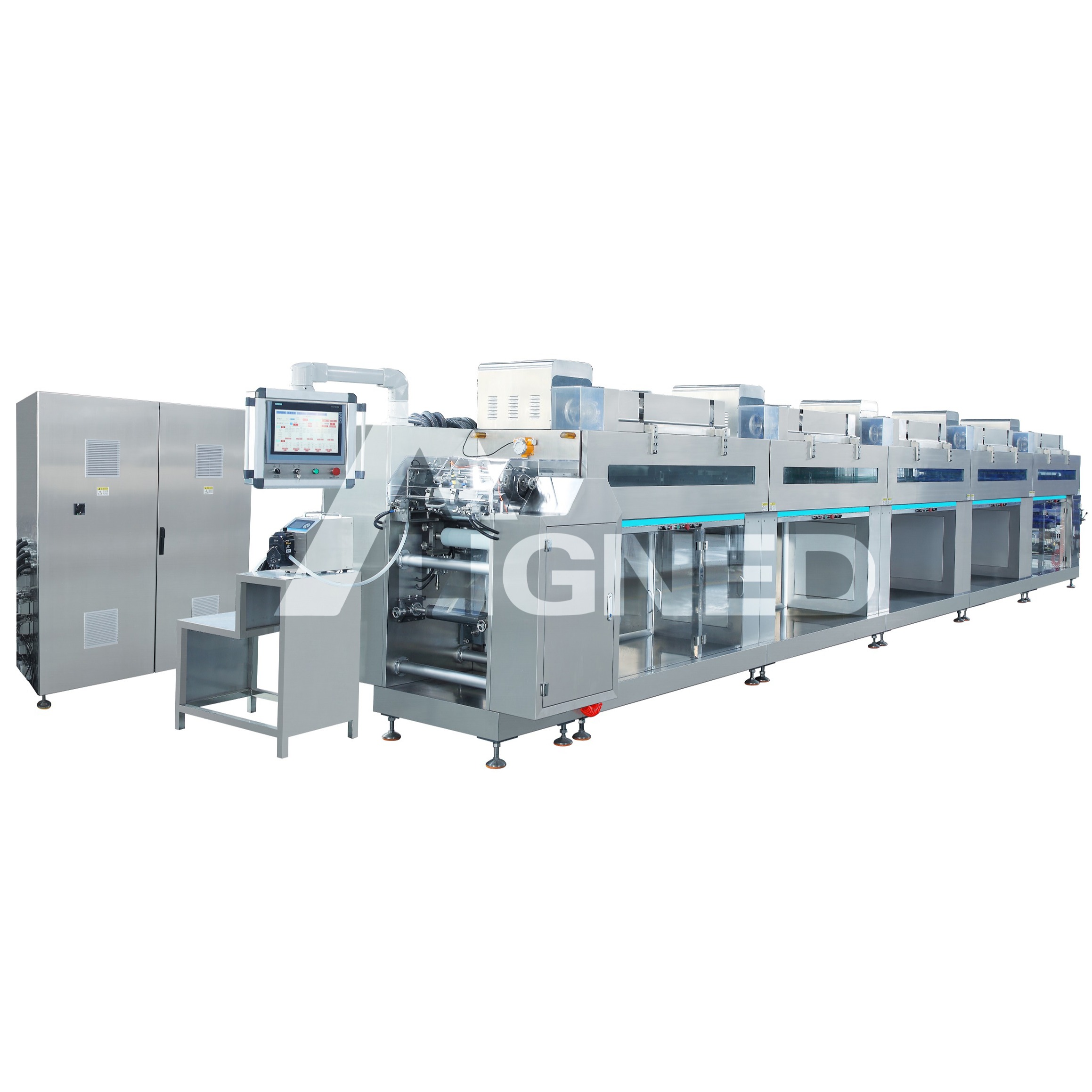

10 Meters Automatic Oral Thin Film Making Machine
10 Meters Automatic Oral Thin Film Making Machine

10 Meters Automatic Oral Thin Film Making Machine

Model NO.
OZM-340/10
Quantity:

Appliction:
The Solvent Casting Film Machine is specialized in making liquid materials into thin film. TheSolvent Casting Film Machine can be used to make quick-dissolvable oral films, transfilms, and mouth freshener strips, having wide application range in pharmaceutical field, food industry and etc.

The Solvent Casting Film Machine high dosing accuracy, quick-dissolving, fast release, no swallowing difficulty, high acceptance by elderly and children, small size convenient to carry.

Working Principle:
The working principle of the Solvent Casting Film Machine has evenly coated a layer of liquid material on the surface of the reel base roll. The solvent (moisture) is rapidly evaporated and dried through the drying channel. And winding up after cooling (or composite with another material). Then get the final products of the film (composite film).

Technical parameters

Project

Parameter

Model

OZM-340/10

Oven Length

10M

Max Casting Width

360mm

Roll Width of Film

400mm

Running Speed

0.1m-1.5m/min (depends on formula and process technology)

Temperature Control

30~80℃±2℃

Power Supply

380V 50/60HZ100KW

Overall Dimension

L×W×H: 14000*1620*2050mm

Weight

About 8000KG
