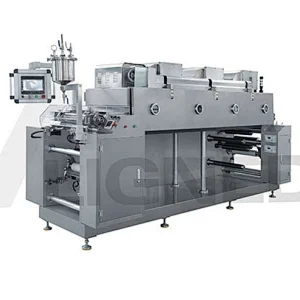

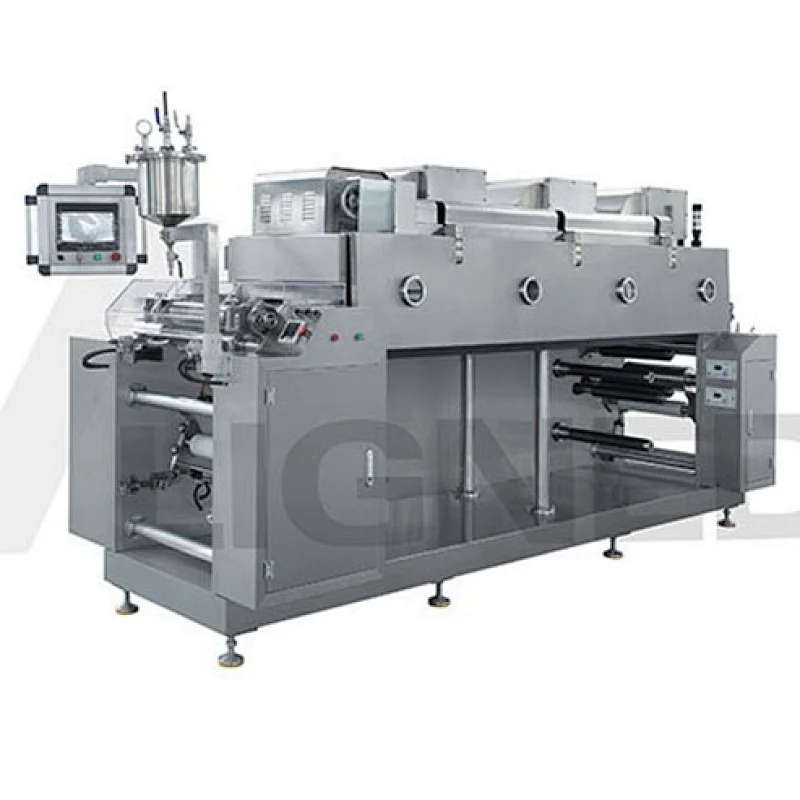

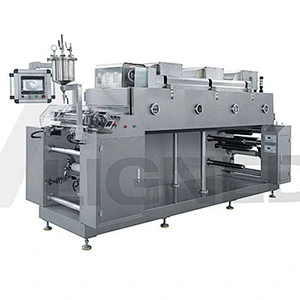

OZM Thin Film Making Machine
OZM Thin Film Making Machine
OZM Thin Film Making Machine

OZM Thin Film Making Machine

Model NO.
OZM-340
Quantity:

Application:
The Sentrip Orodispersible Film Machine is specialized in making liquid materials into thin film. The Sentrip Orodispersible Film Machine can be used to make quick-dissolvable oral films, transfilms, and mouth freshener strips, having wide application range in pharmaceutical field, food industry and etc.
The Sentrip Orodispersible Film Machine high dosing accuracy, quick-dissolving, fast release, no swallowing difficulty, high acceptance by elderly and children, small size convenient to carry.

Working Principle:
The working principle of the Sentrip Orodispersible Film Machine has evenly coated a layer of liquid material on the surface of the reel base roll. The solvent (moisture) is rapidly evaporated and dried through the drying channel. And winding up after cooling (or composite with another material). Then get the final products of the film (composite film).

Technical parameters

Project

Parameter

Max production width

360mm

Roll Width

400mm

Speed

0.1-1.5m/min (Depends on products formula and process)

Unwinding Diameter

≤Φ350mm

Winding Diameter

≤Φ350mm

Method of heat & dry

Heating by external stainless-steel heater, hot air circulation in centrifugal fan

Temperature control

30-80°C±2°C

Edge of reeling

±3.0mm

Power Supply

16Kw

Overall dimension

2980*1540*1900mm
