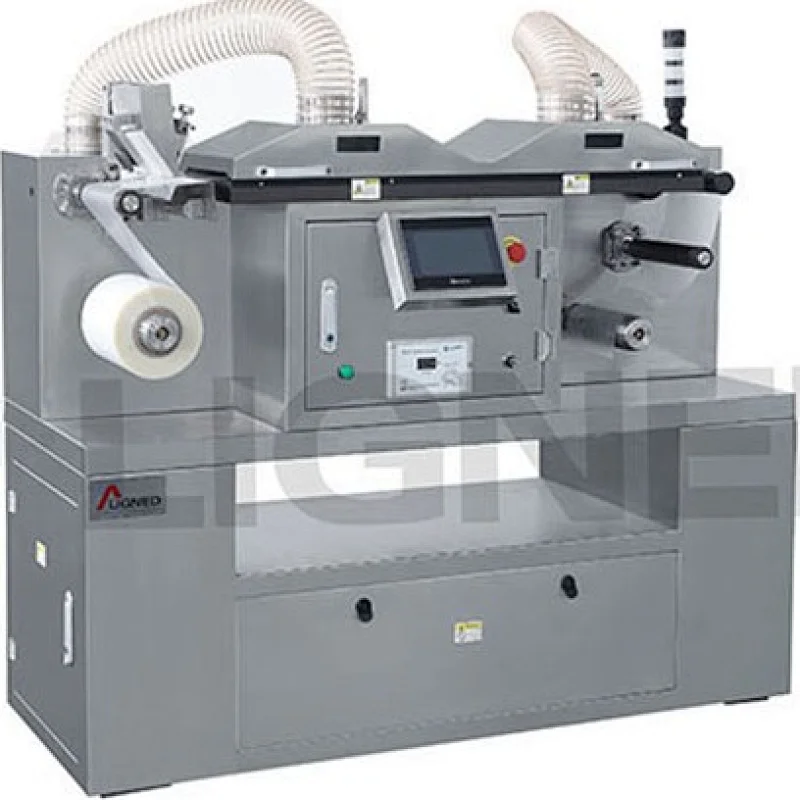

Application The lab type oral film making machine is specialized in making liquid materials into thin film. The lab type oral film making machine can be used to make quick-dissolvable oral films, transfilms, and mouth freshener strips, having wide application range in pharmaceutical field, food industry and etc.
Performance & features: The lab type oral film making machine adopts frequency conversion speed control and automatic control technology of machine, electric, light and gas, and innovates the design according to the"GMP"standard and the “UL” Safety Standard of the pharmaceutical industry. The lab type oral film making machine has the functions of film making, air drying and other features. All the data parameters are regulated by the PLC control panel. The model is for the new thin film drugs for continuous improvement, innovation and research and development, The lab type oral film making machine comprehensive performance to the leading domestic level, the technology to fill the gaps, and imported equipment more practical and economical.
Technical parameters
Effective film width
140mm
Roll width of film
210mm
Running Speed
0.1m‐1.5m/min (0.01m-1m/min depends on formula and process technology)
Unwinding diameter
≤φ350mm
Winding diameter
≤φ260mm
Method of heat & dry
Built-in bottom heating, centrifugal fan hot air exhaust
