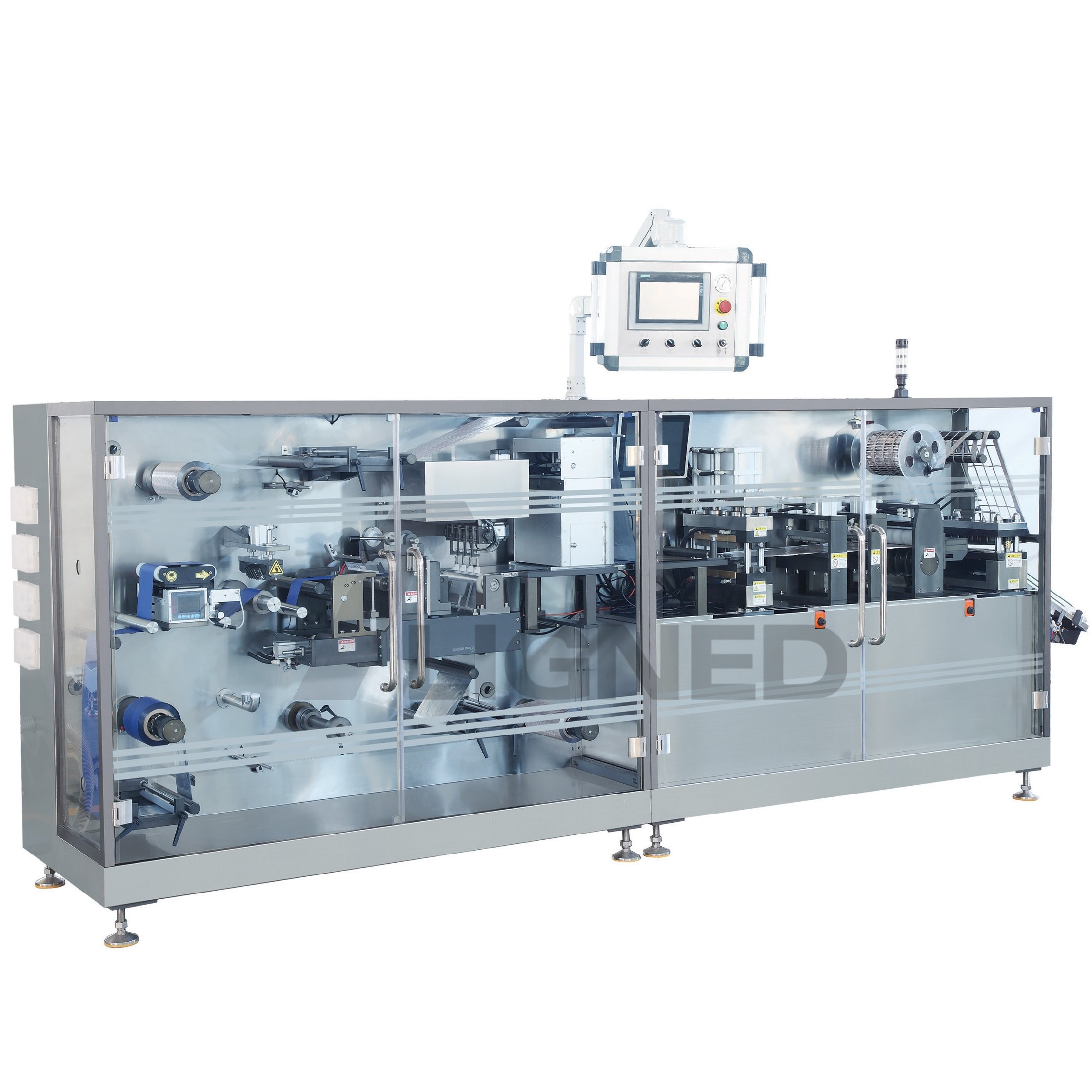

Automatic ODF Strip Pouch Packing Machine

Model NO.
KFM-230VI
Quantity:

The Automatic Sublingual Strip Machine cutting and crosscutting inter across the integration, the material can be precisely divided into a single sheet-like products, and then use the sucker to accurately locate and move the material to the packaging film, laminated, heat sealing, punching, the final output packaging complete product, to achieve the integration of the product line packaging.
The main motor of Automatic Sublingual Strip Machine using frequency control, according to the length of the trip and the size of the product to set the corresponding number of blanking.
The Automatic Sublingual Strip Machine using manipulator holds the traction mechanism, smooth operation, accurate synchronization, in the range can be arbitrarily designed plate size.Due to the use of contact-type version of the heating, reducing the heating power and temperature, save energy and increase the stability of plastic.
The Automatic Sublingual Strip Machine after finish packaging materials, pinch automatically alarm, stop, and equipped with emergency stop safety device to improve the operator in the debugging and mold for the safety.
The Automatic Sublingual Strip Machine contact material and other parts are made of stainless steel and non-toxic materials, meet the"GMP"requirements.
Our Automatic Sublingual Strip Machine has been updated to the fifth generation.

Technical parameters

Items

Parameter

Maximum punching speed (standard 45*70*0.1mm )

Aluminum / aluminum 5-40 times/min

Packing Film Width

200- 260 mm

Materials Width

100-140 mm

Heat sealing heating power

4KW

Total power

Three-phase five lines 380V 50/60HZ, 8.3KW

Air pump volume flow

20.25m3/min

Packing material

Heat-seal composite film thickness 0.03-0.05mm

Overall dimensions ( L*W*H )

4400*9280*2000mm
