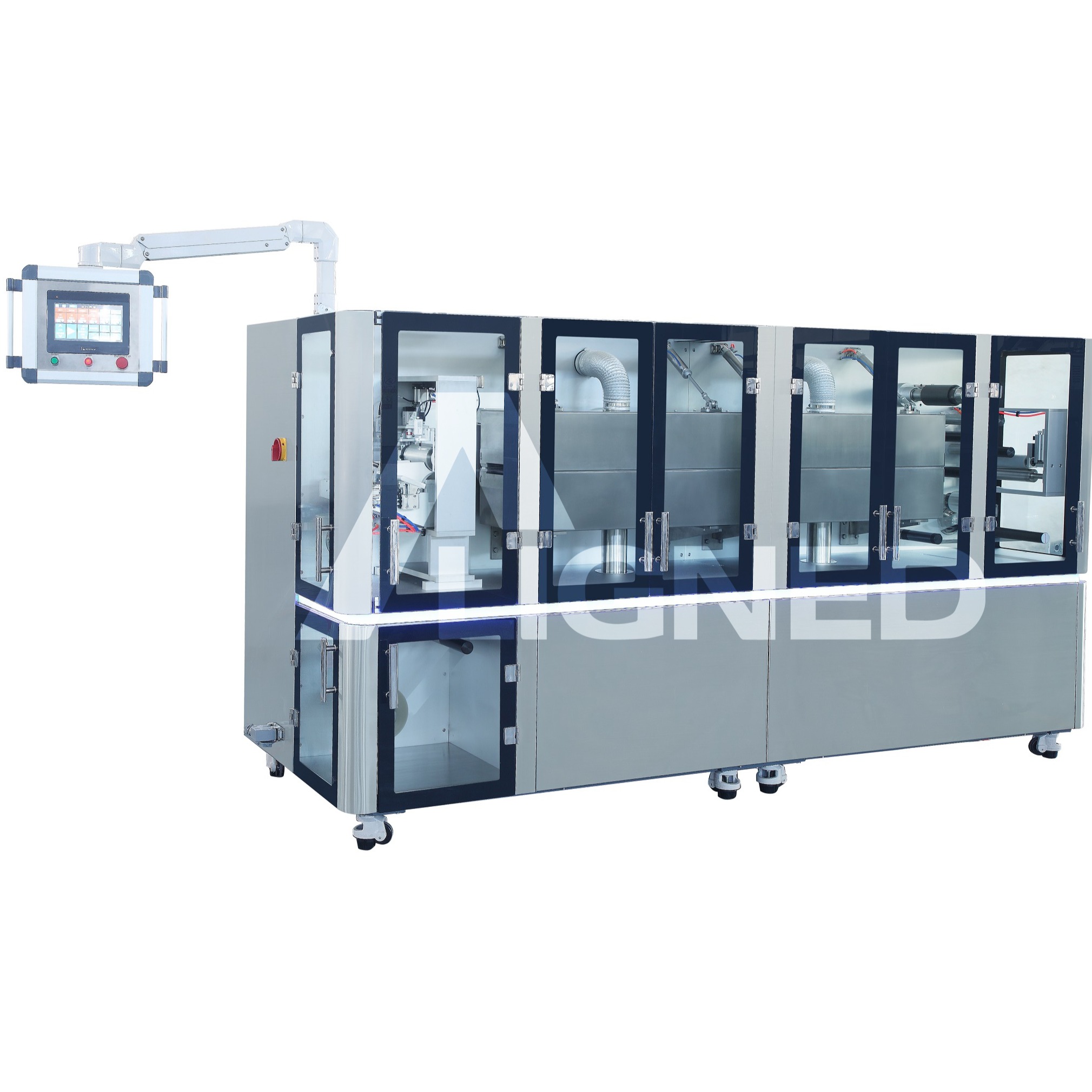

Model OZM-120 oral dissolving film making machine (lab type)

Model NO.
Model OZM-120
Quantity:

The Mouth Dissolving Film Machine (lab type) is a special equipment that evenly spreads the liquid material on the bottom film to make a thinner film material, and can be equipped with functions such as lamination and slitting.

The lab type Mouth Dissolving Film Machine can be used in pharmaceutical, cosmetic or food industry product manufacturing. If you want to produce patches, oral soluble film strips, mucosal adhesives, masks or any other coatings, our Mouth Dissolving Film Machine always work reliably to achieve high precision coatings. Even complex products whose residual solvent levels must meet strict limits can be manufactured using our lab type oral dissolving film making machine.

This Mouth Dissolving Film Machine adopts the frequency converter to speed regulation,designed with intergrated automatic control of main machine, electricity, compressed air which strictly meet GMP standard.

The Mouth Dissolving Film Machine with its function of film making and drying, controlled by PLC panels. All the technical support, and afterservices is available including commissioning in user site.


Technical Parameters

ModelOZM-120
Effective production width120mm
Roll width140mm
Mechanical speed0.1-1.5m/min
(Depends on actual material and status)
Unwinding diameter≤φ150mm
Rewinding diameter≤φ150mm
Heating drying methodPlate heating, centrifugal fan hot air exhaust
Temperature controlRoom temperature:
-100℃    ±3℃
Reel edge±3.0mm
Total power5KW
Dimensions1900*800*800mm
Weight300Kg
Voltage220V
