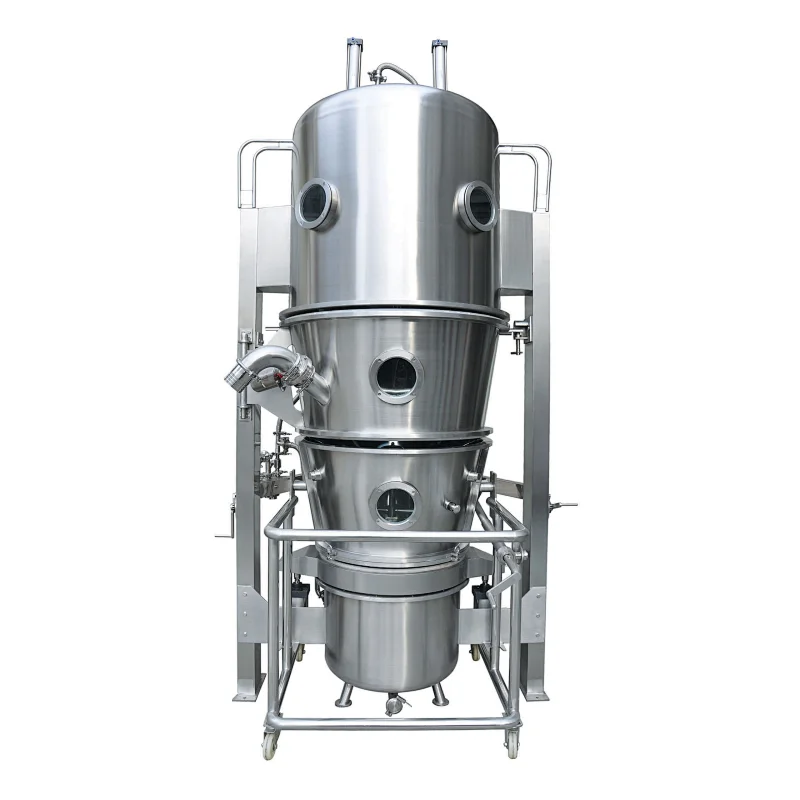

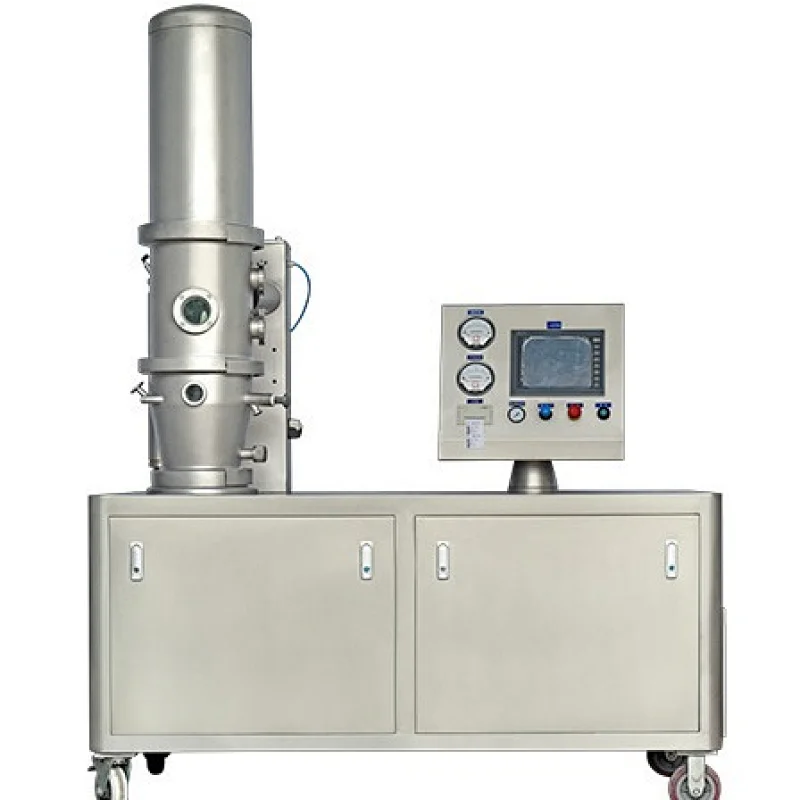

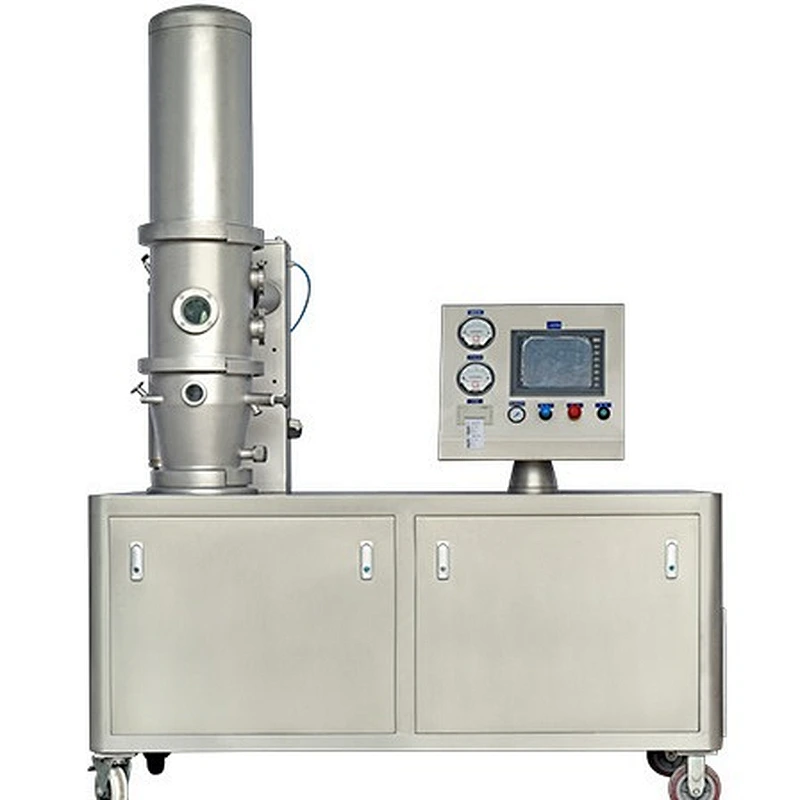

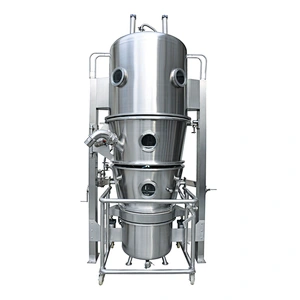

DPL Series Multi-Functional Fluid Ded Processor
DPL Series Multi-Functional Fluid Ded Processor
granulator dryer, fluid bed granulation, fluidized bed granulator
DPL Series Multi-Functional Fluid Ded Processor
granulator dryer, fluid bed granulation, fluidized bed granulator

DPL Series Multi-Functional Fluid Ded Processor

Model NO.
DPL Series
Quantity:
The fluid bed processor allow you to dry, granulate and coat more efficiently with one and the same product container. With an ideal air distribution and an efficient filter system, you can achieve maximum drying efficiency at minimum product losses. Heat transfer and drying are more homogenous and faster, with a high flexibility in batch size. Through the uniform fluidization and the nozzles positioned in the bottom, a perfect liquid distribution is obtained, creating granules with a unimodal particle size distribution. The same set-up can be used for pellet and particle coating resulting in much faster and more homogenous layering.


Working principle
Under the action of the induced draft fan, the purified, dehumidified and heated air passes through the distribution plate at the bottom of the fluidized bed to blow the material into a fluidized state, increasing the contact between the material and the air so that the material is quickly and gently dried;The binder sprayed on the top makes the powder material aggregate into granules through a liquid bridge; the coating solution is sprayed from the bottom of the fluidized bed onto the surface of the pellet core through the bottom spray for coating and drying. The powder material is made into strong pellets through the side spray adhesive liquid combined with the centrifugal movement of the turntable.

Feature
● Modular design, the machine is equipped with top, bottom, and side spray systems, which can realize functions such as drying, granulating, coating, and pelletizing.
● The machine has a compact design, is easy to disassemble and clean, has no sanitary corners, and meets the requirements of cGMP production specifications.
● The temperature control is accurate and the fluctuation range is small; the double chamber shakes the bag to clean the powder to ensure the continuous fluidization state.
● Graphical interface and PLC automatic control are adopted, the operation is simple, all operations can be completed according to the set parameters, and the process data can be recorded and printed for analysis.
● The specially designed air distribution plate makes the air distribution more even, better fluidization, more stable product quality and good reproducibility.

Technical parameters

Model

DPL-ⅡA

DPL3/5

Material Container

Top spray (L)9

18.5

Bottom-spray(L)5

10

Side spray (L)7.5

9

Capacity

Top spray(Kg/batch)0.5-3

1.5-5

Bottom-spray(Kg/batch)0.25-2

0.5-3

Side spray (Kg/batch)0.5-2

1-2.5

Compressed Air

Pressure Mpa0.4-0.6

0.4-0.6

Onsumption M³/min0.4

0.5

Blower Power Kw

4

5.5

Heating Power Kw

4.5

12

Overall Dimensions

L(mm)1800

2250

W(mm)860

1050

H(mm)2385

2850

diameter(mm)300

400
