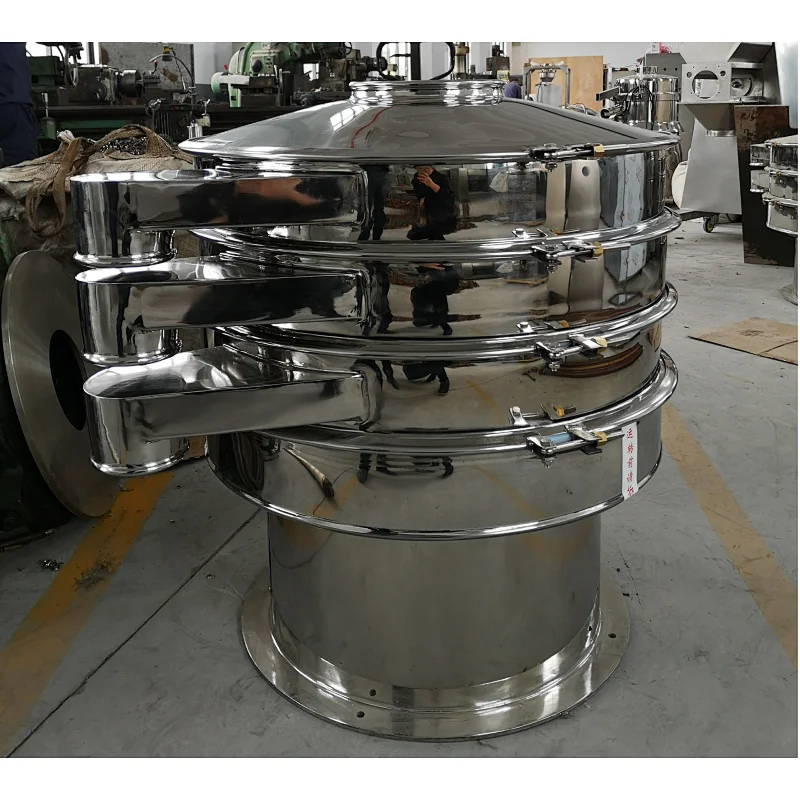

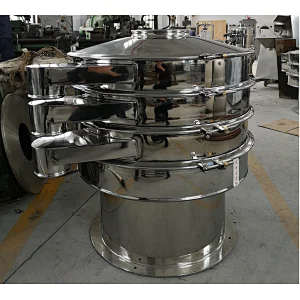

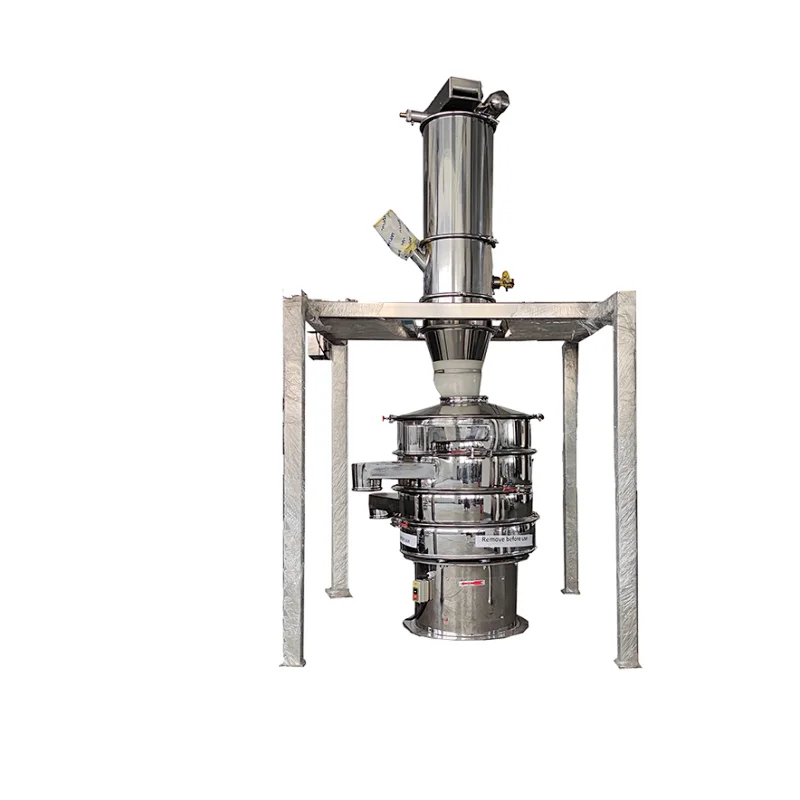

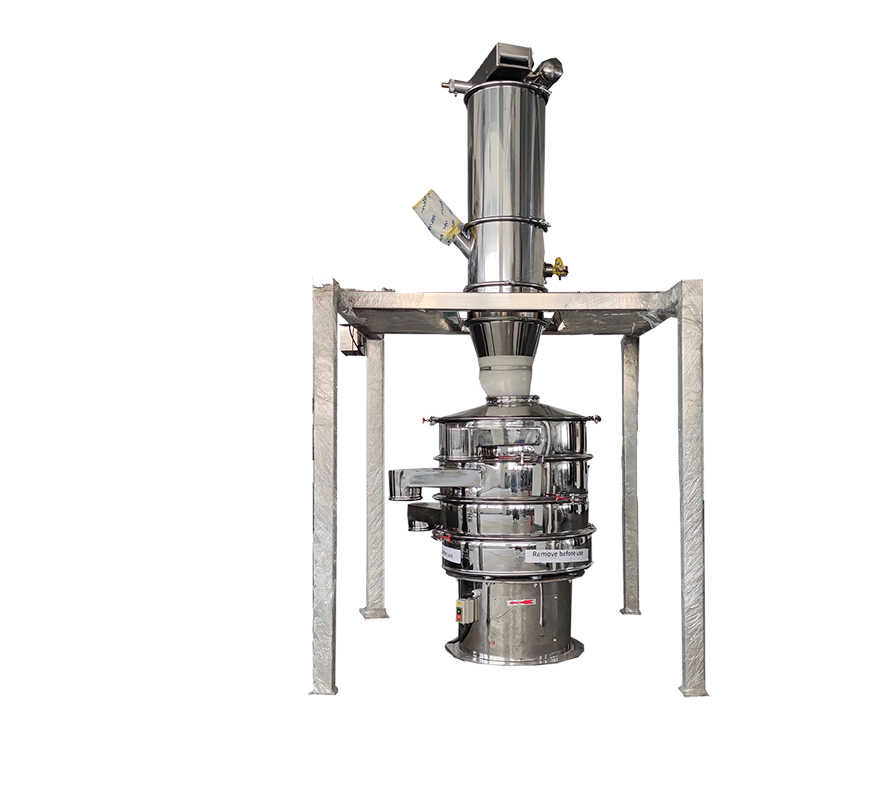

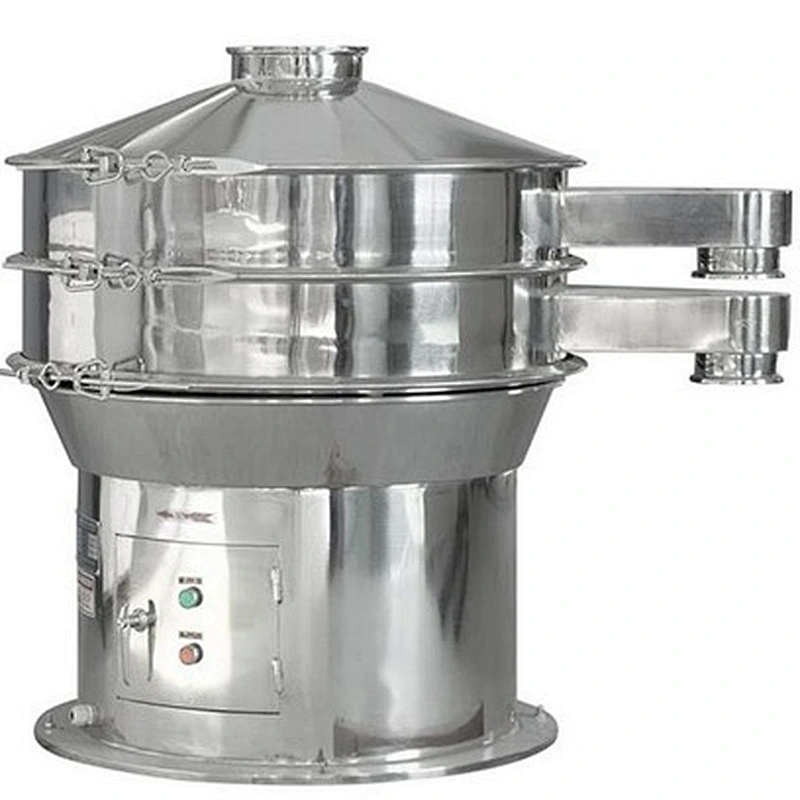

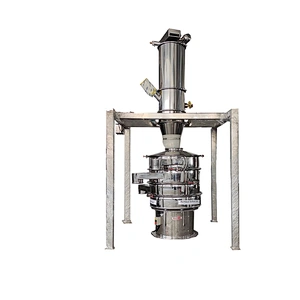

ZS Series High Efficient Screening Machine

Model NO.
ZS Series
Quantity:

The high-efficiency vibrating sieve machine is composed of a vertical vibration motor as a whole to form an oscillation system. There are eccentric excitation weights at the upper and lower ends of the motor spindle. The eccentric excitation weight at the upper end is fixed with the main shaft of the motor, and the eccentric excitation weight at the lower end can be adjusted to different phase angles (0-90°), so as to achieve the characteristics of screening different raw materials. The material is not only subjected to a large centrifugal force, but also to the force from the vertical direction, so that the material forms a compound motion and produces a good screening effect.


Function

1. Dust-free operation.
2. Internally equipped with vibrating ball to improve the screening efficiency.
3. A rubber bowl is installed under the machine base to prevent vertical and horizontal vibration and ensure the smooth operation of the whole machine.
4. Single-layer and double-layer sieve tray.(Optional)
5. Touch screen control system.(Optional)



Technical parameters

ModelZS-600ZS-800ZS-1000ZS-1200ZS-1500
Capacity(kg/h)80-300150-2000200-2900300-4500500-5000
Number of mesh(Mesh)12-20012-20012-20012-20012-200
Power(kw)0.550.751.52.23
Vibration frequency(time/min)15001500150015001500
Overall Dimension(mm)680*600*11001100*950*11501330*1100*12801380*1500*13201800*1800*1320
Weight(kg)280320420600780
