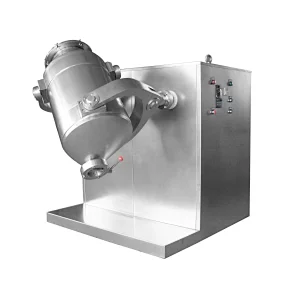

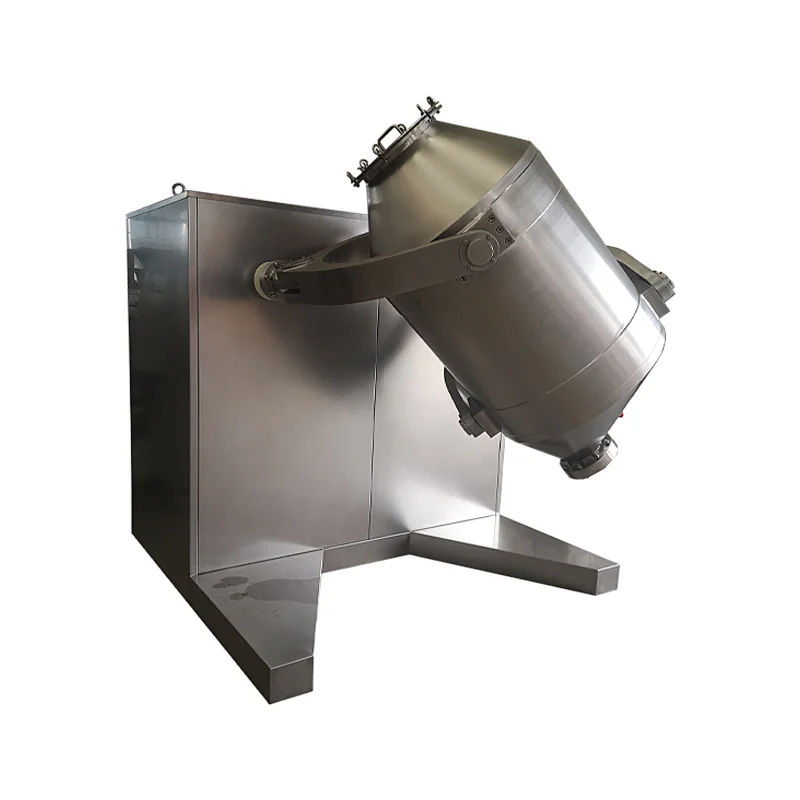

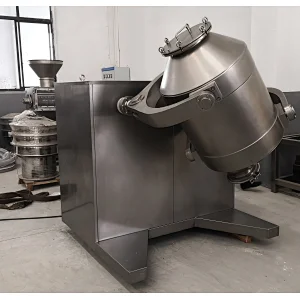

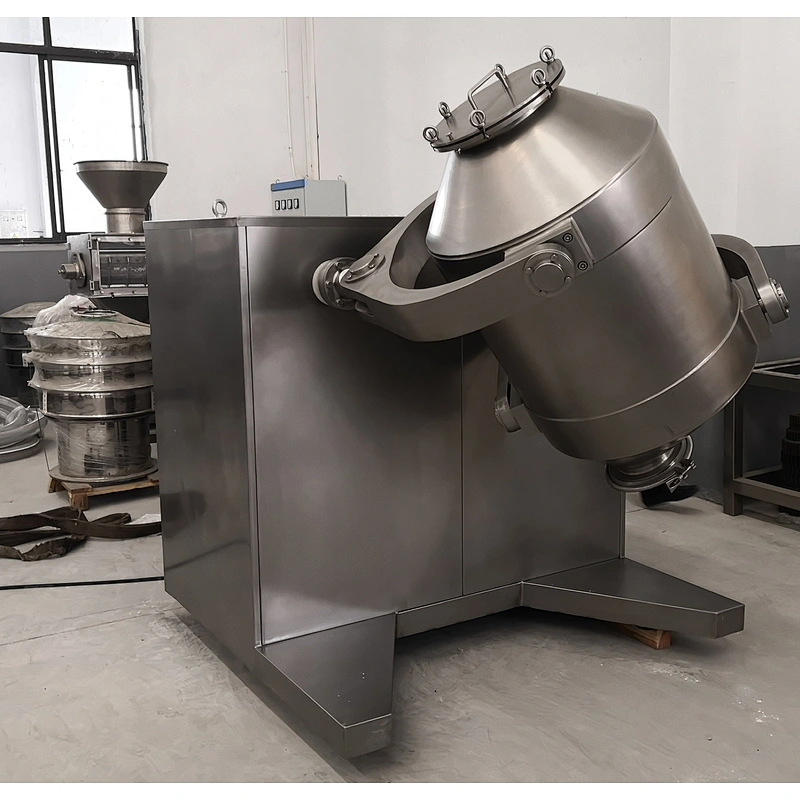

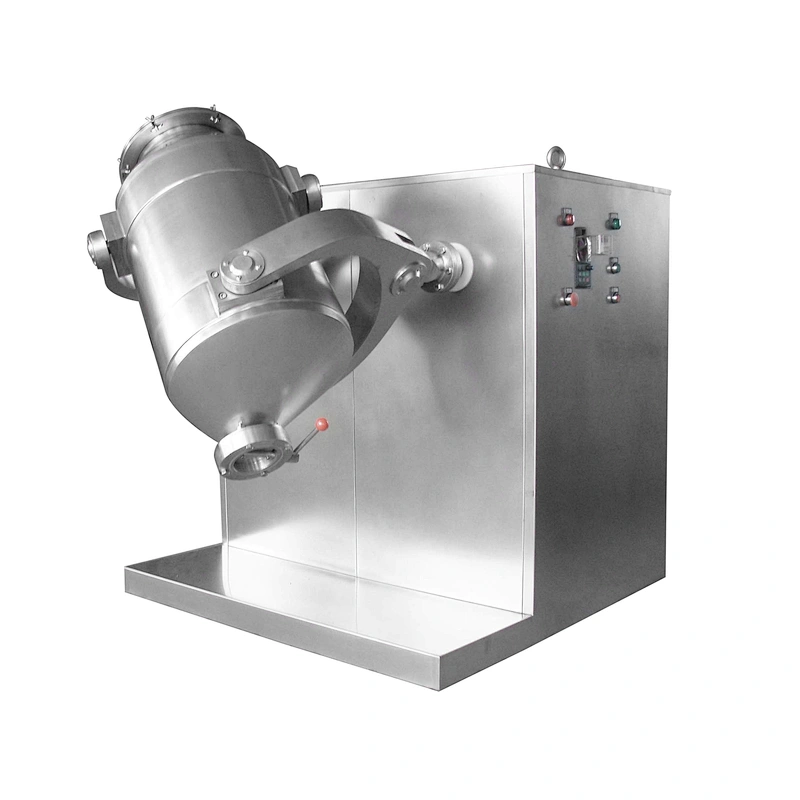

HD Series Multi-Directional Motion Mixer

Model NO.
HD Series
Quantity:
Three-dimensional powder mixing machine consists of machine base,transmission system, electrical control system, multi-directional motion mechanism, mixing cylinder and other components. This powder mixing machine is a mechanical device that uses mechanical force and gravity to uniformly mix two or more materials,suitable for high uniformity mixing of powdery and granular materials in the pharmaceutical, chemical, food and other industries. Driven by the driving shaft, the mixing cylinder performs compound motions such as translation, rotation and tumbling, so as to promote the three-dimensional complex movement of the material along the cylinder, so as to realize the mutual flow, diffusion, accumulation and doping of various materials, so as to achieve The purpose of uniform mixing. At the same time, it avoids the material gravity segregation and accumulation caused by the centrifugal force of the general mixer, and there is no dead angle in the mixing, which can effectively ensure the quality of the mixed material.

Function:

1.The mixing cylinder moves in multiple directions, and the material has no centrifugal force, no specific gravity segregation, stratification and accumulation.
2.All parts of the cylinder are arc transitions, which are precisely polished.
3.The cantilevered double helical shaft has no bottom bearing, which avoids the failure caused by the powder infiltration of the bottom bearing.
4.The cantilever shaft is cast in one piece without welding, which avoids the phenomenon of broken shaft and improves the safety.
5.The cone of the discharge end of the mixing cylinder is eccentrically designed, and the discharge has no dead angle, no residue, easy to clean, and meets the requirements of GMP.
6.Thepowder mixing machine can start at low speed, run smoothly at the rated speed, and stop at a fixed speed at a reduced speed.
7.The automatic stop position is the best position for feeding and discharging materials.



Technical parameters

ModelHD-10HD-25HD-50HD-100HD-200HD-400HD-600HD-800HD-1000
Barrel volume(L)1025501002004006008001000
Max loading volume(L)7173570140280420560700
Spindle speed(r/min)0-200-150-150-150-150-120-110-100-10
Motor power(kw)0.550.751.52.2345.57.57.5
Overall Dimension(mm)640*620*550900*900*75970*950*1201200*1600*15001400*1800*16001700*2100*18502100*2400*22502200*2500*23002400*2800*2550
Weight(kg)1201503005008001200120020002500
