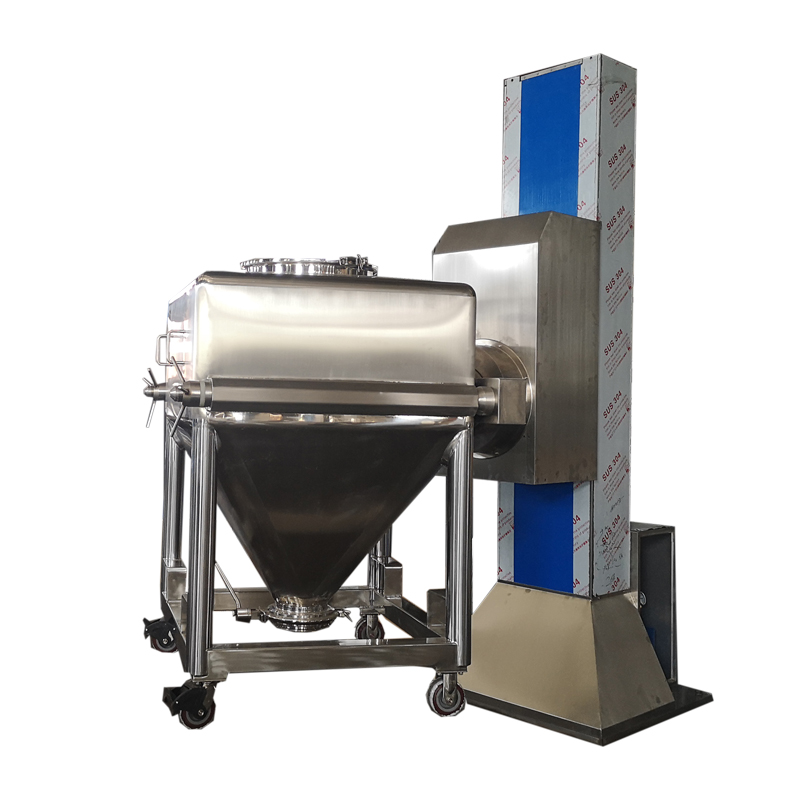

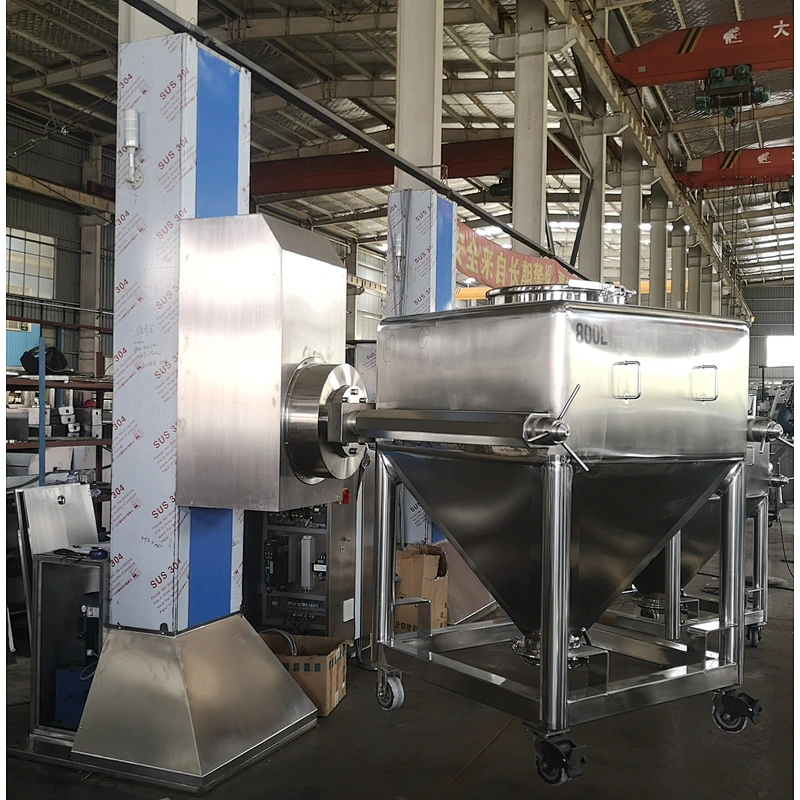

HTD Series Single Column Bin Blender
HTD Series Single Column Bin Blender
mixing machine, mixer bin,mixer machine
HTD Series Single Column Bin Blender
mixing machine, mixer bin,mixer machine

HTD Series Single Column Bin Blender

Model NO.
HTD Series
Quantity:
The mixing machine has the functions of automatic lifting, mixing, and lowering. Equipped with one bin mixer and multiple mixing bins of different specifications, The mixing machine can meet the mixing requirements of multiple varieties and different batches. The mixing machine is an ideal equipment for total mixing in pharmaceutical factories. At the same time, The mixing machine is widely used in pharmaceutical, chemical, food and other industries.

Feature
The mixing machine is a new model successfully developed by our company that has extensively absorbed and digested foreign advanced technology and combined with national conditions. After the mixing is completed, the hopper can continue to be raised to the height of the technological requirements for easy discharging. The mixing machine has reasonable structure, stable performance and convenient operation. No dead ends, no exposed screws. The rotating body (mixing bin) forms an angle of 30° with the axis of rotation. The material in the mixing bin turns with the rotating body and moves tangentially along the wall at the same time, resulting in strong turnover and high-speed tangential movement to achieve the best mixing effect. The mixing machine adopts PLC fully automatic control, and is equipped with an infrared safety device and a discharge valve disc with an anti-misoperation device to ensure complete production. Materials can pass through different process stages in the same container without frequent transfer and feeding procedures. Effectively control dust and cross-contamination, reduce material loss, control material stratification, optimize the production process, and fully comply with the GMP for pharmaceutical production.



Technical parameters


ModelNet load
(L)
Mixing speed
(rpm)
Total power(Kw)Machine size (l * W * H)(mm)Weight(T)
HTD-100803-202.22200*1160*20000.8
HTD-2001603-202.62250*1350*21000.9
HTD-3002403-2032500*1420*22001
HTD-4003203-204.42650*1450*23001.2
HTD-5004003-154.42800*1550*24001.4
HTD-6004803-155.22900*1650*24001.7
HTD-8006403-155.23000*1750*25002
HTD-10008003-156.23150*1850*27002.2
