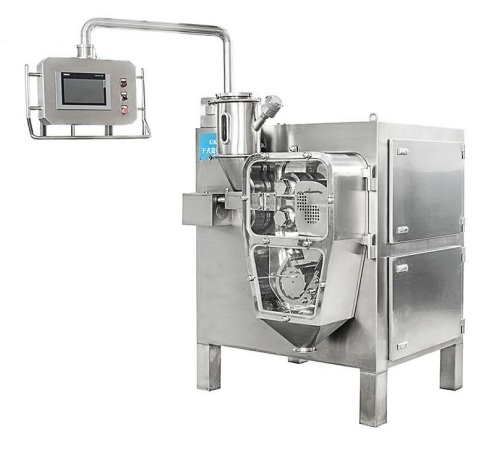

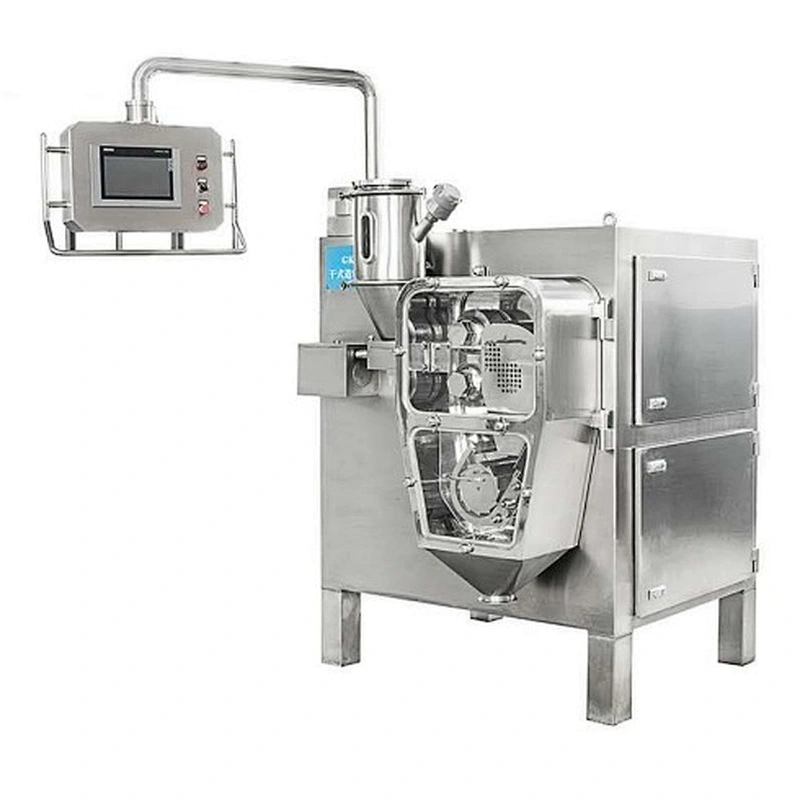

Dry Roll Compact Granulator

Model NO.
Model RC-40
Quantity:
RC 40 roll compactor dry granulator is our advanced model which can directly granulating the mixed powers with intergrated structure with extrusion, crushing and granulating functions. The roll compactor dry granulator uses the latest pressure roller control technology by adjusting the physical fluctuations between different materials and different batches of the same materials to achieve the accurate adjustment for the process parameters (such as processing capacity, flake density, pressure roller pressure, speed, etc. ) and get the high-quality particles. The roll compactor dry granulator with advantages of small structure, simple process, easy to clean and disassembled,It is widely used in the pharmaceutical industry.

The roll compactor dry granulator designed particular extrusion apparatus ensure the constant pressure  and uniformed thickness sheet of material, the nip automatically adjusted to meet the requirements of the finished granulation and continuity of production;


Technical parameters

Model RC-40
Production5~40 kg/h depending different formula)
Pressure roller0~25 MPa
Roller speed0~40 r/min±10% frequency control
Conveying speed0~160r/min±10% frequency control
Grinding  speed0~207 r/min±10%frequency control
Sieve mesh10;12;14;16mesh changeable
Power frequency50Hz±0.5Hz
